LCT216-100 | Digital timer/tachometer/counter | transistor output. | Dwyer
Digital timer/tachometer/counter, transistor output.
Documents and manuals
Dwyer LCT216-100 Documents
Overview
Details for LCT216-100
Digital timer/tachometer/counter | transistor output.

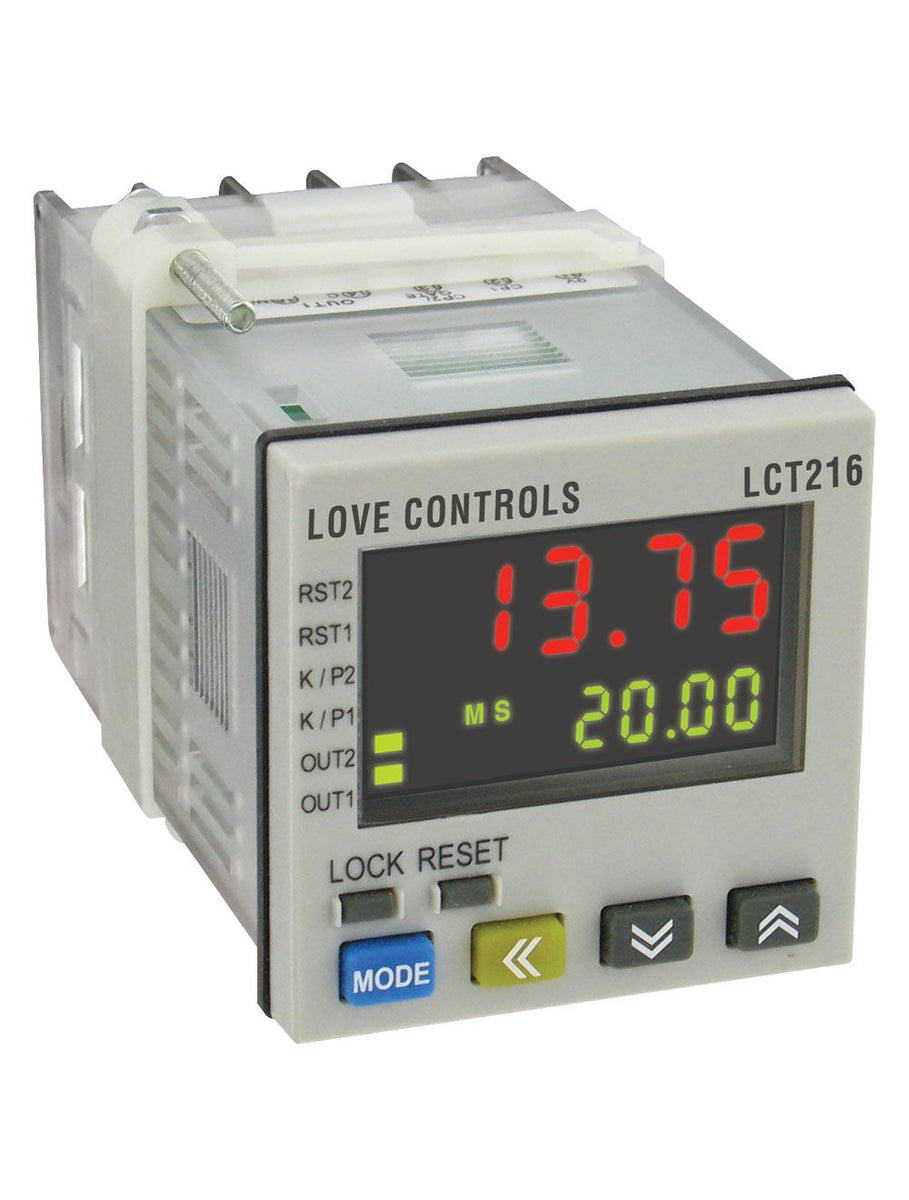

SERIES LCT216 DIGITAL TIMER / TACHOMETER / COUNTER
The Series LCT216 Digital Timer / Tachometer / Counter combines a versatile timer, counter, and tachometer in one device. The bright, easy-to-read display shows both the desired set point and the current process value as well as the operating mode that the control is functioning in. The fourteen pre-programmed timer functions are easy to set up and cover most applications. The counting functions include one stage or two-stage counting along with batch, total, or dual counting modes. The Series LCT216 can also be used as a tachometer to measure rotational speeds. For quick setup, many of the programming parameters can be set with external dip switches located on the side of the unit.
Product Applications
- Industrial ovens
- Batch counting in conveyor systems
- Silk screening equipment
- Fourteen pre-programmed timer functions
- One stage, two-stage, batch, total, and dual counting modes
Specifications
- Series
- LCT216 DIGITAL TIMER / TACHOMETER / COUNTER
- Category/Type
- Process Control
- Type
- Timers
- Series
- LCT216 DIGITAL TIMER / TACHOMETER / COUNTER
- Operating Temperature Ranges
- 32 to 122°F (0 to 50°C).
- Humidity Conditions
- 35 to 85% RH (non-condensing).
- Control Output Ratings
- (Out 1) Relay: SPST 5A at 250 VAC; Transistor: NPN Open collector 100 mA / 30 VDC residual voltage = 1.5 VDC max; (Out 2) Relay: SPST 5A at 250 VAC; Transistor: NPN Open collector 100 mA / 30 VDC residual voltage = 1.5 VDC max.
- Reset Time
- 0.001 s. minimum.
- Inputs
- Dry contact; PNP; or NPN.
- Timing Functions
- 14 pre-programmed timing functions.
- Power Requirements
- 100 to 240 VAC 50 / 60 Hz.
- Power Consumption
- Less than 10 VA.
- Internal Power Supply
- 12 VDC ±10%; 100 mA.
- Display
- Two-line 6 digit negative transmissive LCD display.
- Weight
- 4 oz (114 g).
- Agency Approvals
- CE; UL.
