Documents: L8-WP

Instruction Manual Series L8 Catalog Page More Info

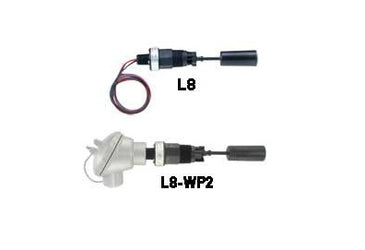

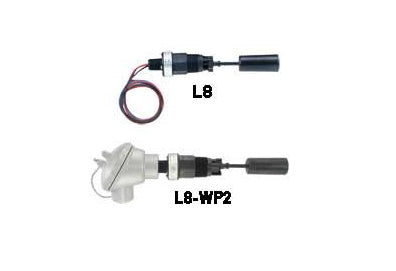

L8-WP | Liquid level switch with weatherproof enclosure (phenylpolioxide). | Dwyer

Liquid level switch with weatherproof enclosure (phenylpolioxide).

Brand: DwyerSKU: L8-WP

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to L8-WP

Jump to: Overview & Specifications Reviews

Overview Details for L8-WP

See catalog product page for full listing

Liquid level switch with weatherproof enclosure (phenylpolioxide).

Series L8 FLOTECT® Liquid Level Switch

Low Cost, Leak Proof Body, Excellent Chemical Resistance

The Series L8 Flotect® Liquid Level Switch features a leak proof body and float constructed from tough, durable polyphenylene sulfide which has excellent chemical resistance. Because the liquid level snap switch is magnetically actuated, there is no direct mechanical linkage to leak or fail, assuring longer life and decreased maintenance costs. This inexpensive unit is ideal for liquid level alarm, indication or control. Installation is quick and easy - simply install in a horizontal position with the index arrow pointing down.

The L8 Flotect® Liquid Level Control is UL recognized as an industrial motor controller per UL standard 508, suitable for mounting in a protected environment. This lightweight switch can be used in numerous chemical processes, industrial systems and similar applications where process conditions are compatible with polyphenylene sulfide, Ceramic 8 and 316 stainless steel. This liquid level switch provides accurate setpoint control of liquids with specific gravities as low as 0.6. This compact and reliable control is designed to handle temperatures up to 212°F (100°C) and pressures to 150 psig (10 bar).

Product Applications

Environmental control
Waste water
Scrubber systems
Holding tanks
Cooling towers
Chemical/petroleum processing
Plating and washing tanks
Sewage treatment
Car washes
Remediation systems
Thermal storage systems
HVAC and building automation systems

Excellent chemical resistance with float constructed from durable polyphenylene sulfide and leak-proof body
Longer life and decreased maintenance costs with liquid level snap switch, which is magnetically actuated with no direct mechanical linkage to leak or fail
Quick and easy installation by simple placement of the unit in a horizontal position with the index arrow pointing down
Suitable for mounting in a protected environment with UL recognition as an industrial motor controller per UL standard 508

Specifications

Series: L8 FLOTECT® Liquid Level Switch
Category/Type: Level
Type: Level Switches
Series: L8 FLOTECT® Liquid Level Switch
Service: Compatible liquids.
Wetted Materials: Float and Body: Polyphenylene sulfide (PPS); Pin and spring: 316 SS or Inconel® Alloy; Magnet: Ceramic 8.
Temperature Limit: 212°F (100°C).
Pressure Limit: 150 psig (10.34 bar).
Enclosure Rating: General purpose. WP/WP2 options are weatherproof.
Switch Type: SPDT snap switch. MV option is a SPDT gold contact snap switch.
Electrical Rating: 5 A @ 125/250 VAC; 5 A resistive; 3 A inductive @ 30 VDC. MV option: 1 A @ 125 VAC; 1 A resistive; 0.5 A inductive @ 30 VDC.
Electrical Connections: 18 AWG; 18" (460 mm) long.
Conduit Connection: 1/2" male NPT; 1/2" female NPT on WP and WP2.
Process Connection: 1" male NPT.
Mounting Orientation: Horizontal with index arrow pointing down.
Specific Gravity: 0.6 minimum.
Weight: 5 oz (0.142 g).
Agency Approvals: CE; cURus.
