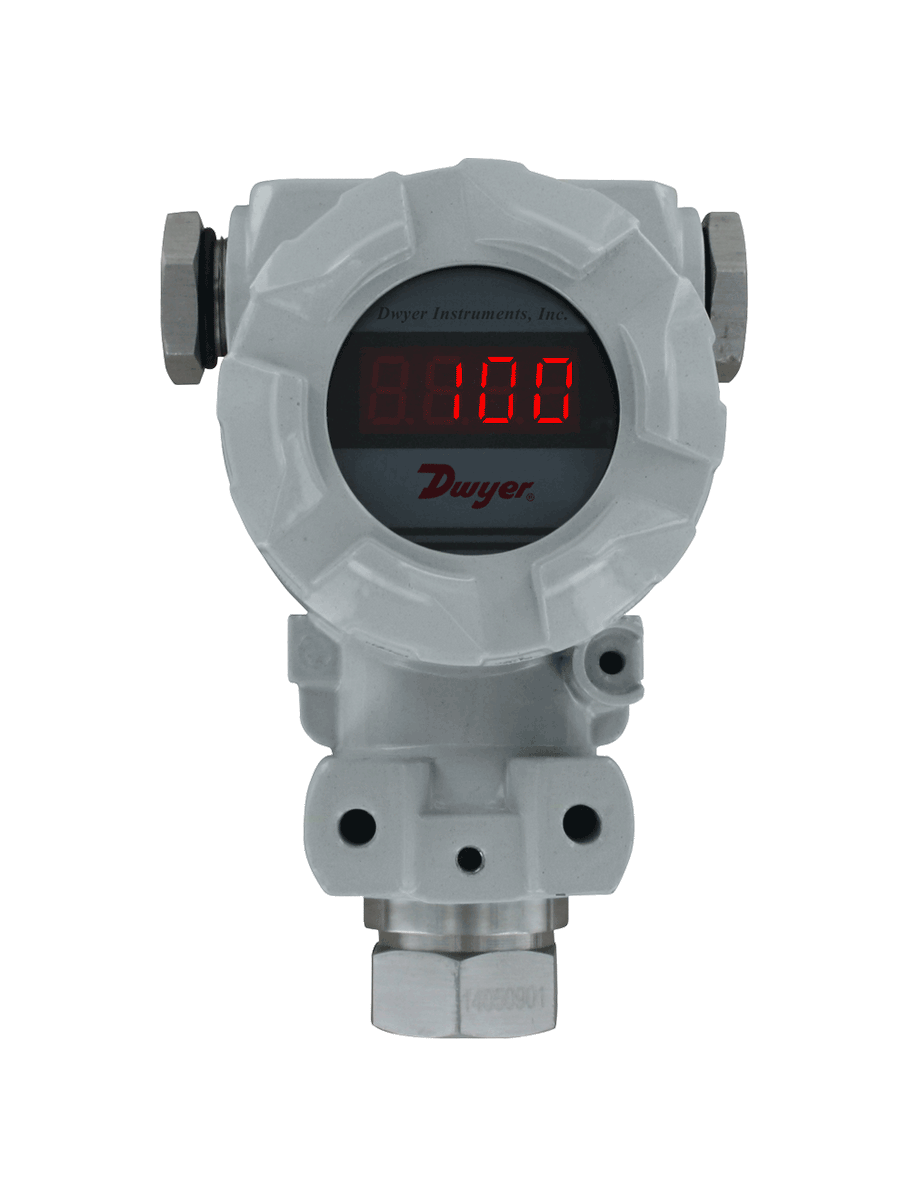

IWP-05 | Industrial weatherproof pressure transmitter | 500 psig | Dwyer
Industrial weatherproof pressure transmitter, 500 psig
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to IWP-05
Overview Details for IWP-05
See catalog product page for full listing
Industrial weatherproof pressure transmitter | 500 psig
SERIES IWP INDUSTRIAL WEATHERPROOF PRESSURE TRANSMITTER
Exceptional Reliability for Harsh Environments
The Series IWP Pressure Transmitter provides an exceptional value solution to pressure measurement in industrial conditions requiring high-performance, stability and long service life. The precise operation under dirty and wet conditions, make the Series IWP an ideal choice for petroleum, chemical and metallurgical industry applications.
Calibration Option available under Accessories.
Product Applications
- Harsh industrial environments
- Process
- Chemical
- Petroleum
- Metallurgical
- Rugged, weather-proof design supports use in harsh environments
- 4 digit LED display and 4 to 20 mA output
- Durable cast-aluminum shell securely protects the high-quality circuitry from harsh industrial surroundings
- Long-term stability and reliability in environmentally challenging conditions
- Built for industrial processes such as petroleum, chemical and metallurgy but at a value price-point compared to other similar products.
Specifications
- Series
- IWP INDUSTRIAL WEATHERPROOF PRESSURE TRANSMITTER
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- IWP INDUSTRIAL WEATHERPROOF PRESSURE TRANSMITTER
- Service
- Gases and liquids compatible with wetted materials.
- Wetted Materials
- 304 and 316 stainless steel.
- Accuracy
- 0.5% FS.
- Stability
- <0.2% FS per year.
- Temperature Limits
- -22 to 203°F (-30 to 95°C).
- Compensated Temperature Limits
- 32 to 158°F (0 to 70°C).
- Pressure Limits
- 1.5 x pressure range.
- Temperature Coefficient
- 0.3% F.S. per 10°C.
- Power Requirements
- 12 to 36 VDC.
- Output Signal
- 4 to 20mA.
- Loop Resistance
- 1200 Ω max.
- Electrical Conduit Connection
- 1/2" female NPT.
- Process Connection
- 1/2" female NPT.
- Enclosure Rating
- IP65.
- Agency Approvals
- CE.
