Documents: IEFB-LN-CND-R10-LCD

Quick Start Guide Instruction Manual Series IEFB Catalog Page IEFB More Info

IEFB-LN-CND-R10-LCD | Insertion Electromagnetic energy system | 4 to 10" (100 to 250MM) pipe | 1% FS | 1" male NPT process connections | 1/2" female NPT | (2) 10' (3 m) PT temperature sensors with hot-tap thermowells | LCD display | Dwyer

Insertion Electromagnetic energy system, 4 to 10" (100 to 250MM) pipe, 1% FS, 1" male NPT process connections, 1/2" female NPT, (2) 10' (3 m) PT temperature sensors with hot-tap thermowells, LCD display

Brand: DwyerSKU: IEFB-LN-CND-R10-LCD

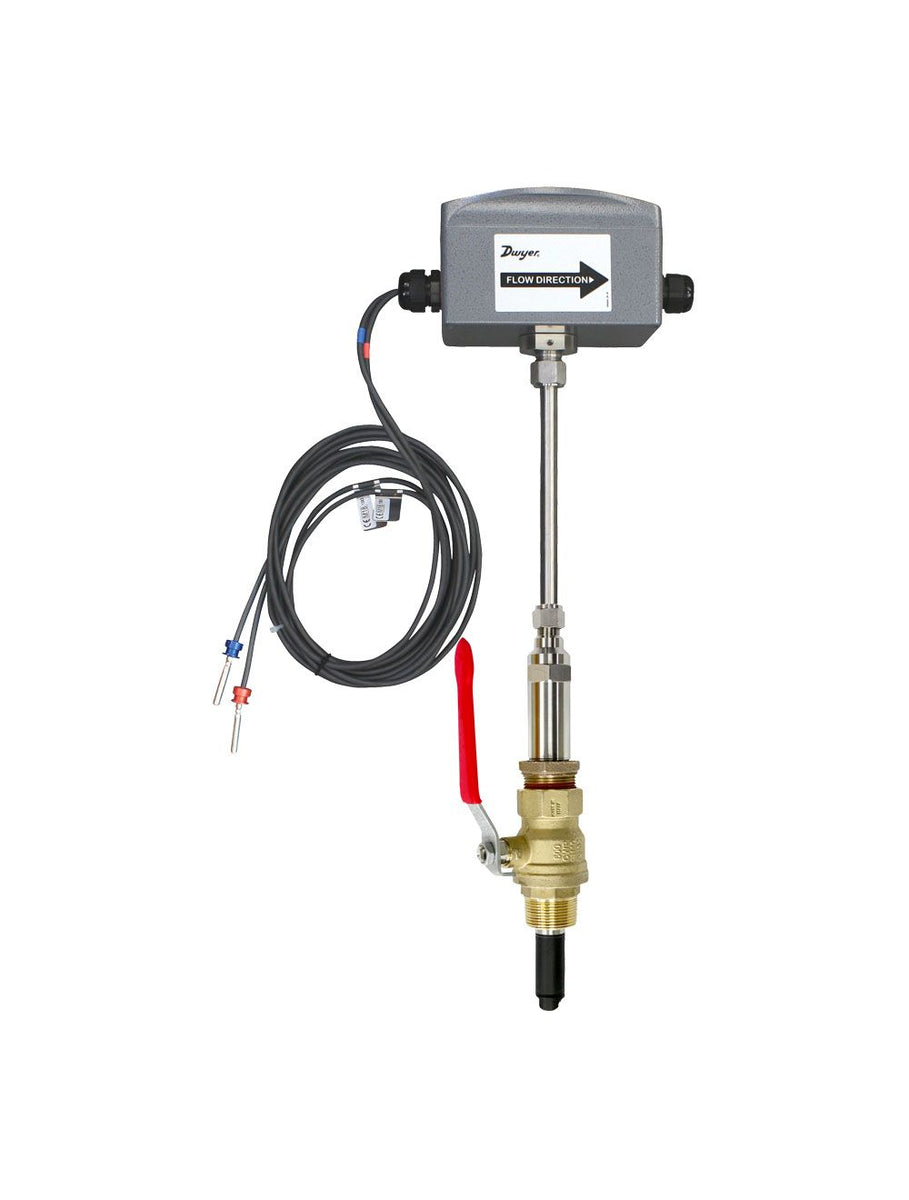

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to IEFB-LN-CND-R10-LCD

Jump to: Overview & Specifications Reviews

Overview Details for IEFB-LN-CND-R10-LCD

See catalog product page for full listing

Series IEFB Insertion Thermal Energy Meter

Field Adjustable, BACnet/Modbus® Outputs

The Series IEFB is a field-adjustable insertion thermal energy meter that useselectromagnetic technology to accurately and reliably measure fluid velocity andenergy consumption. The high accuracy IEFB is adjustable to fit pipe sizes from 4to 10" (100 to 250 mm), while the standard accuracy IEFB fits pipe sizes 4 to 36"(100 to 900 mm). The IEFB incorporates a temperature meter and a calculator into asingle unit. The LCD display provides clear readings of the meter’s values, includingtemperature and energy consumption, making it ideal for installation on chillers,boilers, and other heating and cooling applications. The high measuring accuracy andlong lifetime keeps annual operating costs at a minimum. In addition, it offers severaloutput options, including selectable BACnet MS/TP or Modbus® RTU communicationsprotocol over 2-wire RS-485 and standard analog, frequency, and alarm outputs.

Product Applications

Monitoring chiller cooling output performance
Industrial boiler heating performance
Energy efficiency monitoring
Optimization of heat energy performance
Commercial and residential heat energy consumption and metering
District heating and cooling monitoring
Energy cost allocation monitoring

Save time and reduce installation costs with flow, temperature sensors and calculator delivered in one preprogrammed, complete package.
Maintain system energy efficiency with high performance accuracy that is maintained through changes in temperature, density or viscosity per universally accepted standard
Meet application requirements with field configurable setup displays (-LCD integral option or remote accessory A-IEF-DSP), which accommodate a variety of application configurations with one model through multiple display configurations i.e. pipe size, pipe material, liquid type, analog output, pulse/frequency output, alarm outputs, communication outputs, damping, and calibration factor
Quick and easy ordering and set up with Setup Wizard and installation tool that are simple to use and allow for precise installation
Save time with accessory setup kit A-IEF-KIT that ensures exact installation application depth with included thickness gage and measuring tape
Reduced costs, long product life, and minimal maintenance requirements with no moving parts to wear or break and electrodes that discourage fouling
Minimize installation costs with isolation valve accessory options to allow for installation in operational systems via hot-tap kit or easy removal without system downtime
Required documents included with NIST traceable pass/fail verification certificate included standard for Carbon Steel Schedule 40 pipes sized 4" (102 mm), 6" (150 mm), 8" (200 mm)

Specifications

Series: IEFB Insertion Thermal Energy Meter
Category/Type: Flow
Type: Flow Transmitters
Series: IEFB Insertion Thermal Energy Meter
Service: Compatible clean or dirty non coating; conductive liquids.
Range: 0 to 20 ft/s (0 to 6 m/s). *For max flowrates >10 ft/s (3 m/s) order option -CC.
Wetted Materials: Body shaft/fitting: 316 SS; Electrodes: 316 SS; Electrode cap:Polymer/polystyrene; O-ring: Silicone; Thermowells: 304 SS.
BTU Accuracy: Per EN1434/ASTM E3137/CSA C900.1-13: High Accuracy Units: Class 2 for 2 to 20 ft/s (0.6 to 6 m/s)**; Standard Accuracy Units: Class 3 for 6.5 to 20 ft/s (2 to 6 m/s)**.**Verified at standard temperature 73.4°F (23°C) refer to listed standards fordetailed accuracy formulations.
Flow Sensor Accuracy: High Accuracy Units: ±0.5% of reading at calibratedvelocity; ±1% of reading from 2 to 20 ft/s (0.6 to 6 m/s) ±0.02 ft/s (±0.006 m/s) at < 2ft/s (0.6 m/s); Standard Accuracy Units: ±1% FS.
Temperature Accuracy: Class B ±(0.30 + 0.005*t)°C per EN60751.
Differential Temperature Accuracy: Et = ±[0.5 +3*(Delta)(Theta)min/(Delta)(Theta)] % per EN1434 for differential temperature.
Calculator Accuracy: Ec = ±[0.5 +(Delta)(Theta)min/(Delta)(Theta)] % per EN1434.
Temperature Compensation: 140 to 220°F (60 to 104.4°C) < 2% error over ±30°F (-1.1 °C) change; 40 to 70°F (4.4 to 21.1°C) < 2% error over ±10°F (-12.2°C)change.
Temperature Limits: Ambient: -20 to 160°F (-29 to 71°C)**; LCD -4 to 158°F (-20 to70°C); Process: 15 to 250°F (-9 to 121°C); Storage: -40 to 185°F (-40 to 85°C).
Process Connection: Flowmeter: 1" NPT or BSPT with accessory full port ball valve options; Thermowell: (2) 1/2" NPT or BSPT thermowell with 1" full port ball valve options.
Pressure Limit: 400 psi (27.6 bar) @ 100°F (37.8°C).
Pressure Drop: < 0.1 psi at 12 ft/s in 4" (<0.01 bar at 3.7 m/s in 100 mm) and larger pipe.
Outputs: (1) Analog: 4-20 mA; 0-5 V; 0-10 V or 2-10 V (display selectable); (1)Pulse/Frequency: 0-15 V peak pulse; 0 to 500 Hz or scalable pulse output (displayselectable); (2) Alarm: Empty pipe detection or minimum/maximum velocity; (displayselectable) & Reverse flow output indication.
Power Requirements: 12-42 VDC; .25 A @ 24 VDC; 12-36 VAC.
Electrical Connection: Removable terminal blocks; (2) model selectable 1/2"female NPT conduit connection; (2) PG 16 gland or (2) PG 16 gland with 10 ft (3 m)9 conductor 22 AWG plenum rated cables; accessory cable lengths up to 200 ft (61m) optional.
Display: (-LCD option): 2 x 2" (50 x 50 mm) graphic LCD with backlight.
Conductivity: >20 microsiemens.
Enclosure Material: Powder coated die cast aluminum.
Enclosure Ratings: NEMA 6P (IP68) (Non display models); NEMA 4X (IP66) (-LCD option).
Agency Approvals: BTL.
: COMMUNICATIONS (-COM OPTION)
Type: BACnet MS/TP or Modbus® RTU communication protocol (default disabled;display selectable).
Supported Baud Rates: 9600; 19200; 38400; 57600; 76800; or 115200 bps(display selectable).
Device Load: 1/8 unit load.
: ADDITIONAL SPECIFICATIONS
Applicable Pipe Material: Most popular plastic and metal pipes; i.e. Carbon steel;SS; copper; UPVC/PVDF; galvanized steel; mild steel; and brass.
Applicable Pipe Size:: 4 to 36" (100 to 900 mm); model dependent. See model chart.
Diameter Length Requirements: >10 upstream; >5 downstream.
Temperature Resistance: Matched 4 wire platinum RTD’s.
Relative Humidity: 10 to 90% non-condensing.
Output Impedance: 4 to 20 mA: 536 Ω; 5V: 500 Ω 10V: 1.27k Ω.
