I2-49062 | Immersion temperature sensor | 6" insertion length | 20K Ω Thermistor | NEMA 4X housing. | Dwyer

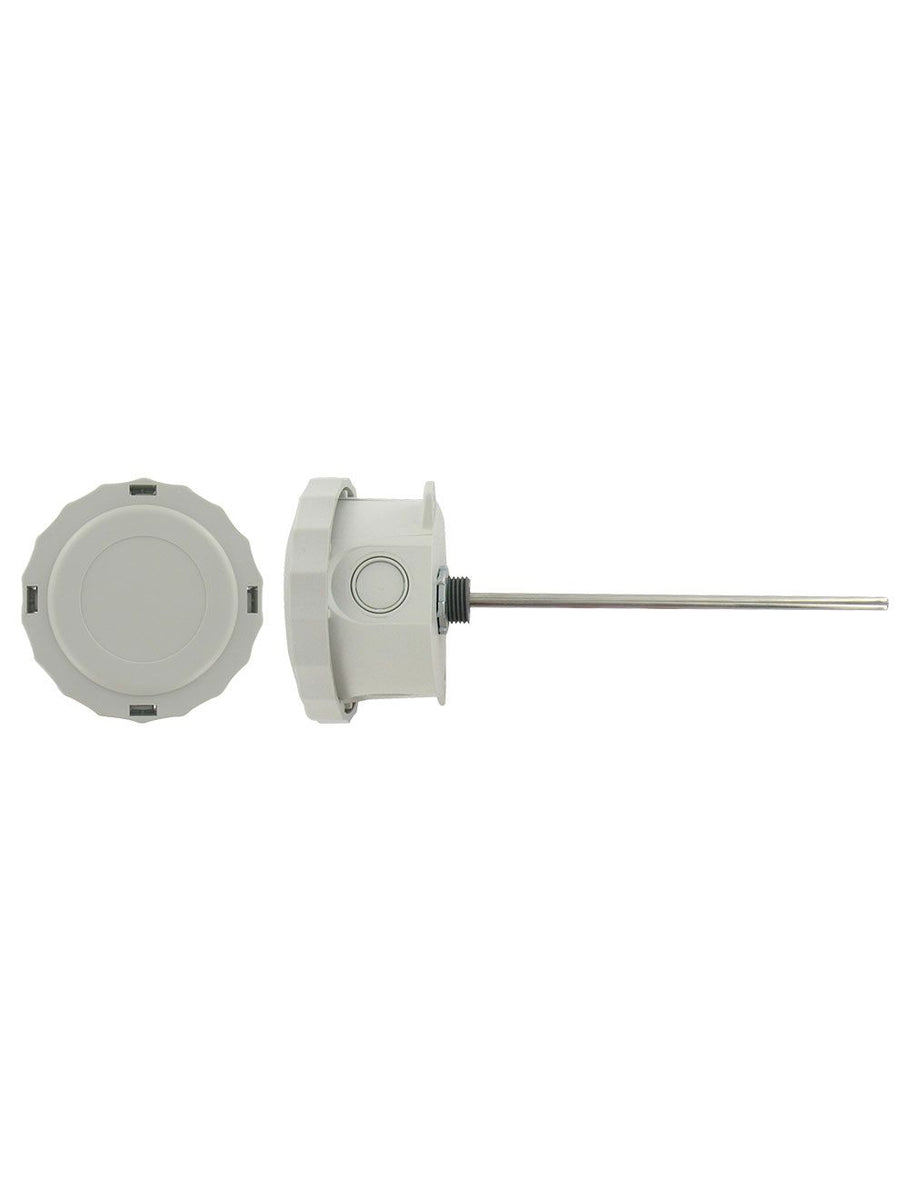

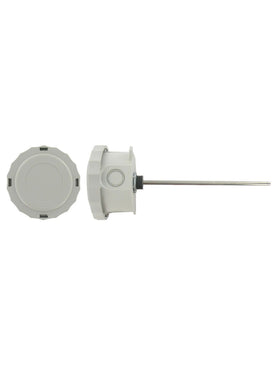

Immersion temperature sensor, 6" insertion length, 20K Ω Thermistor, NEMA 4X housing.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to I2-49062
Documents and manuals
Dwyer I2-49062 Documents
Overview
Details for I2-49062
See catalog product page for full listing
Immersion temperature sensor | 6" insertion length | 20K Ω Thermistor | NEMA 4X housing.
Series I2-4 Weatherproof Immersion Temperature Sensor
Twist Off Cover, Multiple Conduit Holes
The Series I2-4 Weatherproof Immersion Temperature Sensor is ideal for monitoring hot and chilled water lines feeding Air Handlers and Cooling Towers. The plastic housing has a 1/4 turn twist off cover to reduce installation time. The multiple knockouts allow for easy conduit access to any side of the housing. The Series I2-4 can be ordered with a choice of 11 output options that allow it to communicate to any standard building controlsystem.
Specifications
- Series
- I2-4 Weatherproof Immersion Temperature Sensor
- Category/Type
- Temperature
- Type
- Sensors
- Series
- I2-4 Weatherproof Immersion Temperature Sensor
- Accuracy
- Platinum RTD: ±0.6% @ 32°F (0°C); Nickel RTD: ±0.5°F @ 32°F (0°C); Balco RTD: ±0.1% @ 32°F (0°C); Thermistors: ±0.36°F from 32 to 158°F (0 to 70°C).
- Operating Temperature
- -32 to 240°F (-35.5 to 115.5°C).
- Probe Diameter
- 1/4" (6.3 mm)
- Cable Length
- 8".
- Probe Material
- 304 SS.
- Mounting
- 1/2" threaded connection to fit IW2 Series Thermowell.
- Note: A Series IW2 Thermowell must be used on pressurized air and water lines toprevent leakage around the probe.
