Documents: I2-43062

Series I2-4 Catalog Page More Info

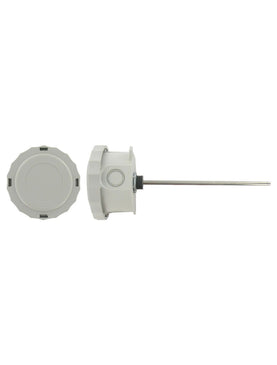

I2-43062 | Immersion temperature sensor | 6" insertion length | Ni 1000 Ω RTD sensor | NEMA 4X housing. | Dwyer

Immersion temperature sensor, 6" insertion length, Ni 1000 Ω RTD sensor, NEMA 4X housing.

Brand: DwyerSKU: I2-43062

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to I2-43062

Jump to: Overview & Specifications Reviews

Overview Details for I2-43062

See catalog product page for full listing

Immersion temperature sensor | 6" insertion length | Ni 1000 Ω RTD sensor | NEMA 4X housing.

Series I2-4 Weatherproof Immersion Temperature Sensor

Twist Off Cover, Multiple Conduit Holes

The Series I2-4 Weatherproof Immersion Temperature Sensor is ideal for monitoring hot and chilled water lines feeding Air Handlers and Cooling Towers. The plastic housing has a 1/4 turn twist off cover to reduce installation time. The multiple knockouts allow for easy conduit access to any side of the housing. The Series I2-4 can be ordered with a choice of 11 output options that allow it to communicate to any standard building controlsystem.

Specifications

Series: I2-4 Weatherproof Immersion Temperature Sensor
Category/Type: Temperature
Type: Sensors
Series: I2-4 Weatherproof Immersion Temperature Sensor
Accuracy: Platinum RTD: ±0.6% @ 32°F (0°C); Nickel RTD: ±0.5°F @ 32°F (0°C); Balco RTD: ±0.1% @ 32°F (0°C); Thermistors: ±0.36°F from 32 to 158°F (0 to 70°C).
Operating Temperature: -32 to 240°F (-35.5 to 115.5°C).
Probe Diameter: 1/4" (6.3 mm)
Cable Length: 8".
Probe Material: 304 SS.
Mounting: 1/2" threaded connection to fit IW2 Series Thermowell.
: Note: A Series IW2 Thermowell must be used on pressurized air and water lines toprevent leakage around the probe.
