Documents: I2-25062

Series I2-2 Catalog Page More Info

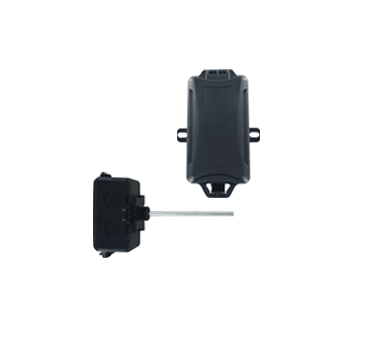

I2-25062 | Immersion temperature sensor | 6" insertion | 10K NTC (type 2) sensor | plastic junction box. | Dwyer

Immersion temperature sensor, 6" insertion, 10K NTC (type 2) sensor, plastic junction box.

Brand: DwyerSKU: I2-25062

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to I2-25062

Jump to: Overview & Specifications Reviews

Overview Details for I2-25062

See catalog product page for full listing

Immersion temperature sensor | 6" insertion | 10K NTC (type 2) sensor | plastic junction box.

Series I2-2 General Purpose Immersion Temperature Sensor

Locking Screw Cover, Multiple Conduit Holes

The Series I2-2 General Purpose Immersion Temperature Sensor is ideal for monitoring hot and chilled water lines throughout a building or mechanical room. The plastic housing is in the shape of a standard junction box with multiple knockouts for easy conduit access. The locking cover prevents unauthorized occupants from tampering with the temperature sensor. The Sensor I2-2 can be ordered with a choice of 11 output options that allow it to communicate to any standard building control system.

Note: A Series IW2 Thermowell must be used on pressurized air and water lines to prevent leakage around the probe.

Specifications

Series: I2-2 General Purpose Immersion Temperature Sensor
Category/Type: Temperature
Type: Sensors
Series: I2-2 General Purpose Immersion Temperature Sensor
Accuracy:: Platinum RTD: ±0.6% @ 32°F (0°C); Nickel RTD: ±0.5°F @ 32°F (0°C); Balco RTD: ±0.1% @ 32°F (0°C); Thermistors: ±0.36°F from 32 to 158°F (0 to 70°C).
Operating Temperature: -32 to 240°F (-35.5 to 115.5 °C).
Probe Diameter: 1/4" (6.3 mm).
Cable Length: 8".
Probe Material: 304 SS.
Mounting: 1/2" Threaded Connection to fit IW2 Series Thermowell.
