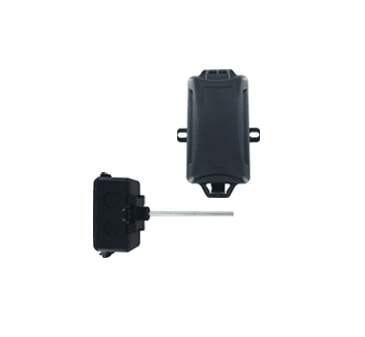

I2-23042 | Immersion temperature sensor | 4" insertion | NI 1000 sensor | plastic junction box. | Dwyer
Immersion temperature sensor, 4" insertion, NI 1000 sensor, plastic junction box.
Documents and manuals
Dwyer I2-23042 Documents
Overview
Details for I2-23042
Immersion temperature sensor | 4" insertion | NI 1000 sensor | plastic junction box.

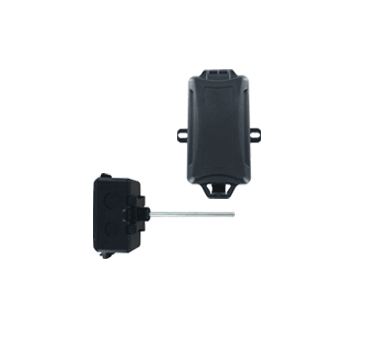

Series I2-2 General Purpose Immersion Temperature Sensor
The Series I2-2 General Purpose Immersion Temperature Sensor is ideal for monitoring hot and chilled water lines throughout a building or mechanical room. The plastic housing is in the shape of a standard junction box with multiple knockouts for easy conduit access. The locking cover prevents unauthorized occupants from tampering with the temperature sensor. The Sensor I2-2 can be ordered with a choice of 11 output options that allow it to communicate to any standard building control system.
Note: A Series IW2 Thermowell must be used on pressurized air and water lines to prevent leakage around the probe.
Specifications
- Series
- I2-2 General Purpose Immersion Temperature Sensor
- Category/Type
- Temperature
- Type
- Sensors
- Series
- I2-2 General Purpose Immersion Temperature Sensor
- Accuracy:
- Platinum RTD: ±0.6% @ 32°F (0°C); Nickel RTD: ±0.5°F @ 32°F (0°C); Balco RTD: ±0.1% @ 32°F (0°C); Thermistors: ±0.36°F from 32 to 158°F (0 to 70°C).
- Operating Temperature
- -32 to 240°F (-35.5 to 115.5 °C).
- Probe Diameter
- 1/4" (6.3 mm).
- Cable Length
- 8".
- Probe Material
- 304 SS.
- Mounting
- 1/2" Threaded Connection to fit IW2 Series Thermowell.
