Documents: I2-14042

Series I2-1 Catalog Page More Info

I2-14042 | Immersion temperature sensor | 4" insertion length | Balco 1000 Ω sensor. | Dwyer

Immersion temperature sensor, 4" insertion length, Balco 1000 Ω sensor.

Brand: DwyerSKU: I2-14042

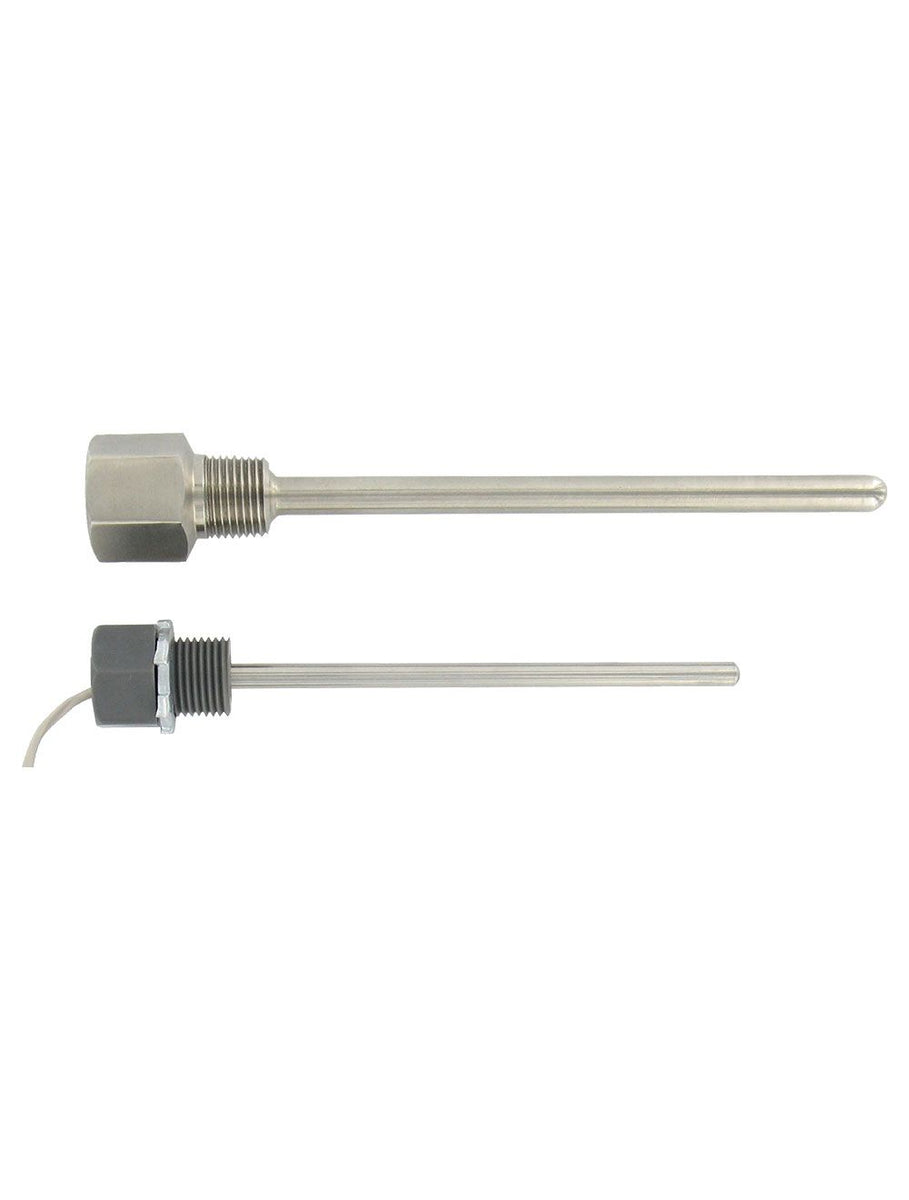

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to I2-14042

Jump to: Overview & Specifications Reviews

Overview Details for I2-14042

See catalog product page for full listing

Immersion temperature sensor | 4" insertion length | Balco 1000 Ω sensor.

Series I2-1 Immersion Temperature Probes

RTD & Thermistor Outputs, 304 SS Probes

The Series I2-1 Immersion Temperature Probes are designed to monitor the hot and chilled water lines throughout a building’s water distribution loop. The multiple temperature sensor outputs allow these sensors to connect to virtually any digital building controller. The Series IW2 stainless steel thermowells allow the temperature sensors to be replaced without draining the water line. The temperature sensors are available in 4" and 6" insertion lengths.

Note: A Series IW2 Thermowell must be used on pressurized air and water lines to prevent leakage around the probe.

Product Applications

Hot or chilled water line monitoring
HVAC and building automation systems

Direct wall mounting
6´cable
1/2" internal NPT accepts conduit for more industrial installation

Specifications

Series: I2-1 Immersion Temperature Probes
Category/Type: Temperature
Type: Sensors
Series: I2-1 Immersion Temperature Probes
Accuracy: Platinum RTD: ±0.6% @ 32°F (0°C); Nickel RTD: ±0.5°F @ 32°F (0°C); Balco RTD: ±0.1% @ 32°F (0°C); Thermistors: ±0.36°F from 32 to 158°F (0to 70°C).
Operating Temperature: -32 to 240°F (-35.5 to 115.5°C).
Probe Diameter: 1/4" (6.3 mm).
Cable Length: 6' (1.8 m).
Probe Material: 304 SS.
Mounting: 1/2" threaded connection to fit Series IW2 Thermowell.
