HGV07 | Hand operated globe valve | 2" female NPT | Cv of 47.1. | Dwyer

Hand operated globe valve, 2" female NPT, Cv of 47.1.

Brand: DwyerSKU: HGV07

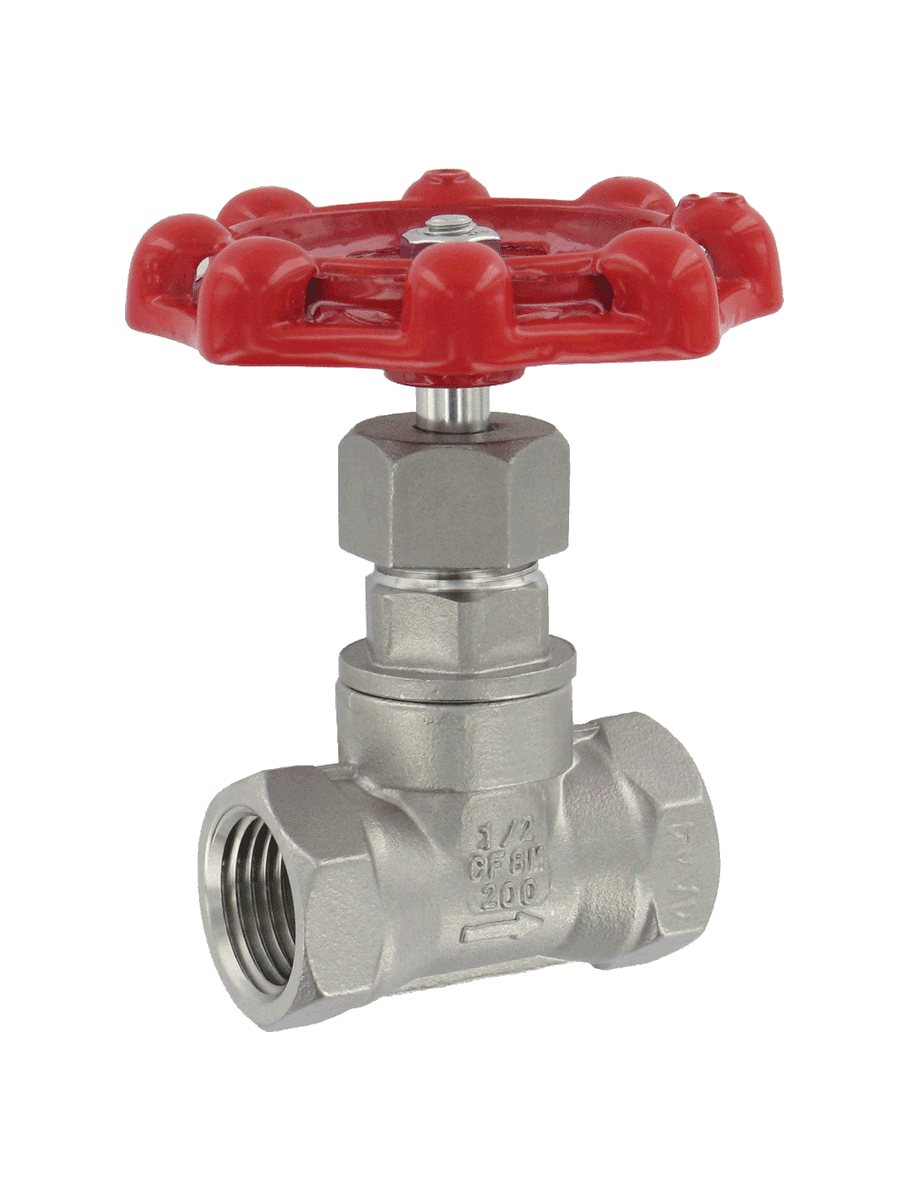

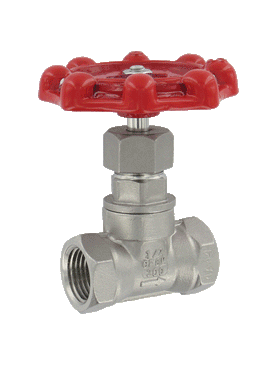

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HGV07

Jump to: Overview & Specifications Reviews

Overview Details for HGV07

See catalog product page for full listing

Hand operated globe valve | 2" female NPT | Cv of 47.1.

Series HGV Hand Operated Globe Valve

Low Cost, High Pressure Rating

The Series HGV Hand Operated Globe Valve is an economical and functional alternative to large actuator/control valve packages. Metal-to-metal seating ensures excellent flow control and shut-off service. The body and bonnet are each constructed of CF8M (316) SS for superb corrosion resistance and chemical compatibility.

Product Applications

Compatible liquids and gases
Used for regulation of flow pipelines

Threaded ends conform to ANSI B 2.1, BS 21, DIN 259/2999, ISO 228.
Stainless steel inside screw, screwed bonnet, swivel disc integral seat, rising stem and hand wheel.

Specifications

Series: HGV Hand Operated Globe Valve
Category/Type: Valves
Type: Valves
Valve Type: Globe
Series: HGV Hand Operated Globe Valve
Service: Compatible liquids and gases.
End Connections: Female NPT.
Pressure Limits: 725 psi (50 bar) from -20 to 200°F (-28.9 to 93.3°C); 500 psi (34.5 bar) at 300°F (148.9°C); 450 psi (31.0 bar) at 325°F (162.8°C); 100 psi (6.9 bar) at 350°F (176.7°C).
Wetted Materials: Body; Bonnet; Packing Nut: CF8M (316) SS; Disc; Stem; Retainer Ring; Gland: 316 SS; Packing: PTFE.
Temperature Limits: -20 to 356°F (-28.9 to 180°C).
Other Materials: Hand Wheel: cast iron; Plate: aluminum; Wheel Nut: 316 SS.
