HGV03 | Hand operated globe valve | 3/4" female NPT | Cv of 5.76. | Dwyer
Hand operated globe valve, 3/4" female NPT, Cv of 5.76.

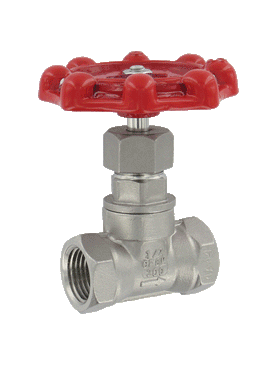

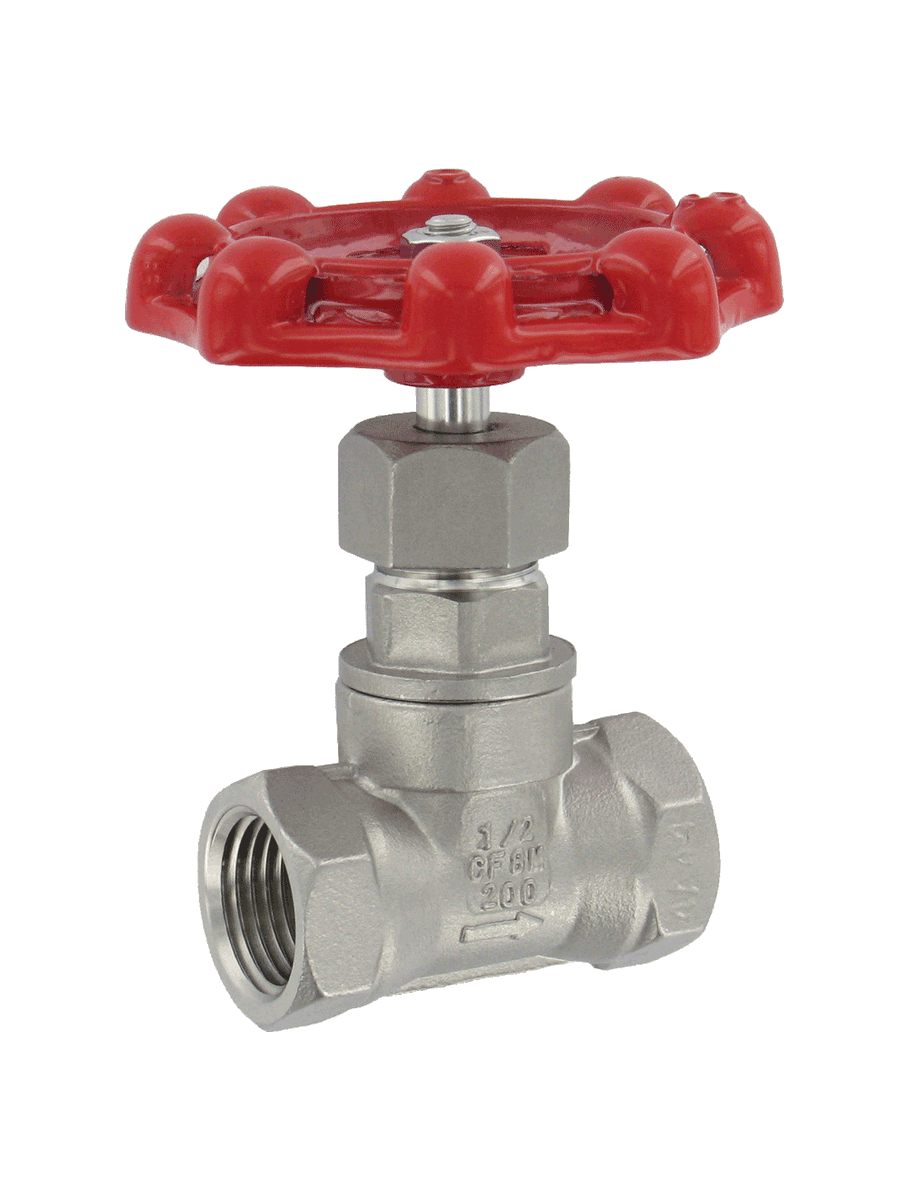

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HGV03
Documents and manuals
Dwyer HGV03 Documents
Overview
Details for HGV03
See catalog product page for full listing
Hand operated globe valve | 3/4" female NPT | Cv of 5.76.
Series HGV Hand Operated Globe Valve
Low Cost, High Pressure Rating
The Series HGV Hand Operated Globe Valve is an economical and functional alternative to large actuator/control valve packages. Metal-to-metal seating ensures excellent flow control and shut-off service. The body and bonnet are each constructed of CF8M (316) SS for superb corrosion resistance and chemical compatibility.
Product Applications
- Compatible liquids and gases
- Used for regulation of flow pipelines
- Threaded ends conform to ANSI B 2.1, BS 21, DIN 259/2999, ISO 228.
- Stainless steel inside screw, screwed bonnet, swivel disc integral seat, rising stem and hand wheel.
Specifications
- Series
- HGV Hand Operated Globe Valve
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Globe
- Series
- HGV Hand Operated Globe Valve
- Service
- Compatible liquids and gases.
- End Connections
- Female NPT.
- Pressure Limits
- 725 psi (50 bar) from -20 to 200°F (-28.9 to 93.3°C); 500 psi (34.5 bar) at 300°F (148.9°C); 450 psi (31.0 bar) at 325°F (162.8°C); 100 psi (6.9 bar) at 350°F (176.7°C).
- Wetted Materials
- Body; Bonnet; Packing Nut: CF8M (316) SS; Disc; Stem; Retainer Ring; Gland: 316 SS; Packing: PTFE.
- Temperature Limits
- -20 to 356°F (-28.9 to 180°C).
- Other Materials
- Hand Wheel: cast iron; Plate: aluminum; Wheel Nut: 316 SS.
