HFT-3202 | In-line flow transmitter | range 0.2-2.0 GPM (0.75-7.5 LPM) water | 1/2" female NPT. | Dwyer

In-line flow transmitter, range 0.2-2.0 GPM (0.75-7.5 LPM) water, 1/2" female NPT.

Brand: DwyerSKU: HFT-3202

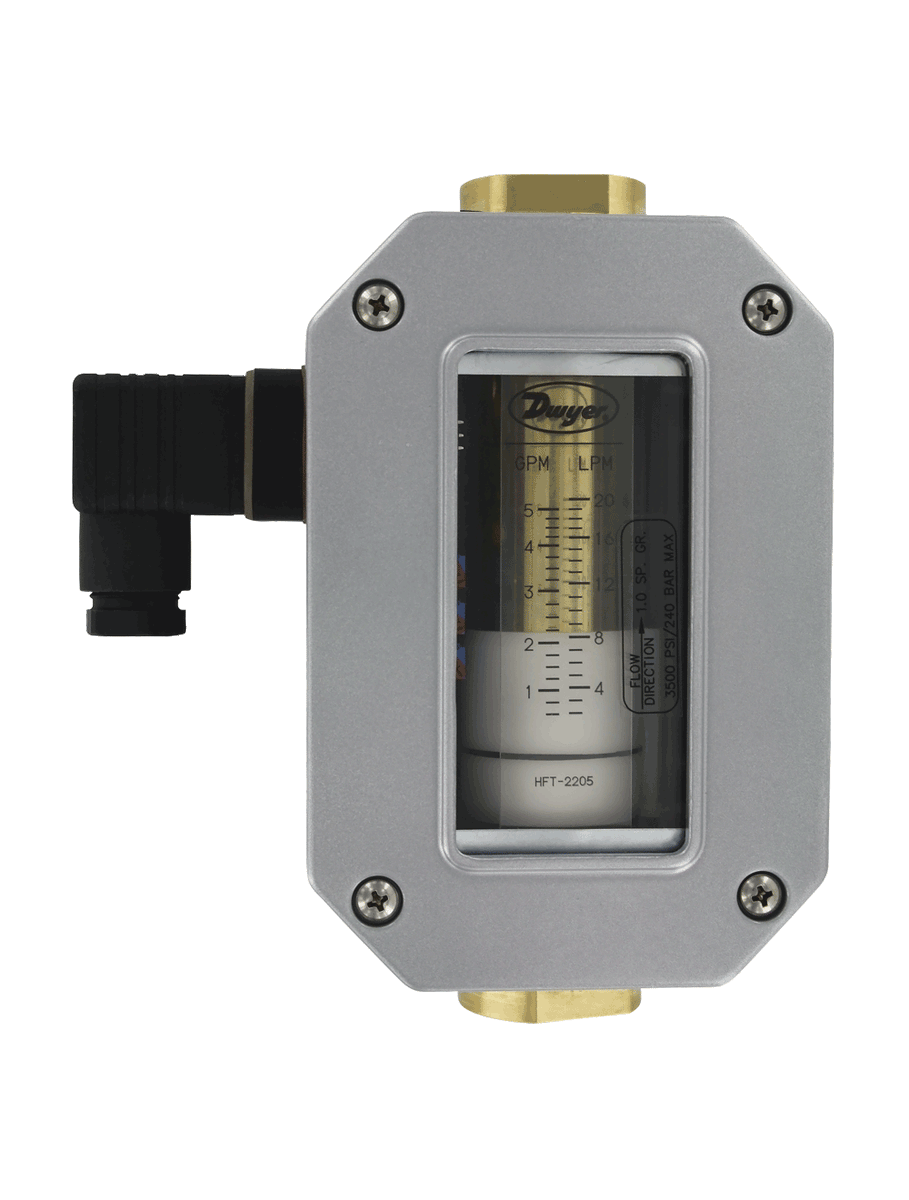

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HFT-3202

Jump to: Overview & Specifications Reviews

Overview Details for HFT-3202

See catalog product page for full listing

In-line flow transmitter | range 0.2-2.0 GPM (0.75-7.5 LPM) water | 1/2" female NPT.

Series HFT In-Line Flow Transmitters

Local Flow Indication, Unrestricted Mounting, 4 to 20 mA, 0 to 5 V, and 1 to 5 V Output

The Series HFT In-Line Transmitters provide continuous monitoring of flow rate levels via a direct reading in-line flowmeter with electronics to provide proportional 4 to 20 mA, 0 to 5 and 1 to 5 VDC analog outputs.

Calibration Option available under Accessories.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Waste water processing
Lubrication systems
Process control
Solar systems
Drain lines
Pump testing
Drive data acquisition devices, metersor analog input cards

Provides analog output to monitor application flow and integral directreading scale to provide local indication of flow rate
Increased application versatility with no inlet or outlet straight plumbing requirementand can be mounted horizontally, vertically, or inverted
Outdoor or harsh environment installation capable with rugged cast aluminumconstruction and NEMA 4X (IP65) enclosure

Specifications

Series: HFT In-Line Flow Transmitters
Category/Type: Flow
Type: Flow Transmitters
Series: HFT In-Line Flow Transmitters
Service: Compatible gases or liquids.
Wetted Materials: Body: Aluminum; brass or 304 SS; Seals: Buna-N or Fluoroelastomer; Magnet: PTFE coated Alnico; Other internal parts: 304 SS.
Viscosity: 500 SSU.
Temperature Limits: 170°F (76°C).
Pressure Limits: Aluminum body: 600 psig (41 bar); Brass body: 3500 psig (240 bar); 304 SS body: 6000 psig (413 bar).
Power Requirements: 12 to 35 VDC.
Enclosure Rating: NEMA 4X (IP66).
Accuracy: ±2% FS.
Repeatability: ±1% of FS.
Response Time: <100 ms.
Output Signal: 4 to 20 mA; 0 to 5 V; 1 to 5 V.
Shipping Weight: 1/4 to 1/2" female NPT models: 3 lb (1.4 kg); 3/4 to 1" female NPT models: 4.5 lb (2.0 kg); 1-1/2" female NPT models: 12 lb (5.4 kg).
