HFT-2315 | In-line flow transmitter | range 1-15 GPM (3.8-55 LPM) water | 3/4" female NPT. | Dwyer
In-line flow transmitter, range 1-15 GPM (3.8-55 LPM) water, 3/4" female NPT.

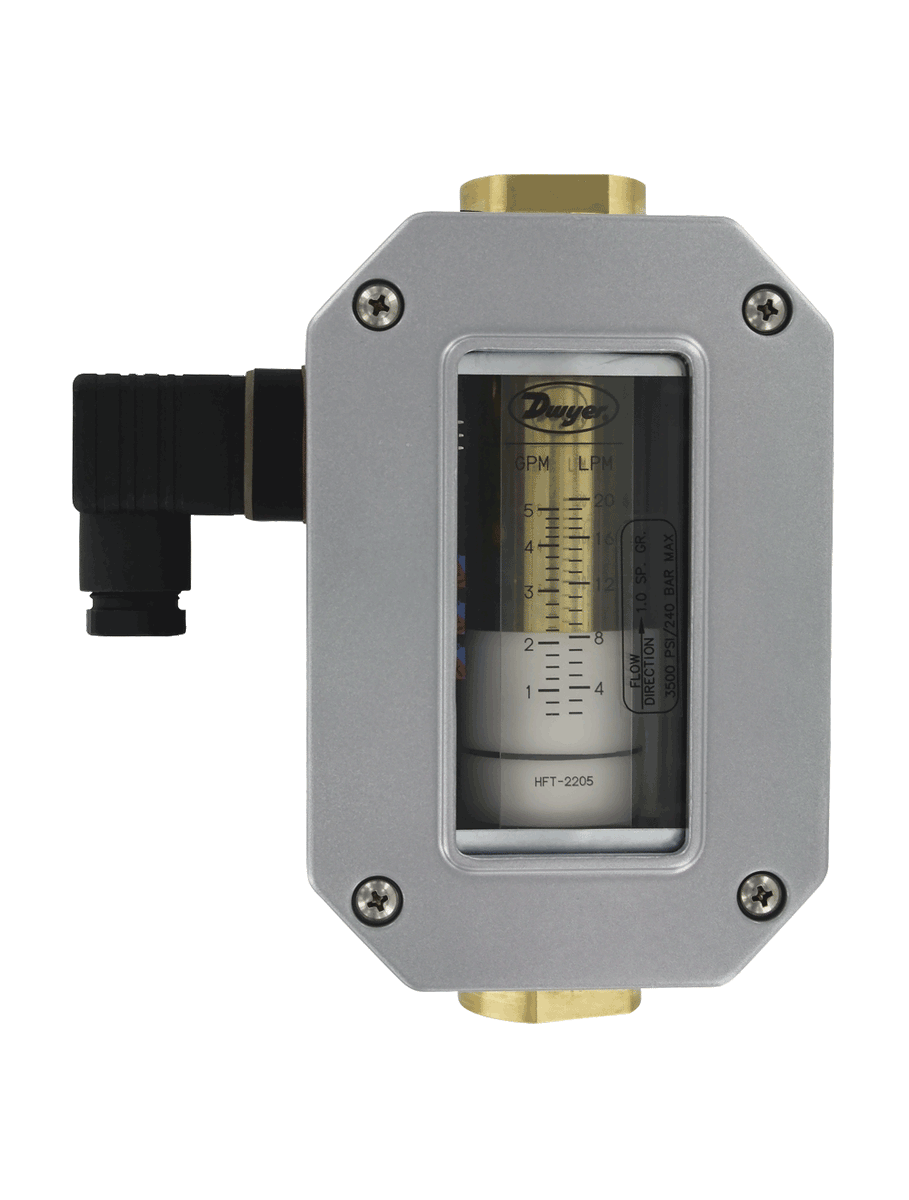

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HFT-2315
Documents and manuals
Dwyer HFT-2315 Documents
Overview
Details for HFT-2315
See catalog product page for full listing
In-line flow transmitter | range 1-15 GPM (3.8-55 LPM) water | 3/4" female NPT.
Series HFT In-Line Flow Transmitters
Local Flow Indication, Unrestricted Mounting, 4 to 20 mA, 0 to 5 V, and 1 to 5 V Output
The Series HFT In-Line Transmitters provide continuous monitoring of flow rate levels via a direct reading in-line flowmeter with electronics to provide proportional 4 to 20 mA, 0 to 5 and 1 to 5 VDC analog outputs.
Calibration Option available under Accessories.
Product Applications
- Waste water processing
- Lubrication systems
- Process control
- Solar systems
- Drain lines
- Pump testing
- Drive data acquisition devices, metersor analog input cards
- Provides analog output to monitor application flow and integral directreading scale to provide local indication of flow rate
- Increased application versatility with no inlet or outlet straight plumbing requirementand can be mounted horizontally, vertically, or inverted
- Outdoor or harsh environment installation capable with rugged cast aluminumconstruction and NEMA 4X (IP65) enclosure
Specifications
- Series
- HFT In-Line Flow Transmitters
- Category/Type
- Flow
- Type
- Flow Transmitters
- Series
- HFT In-Line Flow Transmitters
- Service
- Compatible gases or liquids.
- Wetted Materials
- Body: Aluminum; brass or 304 SS; Seals: Buna-N or Fluoroelastomer; Magnet: PTFE coated Alnico; Other internal parts: 304 SS.
- Viscosity
- 500 SSU.
- Temperature Limits
- 170°F (76°C).
- Pressure Limits
- Aluminum body: 600 psig (41 bar); Brass body: 3500 psig (240 bar); 304 SS body: 6000 psig (413 bar).
- Power Requirements
- 12 to 35 VDC.
- Enclosure Rating
- NEMA 4X (IP66).
- Accuracy
- ±2% FS.
- Repeatability
- ±1% of FS.
- Response Time
- <100 ms.
- Output Signal
- 4 to 20 mA; 0 to 5 V; 1 to 5 V.
- Shipping Weight
- 1/4 to 1/2" female NPT models: 3 lb (1.4 kg); 3/4 to 1" female NPT models: 4.5 lb (2.0 kg); 1-1/2" female NPT models: 12 lb (5.4 kg).
