HBAV0711 | 2-Way ball valve | 2" NPT | floating | 110 VAC | Dwyer
2-Way ball valve, 2" NPT, floating, 110 VAC

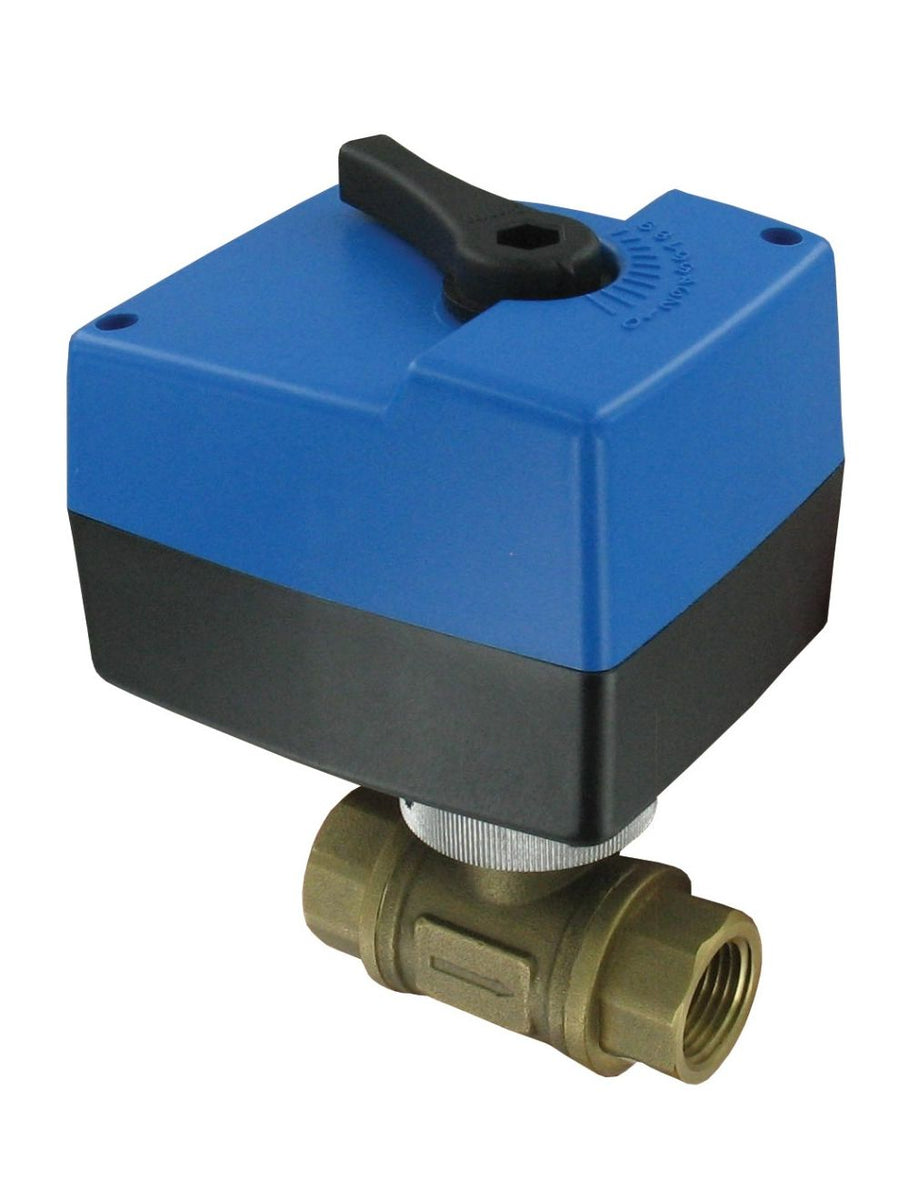

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HBAV0711
Documents and manuals
Dwyer HBAV0711 Documents
Overview
Details for HBAV0711
See catalog product page for full listing
2-Way ball valve | 2" NPT | floating | 110 VAC
SERIES HBAV TWO-WAY DETACHABLE ELECTRIC BALL VALVE
Floating or Modulating, Position Indicator
The Series HBAV is an electrical ball valve ideal for flow control in hot andcold water HVAC systems. These valves are typically used in conjunction withair conditioning systems, heating systems, water treatment and productionindustries. The HBAV is electrically driven open and/or closed via abidirectional AC motor. The electrical valve offers a detachable actuator withposition switches and indicator. The HBAV is available with modulating orfloating actuators.
- Manual override
- Detachable actuator
- High Cv values
Specifications
- Series
- HBAV TWO-WAY DETACHABLE ELECTRIC BALL VALVE
- Category/Type
- Valves
- Type
- Valves
- Valve Type
- Ball
- Series
- HBAV TWO-WAY DETACHABLE ELECTRIC BALL VALVE
- Service
- Compatible fluids.
- Body
- 2-way; NC.
- Line Size
- 1/2 to 2" NPT.
- End Connections
- Female NPT.
- Pressure Limits
- Max: 375 psi (25 bar); Close off: 87 psi (6 bar).
- Temperature Limit Ambient:
- Ambient: -22 to 158°F (-30 to 70°C);Process: 23 to 122°F (-5 to 50°C).
- Wetted Materials
- Brass; SS; NBR; PTFE.
- Input
- Floating: 3-wire; Modulating: 4 to 20 mA (24 VAC power only).
- Power Requirements
- 120 VAC or 24 VAC; 50/60 Hz; single phase.
- Power Consumption
- Floating: 3 to 5 VA; Modulating: 4 VA.
- Electrical Connection
- 18 AWG.
- Cycle Time (per 90°)
- 1/2 to 1": 45 sec.; 1-1/4 to 2": 50 sec.
- Enclosure Rating
- NEMA 1 (IP10).
- Housing Material
- Plastic; nylon; and polyoxymethylene.
- Weight
- See catalog page.
