GVS-113 | Globe valve switch | actuation set point 2.0-8.0 GPM (7.6-30.3 LPM). | Dwyer

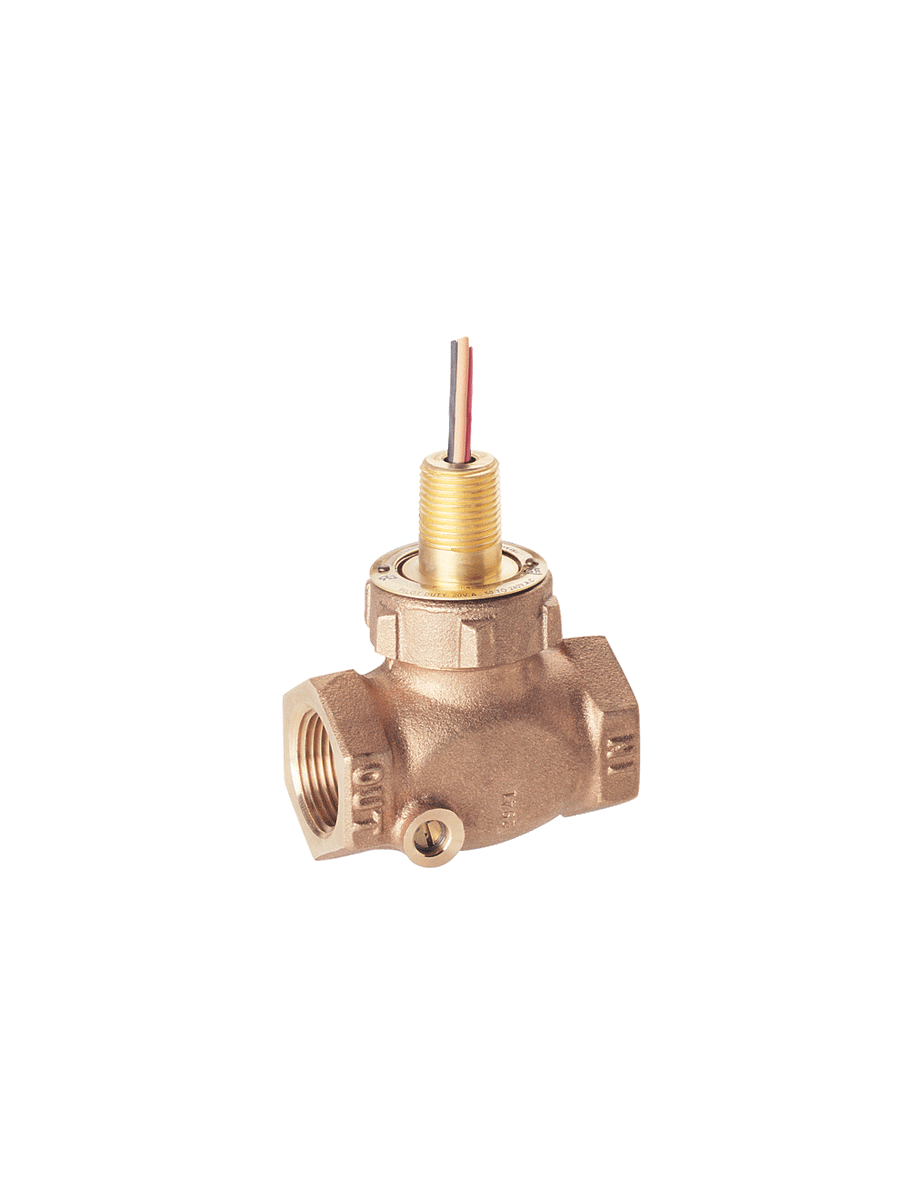

Globe valve switch, actuation set point 2.0-8.0 GPM (7.6-30.3 LPM).
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GVS-113
Documents and manuals
Dwyer GVS-113 Documents
Overview
Details for GVS-113
See catalog product page for full listing
Globe valve switch | actuation set point 2.0-8.0 GPM (7.6-30.3 LPM).
Series GVS Globe Valve Switch
Adjustable Set Point, Rugged Bronze Construction, Straight Through Flow
The Series GVS Globe Valve Switches offer accurate flow detection with 1% repeatability and external adjustability over a broad range of flow settings for compatible liquids.
Product Applications
- Detection of improper flow rates in high volume lubrication
- Low flow detection in cooling lines
- Flow detection in process systems
- Externally adjustable flow set point
- Durable construction delivers long-life reliability in either water or oil
- Ample space for flow to pass keep pressure drop low
Specifications
- Series
- GVS Globe Valve Switch
- Category/Type
- Flow
- Type
- Flow Switches
- Series
- GVS Globe Valve Switch
- Service
- Compatible liquids.
- Wetted Materials
- Housing: Bronze; Shuttle: TFE; Bonnet: Bronze; Spring: 316SS; Other: Fluoroelastomer; ceramic.
- Temperature Limits
- -20 to 200°F (-29 to 93°C).
- Pressure Limits
- 400 psig (27 bar) @ 100°F (38°C).
- Accuracy
- ±10%.
- Repeatability
- 1% maximum deviation.
- Switch Type
- SPDT.
- Electrical Rating
- .17 A @ 120 VAC; .08 A @ 240 VAC; .13 A @ 120 VDC; .06 A @ 240 VDC.
- Electrical Connections
- 18 AWG; 24" (61 cm) length; Polymeric lead wires.
- Process Connections
- 1" female NPT.
- Mounting Orientation
- Any position. Set points shown are based on horizontal; lead wires up positional.
- Required Filtration
- 150 microns or better.
- Weight
- 2 lb; 8 oz (1.16 kg).
- Agency Approval
- CE.
