Documents: GVS-112

GVS Series GVS Catalog Page More Info

GVS-112 | Globe valve switch | actuation set point 5.0-15.0 GPM (18.9-56.8 LPM). | Dwyer

Globe valve switch, actuation set point 5.0-15.0 GPM (18.9-56.8 LPM).

Brand: DwyerSKU: GVS-112

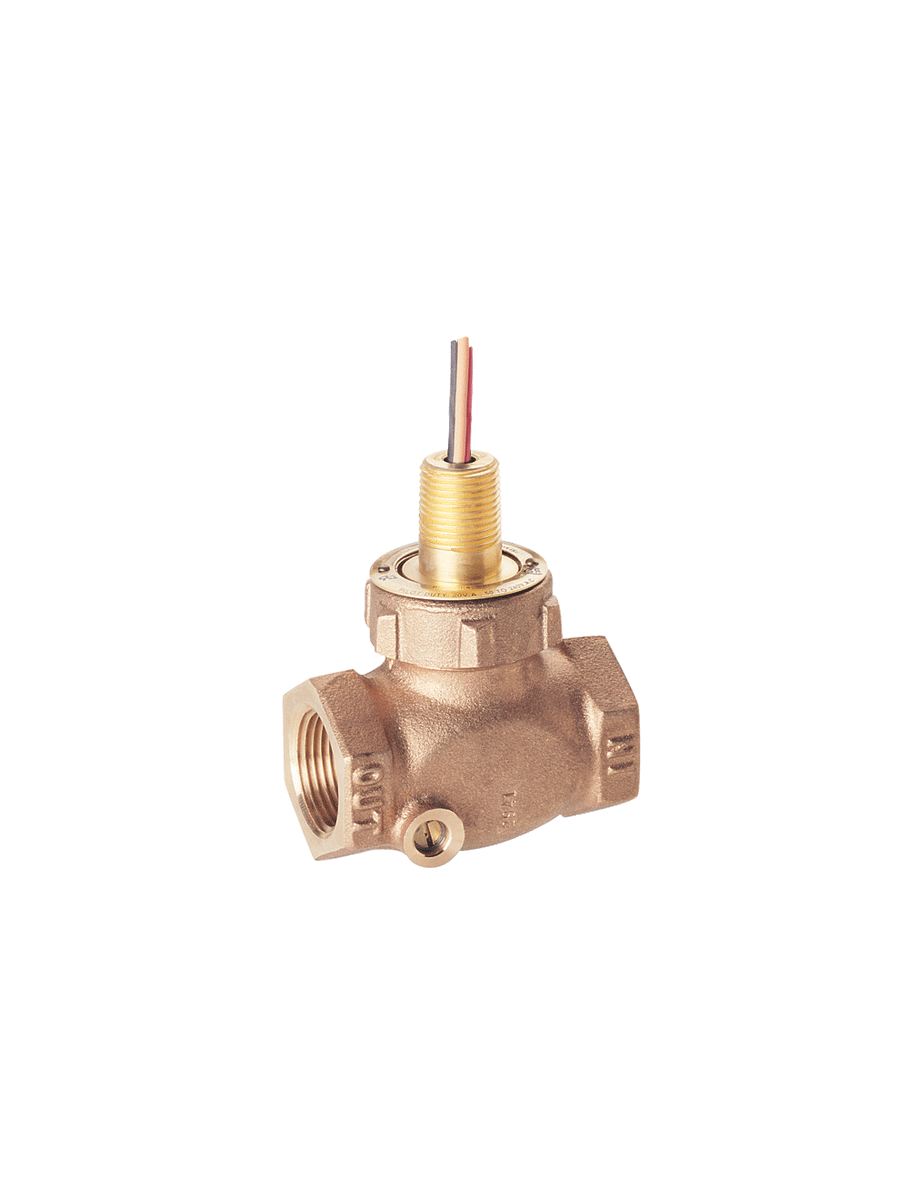

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GVS-112

Jump to: Overview & Specifications Reviews

Overview Details for GVS-112

See catalog product page for full listing

Globe valve switch | actuation set point 5.0-15.0 GPM (18.9-56.8 LPM).

Series GVS Globe Valve Switch

Adjustable Set Point, Rugged Bronze Construction, Straight Through Flow

The Series GVS Globe Valve Switches offer accurate flow detection with 1% repeatability and external adjustability over a broad range of flow settings for compatible liquids.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Detection of improper flow rates in high volume lubrication
Low flow detection in cooling lines
Flow detection in process systems

Externally adjustable flow set point
Durable construction delivers long-life reliability in either water or oil
Ample space for flow to pass keep pressure drop low

Specifications

Series: GVS Globe Valve Switch
Category/Type: Flow
Type: Flow Switches
Series: GVS Globe Valve Switch
Service: Compatible liquids.
Wetted Materials: Housing: Bronze; Shuttle: TFE; Bonnet: Bronze; Spring: 316SS; Other: Fluoroelastomer; ceramic.
Temperature Limits: -20 to 200°F (-29 to 93°C).
Pressure Limits: 400 psig (27 bar) @ 100°F (38°C).
Accuracy: ±10%.
Repeatability: 1% maximum deviation.
Switch Type: SPDT.
Electrical Rating: .17 A @ 120 VAC; .08 A @ 240 VAC; .13 A @ 120 VDC; .06 A @ 240 VDC.
Electrical Connections: 18 AWG; 24" (61 cm) length; Polymeric lead wires.
Process Connections: 1" female NPT.
Mounting Orientation: Any position. Set points shown are based on horizontal; lead wires up positional.
Required Filtration: 150 microns or better.
Weight: 2 lb; 8 oz (1.16 kg).
Agency Approval: CE.
