GG2 | Gage guard with fluoroelastomer diaphragm. | Dwyer
Gage guard with fluoroelastomer diaphragm.

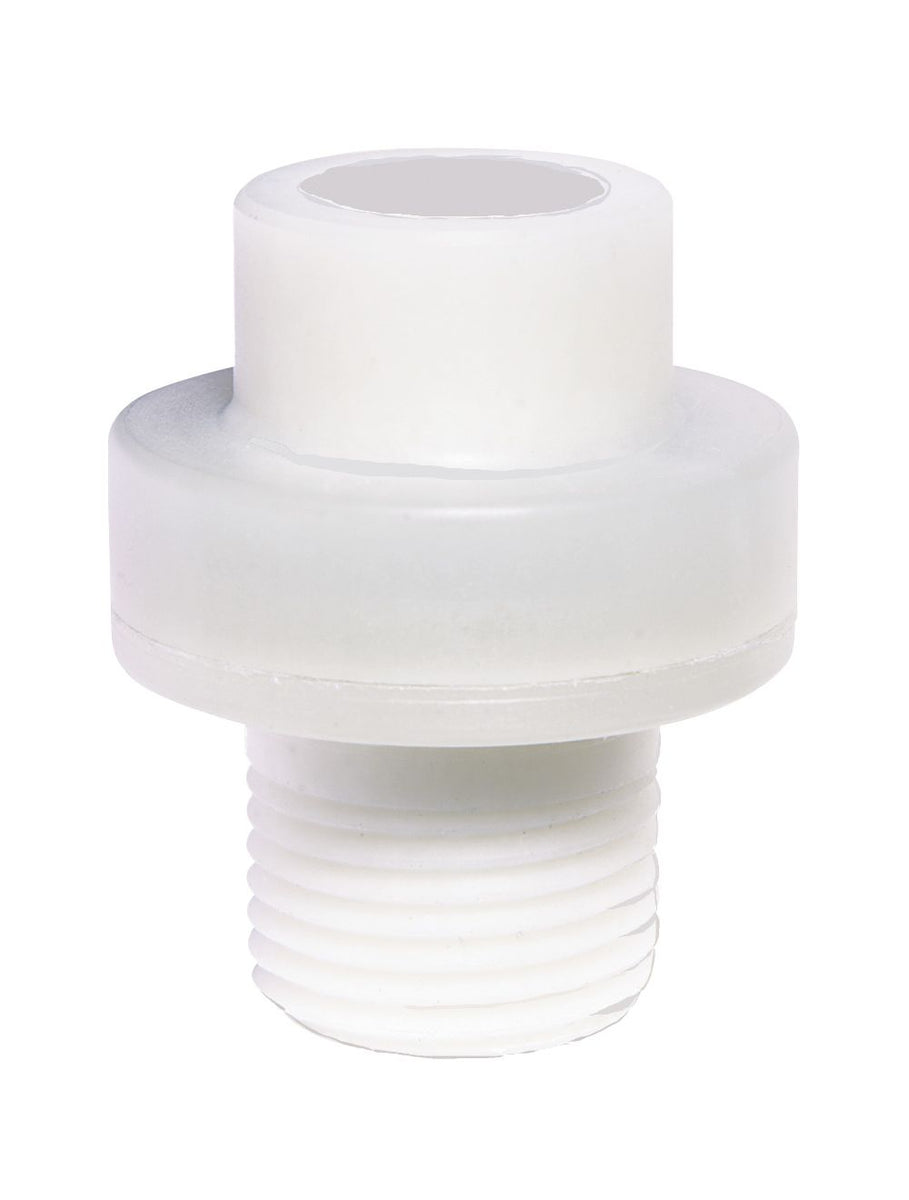

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GG2
Documents and manuals
Dwyer GG2 Documents
Overview
Details for GG2
See catalog product page for full listing
Gage guard with fluoroelastomer diaphragm.
Series GG Gage Guard
Protective Instrument from Process Fluids
Protecting pressure or vacuum instruments from clogging, corrosion, or damage, the Series GG Gage Guard provides a protective barrier between the process fluid and the instrument. The hermetically-sealed uni-body protects from the possibility of leaking. Glass-filled Polypropylene housing is suitable for most inorganic chemicals and temperatures up to 185°F (85°C). A fluid fill station is recommended for proper installation.
Specifications
- Series
- GG Gage Guard
- Category/Type
- Accessories
- Type
- Gage Guards/Pressure Snubbers
- Series
- GG Gage Guard
- Maximum Pressure
- Liquids: 160 psi (11 bar) @ 70 to 185°F (21 to 85°C); Gases: 100 psi (6.9 bar) @ 70 to 100°F (21 to 38°C) and 30 psi (2.1 bar) @ 100 to 185°F (38 to 85°C).
- Accuracy
- ±4%.
- Maximum Temperature
- 185°F (85°C).
- Wetted Parts
- Glass-filled Polypropylene housing; Buna-N or fluoroelastomer diaphragm.
- Dimensions
- 1/4" female NPT instrument side; 1/2" male NPT system side; 1-3/8" (35 mm) diameter.
