GG1 | Gage guard with Buna-N diaphragm. | Dwyer

Gage guard with Buna-N diaphragm.

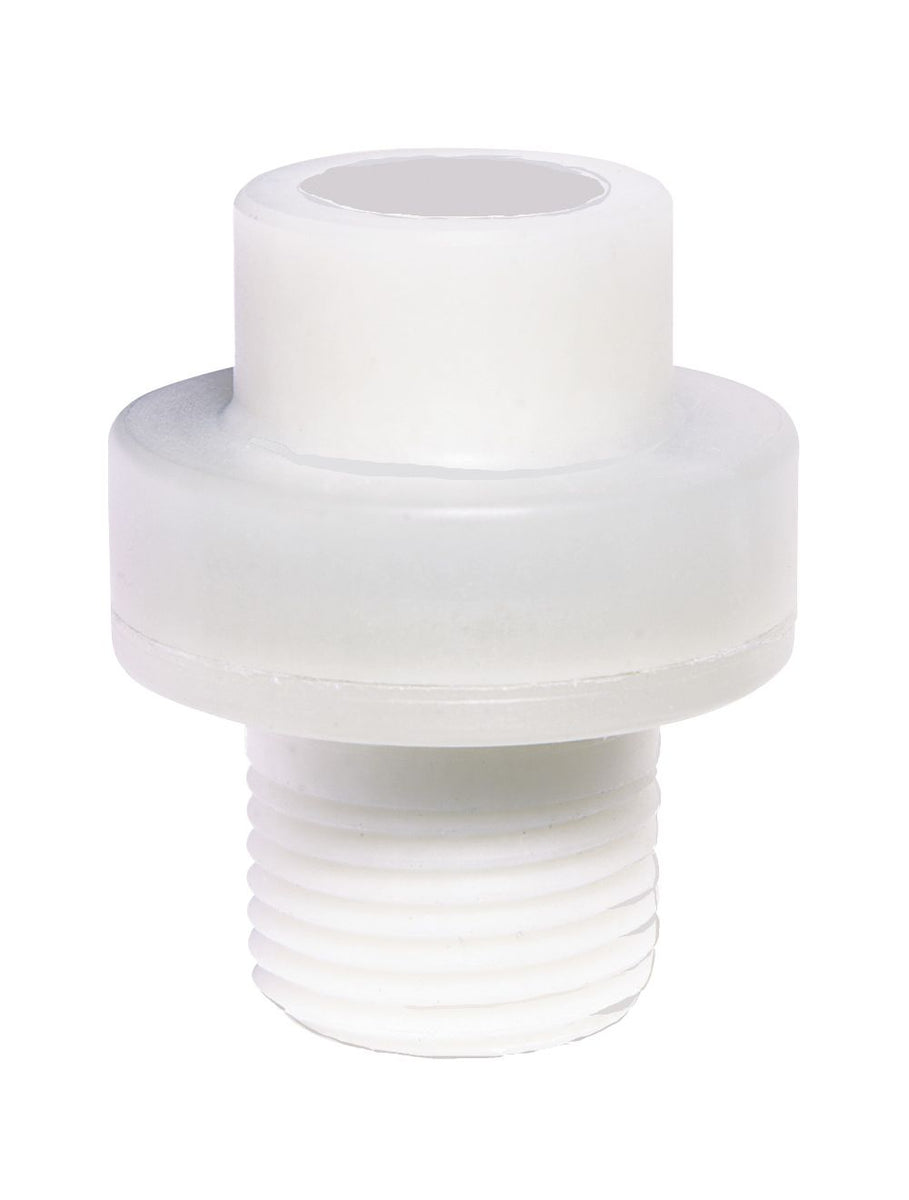

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GG1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer GG1 Documents

GG Series GG Catalog Page More Info

Overview

Details for GG1

See catalog product page for full listing

Gage guard with Buna-N diaphragm.

Series GG Gage Guard

Protective Instrument from Process Fluids

Protecting pressure or vacuum instruments from clogging, corrosion, or damage, the Series GG Gage Guard provides a protective barrier between the process fluid and the instrument. The hermetically-sealed uni-body protects from the possibility of leaking. Glass-filled Polypropylene housing is suitable for most inorganic chemicals and temperatures up to 185°F (85°C). A fluid fill station is recommended for proper installation.

Specifications

Series: GG Gage Guard
Category/Type: Accessories
Type: Gage Guards/Pressure Snubbers
Series: GG Gage Guard
Maximum Pressure: Liquids: 160 psi (11 bar) @ 70 to 185°F (21 to 85°C); Gases: 100 psi (6.9 bar) @ 70 to 100°F (21 to 38°C) and 30 psi (2.1 bar) @ 100 to 185°F (38 to 85°C).
Accuracy: ±4%.
Maximum Temperature: 185°F (85°C).
Wetted Parts: Glass-filled Polypropylene housing; Buna-N or fluoroelastomer diaphragm.
Dimensions: 1/4" female NPT instrument side; 1/2" male NPT system side; 1-3/8" (35 mm) diameter.
