GFT2-15-RS485 | Flow totalizer | 4-20 mA input | RS-485 serial communication. | Dwyer

Flow totalizer, 4-20 mA input, RS-485 serial communication.

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GFT2-15-RS485

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer GFT2-15-RS485 Documents

Instruction Manual Series GFT2 Catalog Page More Info

Overview

Details for GFT2-15-RS485

See catalog product page for full listing

Flow totalizer | 4-20 mA input | RS-485 serial communication.

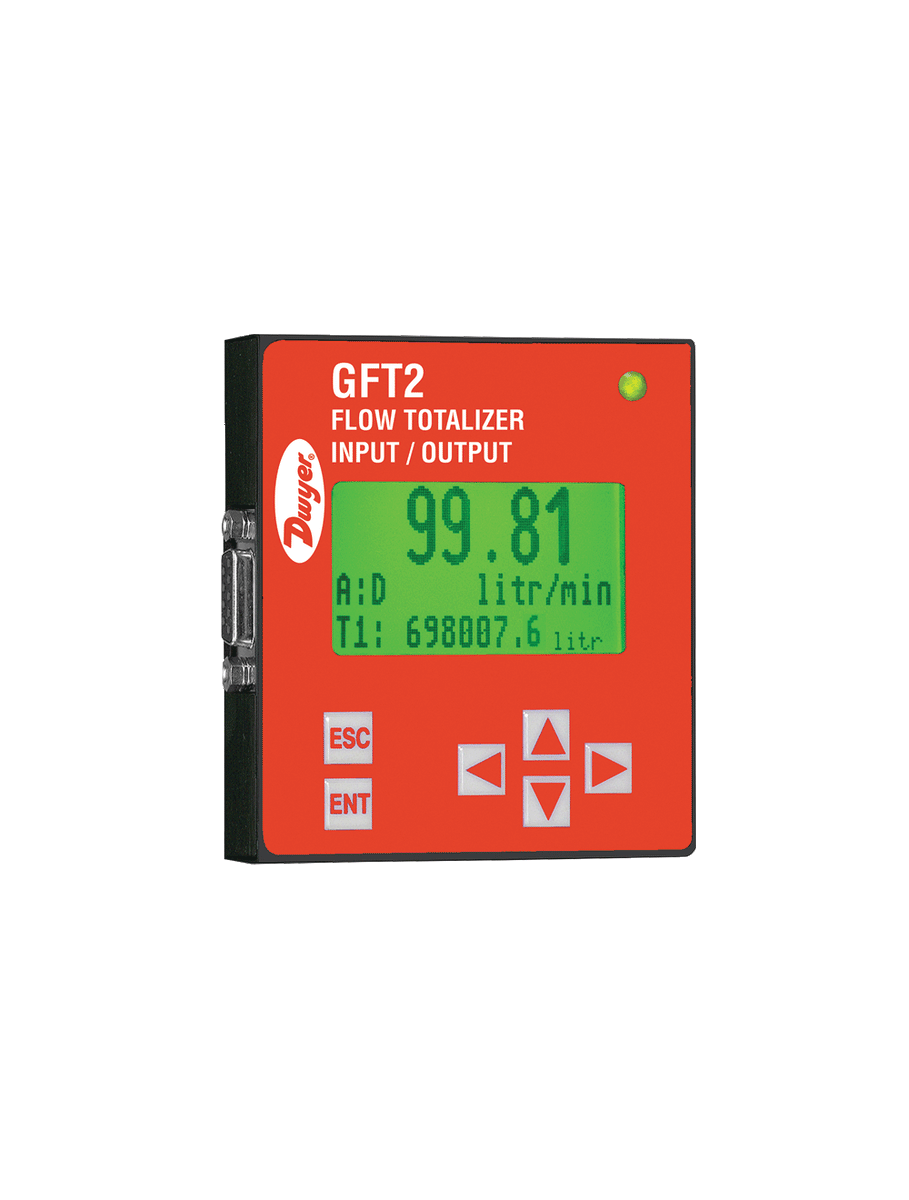

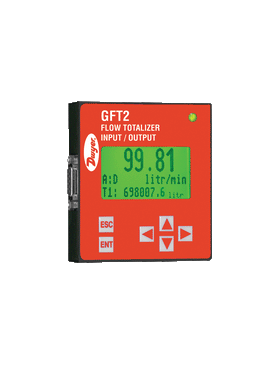

Series GFT2 Flow Totalizer

Graphic LCD, Digital RS-232 or RS-485 Interface

The Series GFT2 Flow Totalizer is a microcontroller driven device designed to linearize the flow meter and controller flow curve plus display the instantaneous flow rate, total, and accumulated total. The totalizer is intended to be used with analog flow meters and controllers with analog 0 to 5 VDC, 0 to 10 VDC, or 4 to 20 mA interface. RS-232 or RS- 485 digital interface is available.

Up to 47 different volumetric and mass flwo engineering units (including user-defined)
User adjustable LCD backlight and contrast level
Compact design for unit mount, panel mount, wall mount, or field mount applications
Low and high flow alarms for programmable action delay
Free configuration and mounting utility software
0.51" (13 mm) LCD digits for flow rate, and 0.21" (5.5 mm) digits for total
