Documents: GFT2-10-RS232

Instruction Manual Series GFT2 Catalog Page More Info

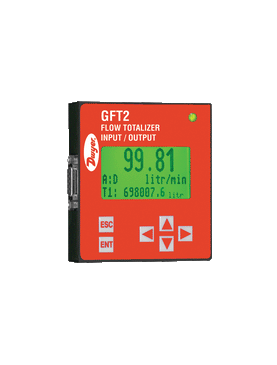

GFT2-10-RS232 | Flow totalizer | 0-10 VDC input | RS-232 serial communication. | Dwyer

Flow totalizer, 0-10 VDC input, RS-232 serial communication.

Brand: DwyerSKU: GFT2-10-RS232

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GFT2-10-RS232

Jump to: Overview & Specifications Reviews

Overview Details for GFT2-10-RS232

See catalog product page for full listing

Flow totalizer | 0-10 VDC input | RS-232 serial communication.

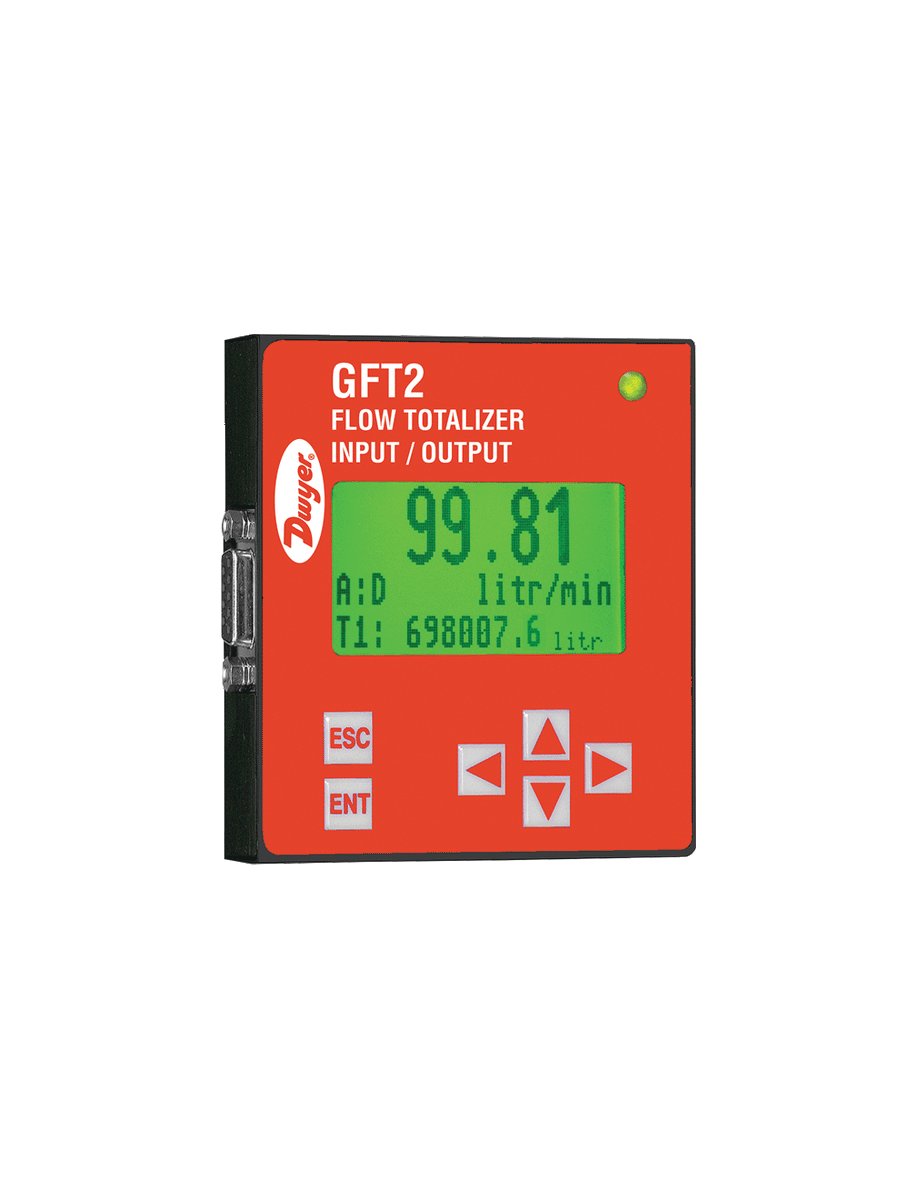

Series GFT2 Flow Totalizer

Graphic LCD, Digital RS-232 or RS-485 Interface

The Series GFT2 Flow Totalizer is a microcontroller driven device designed to linearize the flow meter and controller flow curve plus display the instantaneous flow rate, total, and accumulated total. The totalizer is intended to be used with analog flow meters and controllers with analog 0 to 5 VDC, 0 to 10 VDC, or 4 to 20 mA interface. RS-232 or RS- 485 digital interface is available.

Up to 47 different volumetric and mass flwo engineering units (including user-defined)
User adjustable LCD backlight and contrast level
Compact design for unit mount, panel mount, wall mount, or field mount applications
Low and high flow alarms for programmable action delay
Free configuration and mounting utility software
0.51" (13 mm) LCD digits for flow rate, and 0.21" (5.5 mm) digits for total
