GFM-1108 | Gas mass flow meter | range 0-2 LPM. Specified flow range is for an equivalent flow of nitrogen at 70┬°F (21┬°C) @ 760 mm Hg | 1/4" compression fitting. | Dwyer
Gas mass flow meter, range 0-2 LPM. Specified flow range is for an equivalent flow of nitrogen at 70┬°F (21┬°C) @ 760 mm Hg, 1/4" compression fitting.
Documents and manuals
Dwyer GFM-1108 Documents
Overview
Details for GFM-1108
Gas mass flow meter | range 0-2 LPM. Specified flow range is for an equivalent flow of nitrogen at 70┬°F (21┬°C) @ 760 mm Hg | 1/4" compression fitting.

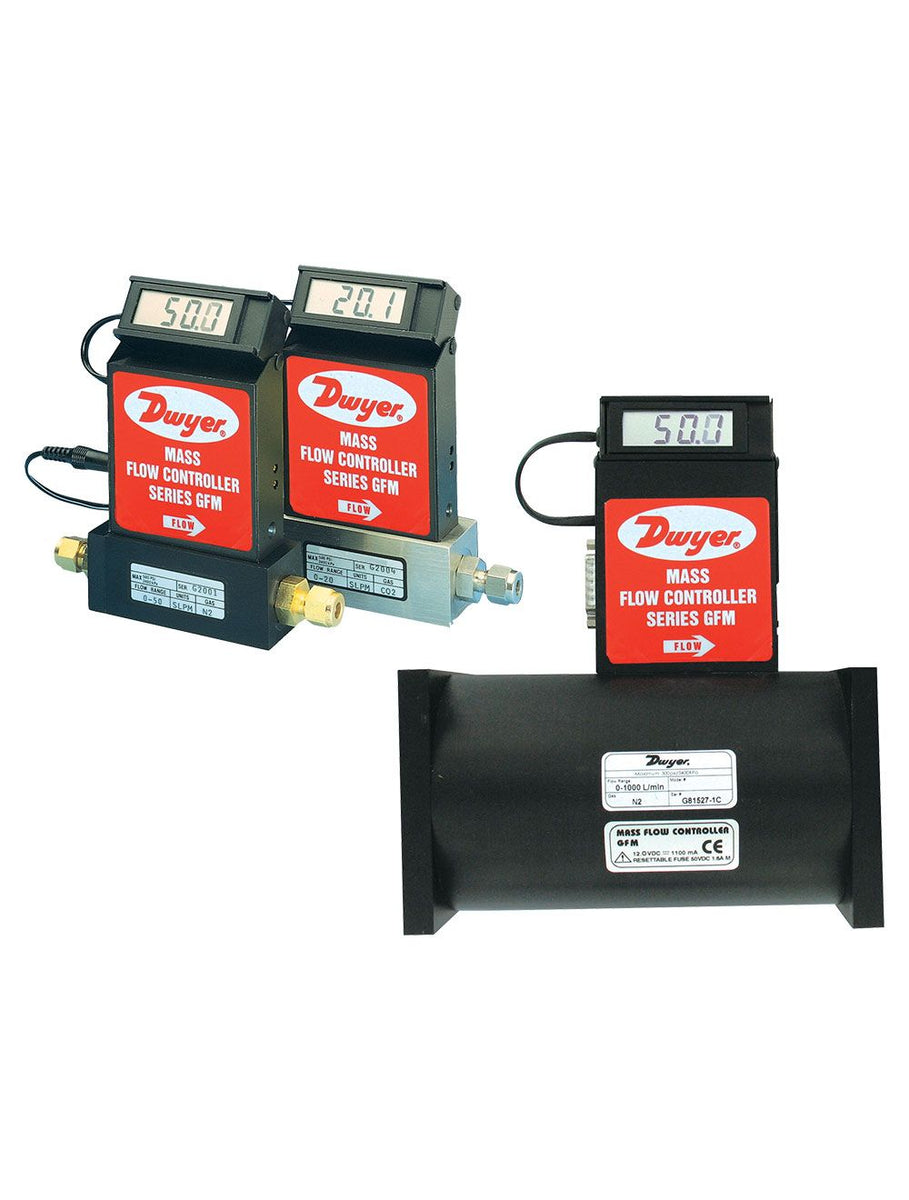

Series GFM Gas Mass Flow Meter
Series GFM Gas Mass Flow Meters combine a straight tube sensor with a restrictor flow element to provide high accuracy and repeatability. Flow rates are virtually unaffected by temperature and pressure variations. Actual gas flow is displayed in engineering units on a 3-1/2 digit, 90° tiltable LCD readout. Units can be used with Series GFT Flow Totalizer for applications requiring totalization. Series GFM includes a NIST traceable certificate.
Note: These units require a cable, see GFM-CBL4 or GFM-CBL5, depending on your needs.
Specifications
- Series
- GFM Gas Mass Flow Meter
- Category/Type
- Flow
- Type
- Mass Flowmeters and Controllers
- Series
- GFM Gas Mass Flow Meter
- Service
- Clean gases compatible with wetted parts.
- Wetted Materials
- GFM-1XXX: anodized aluminum; brass; 316 SS and fluoroelastomer o-rings; GFM-2XXX: 316 SS and fluoroelastomer o-rings.
- Accuracy
- ±1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series X143; X144; X145; ±1.5% FS.
- Repeatability
- ±0.25% of FS.
- Response Time
- 2 seconds to within ±2% of actual flow.
- Output
- Linear 0-5 VDC and 4-20 mA.
- Maximum Particulate Size
- 5 microns.
- Temperature Limits
- 32 to 122°F (0 to 50°C).
- Power Supply
- ±12 VDC.
- Process Connections
- 1/4" compression fitting for flow rates ≤50 L/m; 3/8" for 100 and 200 L/m; 1/2" for 500 L/min; 3/4" for 1000 L/min.
- Pressure Limits
- 1000 psig (68.9 bar); Series GFM-X143; X144; X145; 500 psig (34.5 bar).
- Leak Integrity
- 1 x 10-9 sccs of Helium.
- Display
- 90° tiltable; 3-1/2 digit.
- Agency Approvals
- CE.
