GFD3DA | Flanged aluminum level switch | aluminum housing | Urethane diaphragm | SPDT switch. | Dwyer
Flanged aluminum level switch, aluminum housing, Urethane diaphragm, SPDT switch.

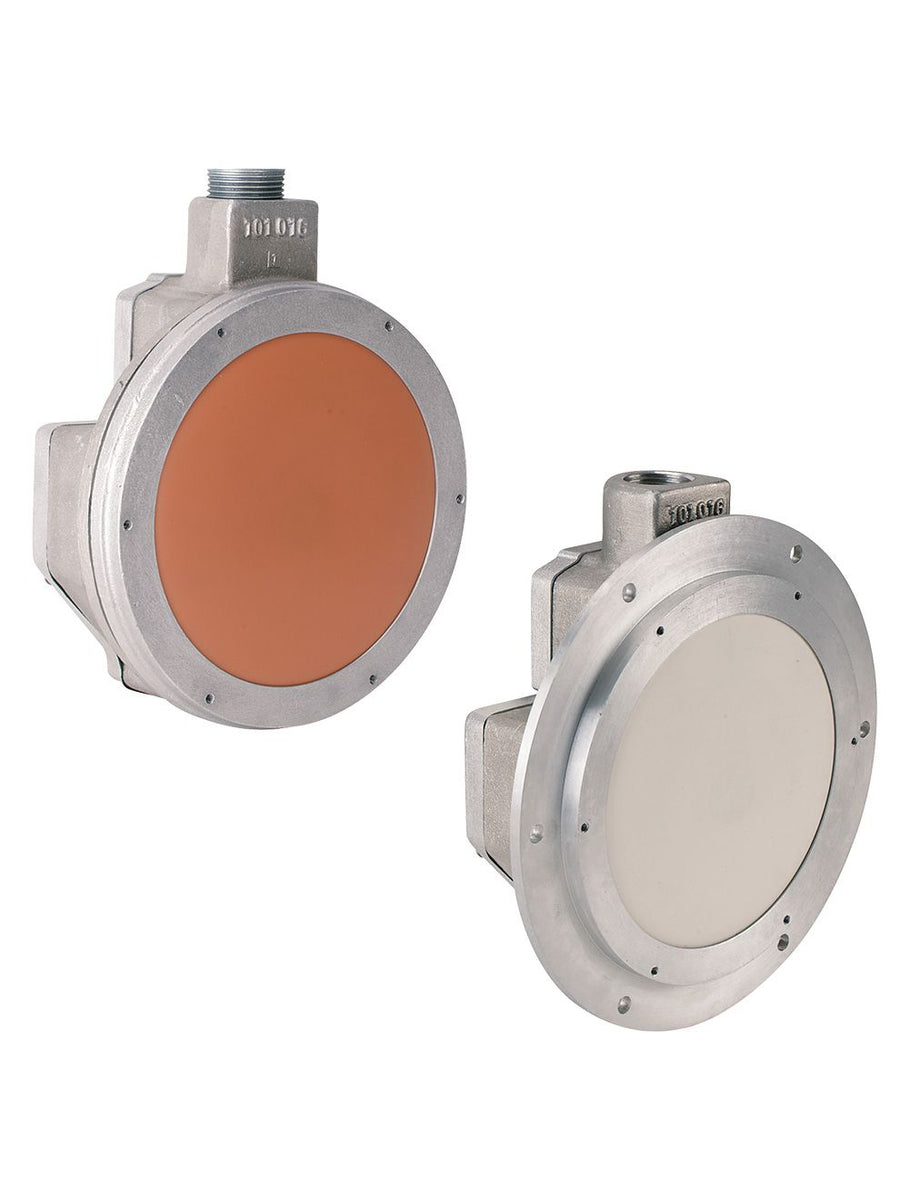

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GFD3DA
Documents and manuals
Dwyer GFD3DA Documents
Overview
Details for GFD3DA
See catalog product page for full listing
Flanged aluminum level switch | aluminum housing | Urethane diaphragm | SPDT switch.
Ultra-Mag™ Explosion-proof Level Switch
For Powder & Bulk Solids
- Uses a unique magnetic linkage which isolates the electrical compartment from controlled product, reducing maintenance and improving sensitivity
- Sealed switch compartment and sealed leads yield the exceptionally reliable operation
- A wide selection of diaphragms and switches is available with choices of flange or suspension mounting to fit a specific application
- Extremely sensitive indication and very economical
- Magnetic linkage makes this simple explosion-proof diaphragm switch the most rugged and reliable level control for a variety of products
Specifications
- Service
- Compatible powder or bulk solids.
- Wetted Materials
- Mounting Flange: See Catalog Page. Aluminum or 304 SS. Diaphragm: See Catalog Page. Urethane; Buna-N; PTFE; Silicone Rubber; Polyester; Fluoroelastomer; White Buna-N (food grade); or EPDM.
- Temperature Limits
- Depends on diaphragm material; see Catalog Page. Standard switch: -40 to 185°F (-40 to 85°C); high temperature switch: -40 to 350°F (-40 to 176°C).
- Pressure Limit
- 60 psig (4.14 bar).
- Enclosure Rating
- General purpose or weatherproof and explosion-proof. See Catalog Page.
- Switch Type
- See Catalog Page.
- Electrical Rating
- See Catalog Page.
- Electrical Connections
- 18 gage solid core; 600 volt TEW 105°C; style 1015. Epoxy sealed at conduit entrance. 12" (304.8 mm) long.
- Conduit Connection
- 1/2" female NPT.
- Process Connection
- For flanged models standard is 8-3/8" (212.725 mm) diameter bolt hole circle.
- Mounting Orientation
- Flange mount or suspend depending on model.
- Set Point Adjustment
- Internal screw.
- Options
- Suspension kits and flange adaptor rings.
- Weight
- 7 lb (3.18 kg).
- Agency Approvals
- UL.
