Documents: GFC-1109

Instruction Manual Series GFC Catalog Page More Info

GFC-1109 | Gas mass flow controller | range 0-5 LPM. Specified flow range is for an equivalent flow of nitrogen at 70°F (21°C) @ 760 mm Hg | 1/4" compression fitting. | Dwyer

Gas mass flow controller, range 0-5 LPM. Specified flow range is for an equivalent flow of nitrogen at 70°F (21°C) @ 760 mm Hg, 1/4" compression fitting.

Brand: DwyerSKU: GFC-1109

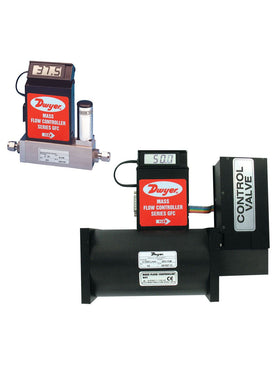

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GFC-1109

Jump to: Overview & Specifications Reviews

Overview Details for GFC-1109

See catalog product page for full listing

Gas mass flow controller | range 0-5 LPM. Specified flow range is for an equivalent flow of nitrogen at 70°F (21°C) @ 760 mm Hg | 1/4" compression fitting.

Series GFC Gas Mass Flow Controllers

Flow Range Up to 1000 L/min, Pressures Up to 1000 psi, NIST Traceable

The Series GFC Gas Mass Flow Controllers combine a straight tube sensor with a restrictor flow element. It is available for flow ranges up to 1000 L/min and offered in aluminum or 316 SS in 1/4", 3/8", 1/2" and 3/4" sizes.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Gas flow measurement
Gas flow control
Operating pumps and valves
Process equipment
Vacuum processes
Glass and metal coating
Film depostition

Provides high accuracy and repeatability
Flow rates are virtually unaffected by temperature and pressure variations
Utilizes an electromagnetic valve and PID electronics to maintain continuous controlby comparing measured sensor signal set to flow rates
Set points can be adjusted with local potentiometers or remotely via 0 to 5 VDC or 4to 20 mA analog signal
Actual gas flow is displayed in engineering units on a 3-1/2 digit, 90° tiltable LCDreadout
Can be used with Series GFT2 Flow Totalizer for applications requiring totalization
NIST traceable certificate included

Specifications

Series: GFC Gas Mass Flow Controllers
Category/Type: Flow
Type: Mass Flowmeters and Controllers
Series: GFC Gas Mass Flow Controllers
Service: Clean gases compatible with wetted parts.
Wetted Materials: GFC-1XXX: Anodized aluminum; brass; 316 SS and fluoroelastomer O-rings; GFC-2XXX: 316 SS and fluoroelastomer O-rings.
Accuracy: ±1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143; X144; X145; ±1.5% FS.
Repeatability: ±0.5% of FS.
Response Time: 2 seconds to within ±2% of actual flow.
Output: Linear 0 to 5 VDC and 4 to 20 mA.
Maximum Particulate Size: 5 microns.
Temperature Limits: 32 to 122°F (0 to 50°C).
Power Supply: ±12 VDC.
Process Connections: 1/4" compression fitting for flow rates ≤50 L/m; 3/8" for 100 and 200 L/m; 1/2" for 500 L/min; 3/4" for 1000 L/min.
Pressure Limits: 1000 psig (68.9 bar); Series GFC-X143; X144; X145; 500 psig (34.5 bar).
Leak Integrity: 1 x 10-9 sccs of He.
Display: 90° tiltable; 3-1/2 digit.
Agency Approvals: CE.
