Documents: FSW2-DNPN-10

Instruction Manual Series FSW2 Catalog Page More Info

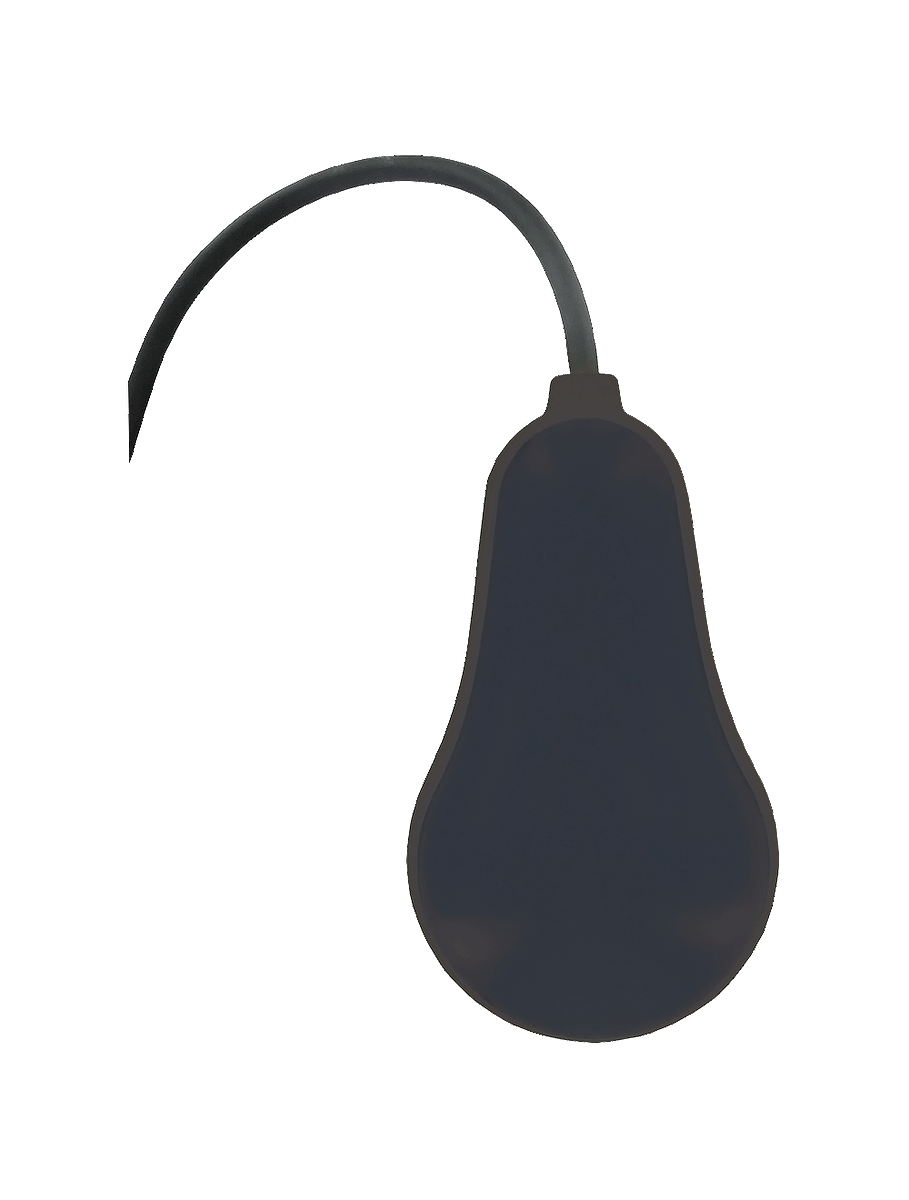

FSW2-DNPN-10 | Free floating sewage water level switch | PVC cable | SPDT | 10 ft (3.05 m) cable | Dwyer

Free floating sewage water level switch, PVC cable, SPDT, 10 ft (3.05 m) cable

Brand: DwyerSKU: FSW2-DNPN-10

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to FSW2-DNPN-10

Jump to: Overview & Specifications Reviews

Overview Details for FSW2-DNPN-10

See catalog product page for full listing

Free floating sewage water level switch | PVC cable | SPDT | 10 ft (3.05 m) cable

Series FSW2 Free-Floating Level Switch

Designed for Industrial Applications, Mercury-Free, Self Counter-Weighted

The Series FSW2 Free-Floating Cable Floate Level Switch is a mercury-free self counter-weighted floating switch designed for the automation of pumps, specifically filling and draining of tanks, wells, and reservoirs. The FSW2 body is free of any irregularities making it ideal for use in sewage water applications. The polypropylene body consists of a double airtight chamber with high-pressure melted polypropylene re-injection sealing to ensure a perfect seal against infiltration. Cable hangers are available to suit a variety of mounting applications. Featuring CE approval and optional cables available that include higher chemical compatibility, high temperature durability, oil resistance, and drinking water suitability. Contact factory for piggyback plug option, and cable length options ranging from 10' to 70' (3.04 to 21.34 m).

Product Applications

Wastewater level monitoring
Tank level control
High or low level alarm
Municipal wastewater control
Industrial wastewater control

Body is free of any irregularities allowing substances to effortlessly glide off and consists of a double airtight chamber with high-pressure melted polypropylene re-injection sealing to ensure a perfect seal reducing maintenance events
High reliability with mercury-free, magnetic, mechanical internal design
Economical pricing with multiple option available for increased versatility
Seamless installation with self-counterweighted body and cable hangers to suit a variety of mounting applications

Specifications

Series: FSW2 Free-Floating Level Switch
Category/Type: Level
Type: Level Switches
Series: FSW2 Free-Floating Level Switch
Service: Compatible liquids; slurries.
Wetted Materials: Enclosure: Polypropylene; Cable: PVC.
Operating Temperature:: 32 to 122°F (0 to 50°C).
Pressure Limits: 29 psi (2 bar).
Enclosure Rating: IP68.
Switch Type: See model chart on catalog page.
Electrical Rating: 10 (3) A @ 250 VAC.
Mounting Orientation: Vertical.
Shipping Weight: Enclosure: 2.4 lb (1100 g); Cable: 0.77 oz (21.27 g) per ft.
Agency Approval: CE.
