FSW2-CNPN-50 | Free floating sewage water level switch | PVC cable | SPST | NC | 50 ft (15.24 m) cable | Dwyer
Free floating sewage water level switch, PVC cable, SPST, NC, 50 ft (15.24 m) cable
Documents and manuals
Dwyer FSW2-CNPN-50 Documents
Overview
Details for FSW2-CNPN-50
Free floating sewage water level switch | PVC cable | SPST | NC | 50 ft (15.24 m) cable

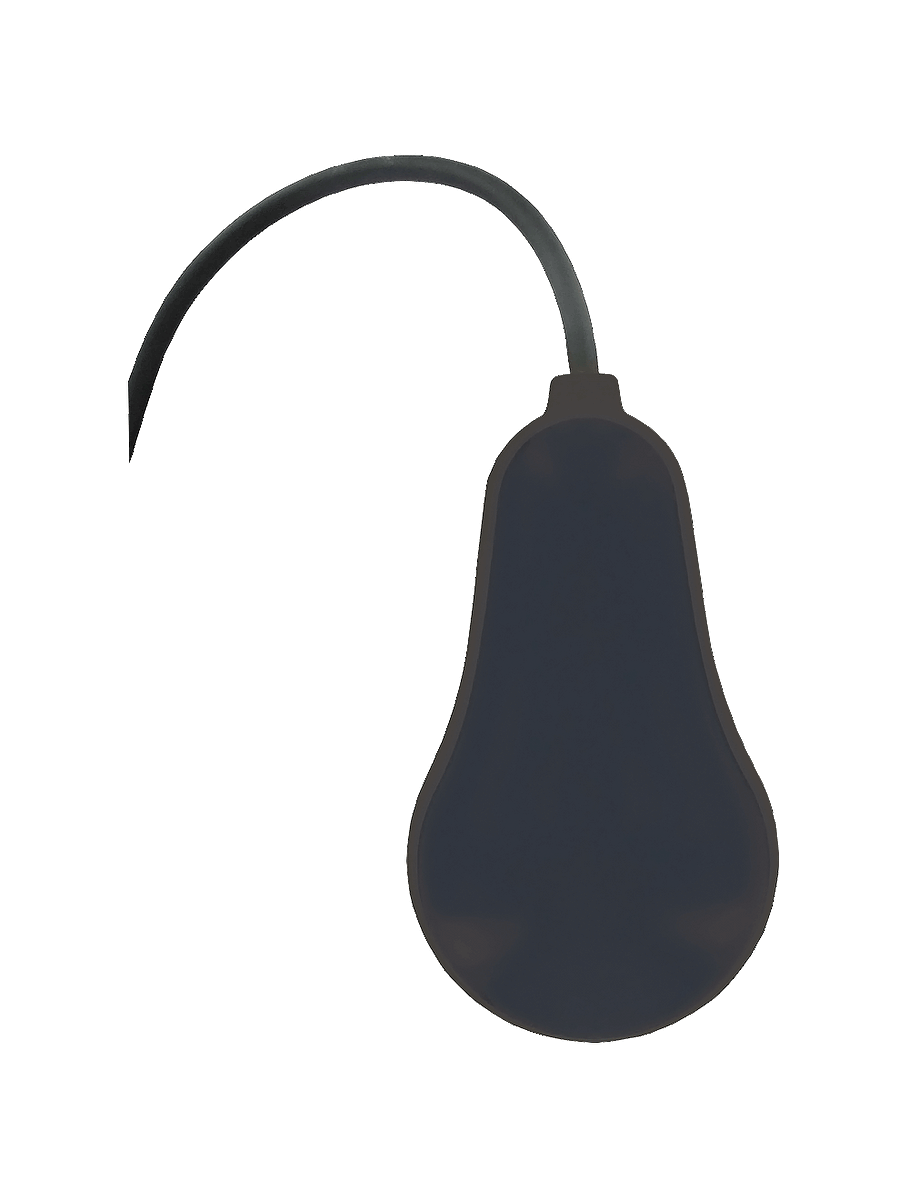

Series FSW2 Free-Floating Level Switch
The Series FSW2 Free-Floating Cable Floate Level Switch is a mercury-free self counter-weighted floating switch designed for the automation of pumps, specifically filling and draining of tanks, wells, and reservoirs. The FSW2 body is free of any irregularities making it ideal for use in sewage water applications. The polypropylene body consists of a double airtight chamber with high-pressure melted polypropylene re-injection sealing to ensure a perfect seal against infiltration. Cable hangers are available to suit a variety of mounting applications. Featuring CE approval and optional cables available that include higher chemical compatibility, high temperature durability, oil resistance, and drinking water suitability. Contact factory for piggyback plug option, and cable length options ranging from 10' to 70' (3.04 to 21.34 m).
Product Applications
- Wastewater level monitoring
- Tank level control
- High or low level alarm
- Municipal wastewater control
- Industrial wastewater control
- Body is free of any irregularities allowing substances to effortlessly glide off and consists of a double airtight chamber with high-pressure melted polypropylene re-injection sealing to ensure a perfect seal reducing maintenance events
- High reliability with mercury-free, magnetic, mechanical internal design
- Economical pricing with multiple option available for increased versatility
- Seamless installation with self-counterweighted body and cable hangers to suit a variety of mounting applications
Specifications
- Series
- FSW2 Free-Floating Level Switch
- Category/Type
- Level
- Type
- Level Switches
- Series
- FSW2 Free-Floating Level Switch
- Service
- Compatible liquids; slurries.
- Wetted Materials
- Enclosure: Polypropylene; Cable: PVC.
- Operating Temperature:
- 32 to 122°F (0 to 50°C).
- Pressure Limits
- 29 psi (2 bar).
- Enclosure Rating
- IP68.
- Switch Type
- See model chart on catalog page.
- Electrical Rating
- 10 (3) A @ 250 VAC.
- Mounting Orientation
- Vertical.
- Shipping Weight
- Enclosure: 2.4 lb (1100 g); Cable: 0.77 oz (21.27 g) per ft.
- Agency Approval
- CE.
