F710N | Nylon liquid/particle filter with 1/8" NPT connection and 3.05 in³ internal volume. | Dwyer
Nylon liquid/particle filter with 1/8" NPT connection and 3.05 in³ internal volume.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F710N
Documents and manuals
Dwyer F710N Documents
Overview
Details for F710N
See catalog product page for full listing
Nylon liquid/particle filter with 1/8" NPT connection and 3.05 in³ internal volume.

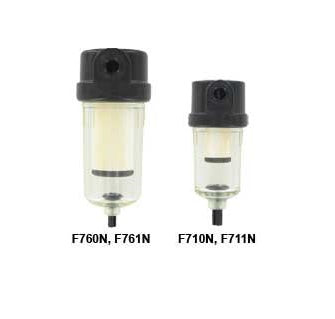

Series F700 Nylon Filter
Ideal For Filtering Liquids and Gasses in Low Pressure Systems
The F700 Series of filters is ideal for the filtering of liquids or gasses in low pressure systems. The nylon construction is resistant to harmful components often found in sample streams. Replaceable filter elements remove particles and droplets as small as .01 micron with 95% efficiency.
Specifications
- Series
- F700 Nylon Filter
- Category/Type
- Accessories
- Type
- Filters; Regulators and Lubricators
- Series
- F700 Nylon Filter
- Filtration Efficiency
- 95% (removal of .01 micron particles).
- Maximum Pressure
- 100 psig (6.89 bar).
- Maximum Temperature
- 120ºF (49ºC).
- Max. Flow at 100 psig (6.98 bar)
- F710N; F711N: 23 SCFM (651 lpm); F760N; F761N: 27 SCFM (765 lpm).
- Inlet & Outlet Ports
- F710N: 1/8" NPT; F711N; F760N: 1/4" NPT; F761N: 1/2" NPT.
- Mounting
- In-line only.
- Materials of Construction
- Complete nylon construction (head; bowl; internals) with a Fluorocarbon (FKM) o-ring seal.
- Internal Volume
- F710N; F711N: 3.05 in³ (50 cc [mL]); F760N; F761N: 10.5 in³ (172 cc [mL]).
- Weight
- F710N; F711N: .15 lb (.068 kg); F760N; F760N: .4 lb (.18 kg).
