F6-SS | Vertical level switch | 316SS float and stem | temperature limit 257°F (125°C) | pressure limit 218 psig (15 bar) | 1/8" male NPT mounting | Dwyer
Vertical level switch, 316SS float and stem, temperature limit 257°F (125°C), pressure limit 218 psig (15 bar), 0.65 min. specific gravity, electrical rating 20 VA: 0.08A @ 240 VAC, 22 AWG 11.8" (30 cm) wire leads, 1/8" male NPT mounting, weight 1.59 oz (45 g).

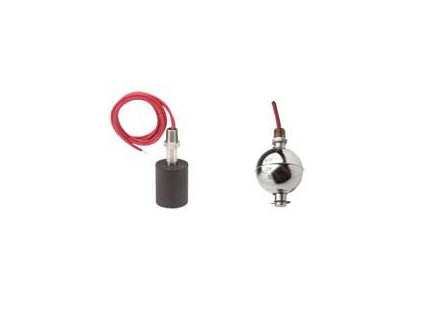

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6-SS
Documents and manuals
Overview
Details for F6-SS
See catalog product page for full listing
Vertical level switch | 316SS float and stem | temperature limit 257°F (125°C) | pressure limit 218 psig (15 bar) | 1/8" male NPT mounting
Series F6 & F7 Level Switches – Vertical
Low Cost, Reliable and Compact, Hermetically Sealed Contacts
The Series F6 & F7 Vertical Level Switches are designed to be mounted at themaximum or minimum level point to provide level indication and control. Models areshipped with normally open switch contacts which close as the float rises toward themounting threads.
Product Applications
- Water level monitoring
- Oil level control
- Chemical level indication
- Sumps
- Stand pipes
- Tank level control
- High viscosity liquids
- Combine low cost and reliability with fast, simple installation
- Hermetically sealed reed switches are actuated by magnets permanently bonded inside the float and can be easily adapted to open or close a circuit on rising or falling levels
- Easily reverse switch action by removing the float, rotating it end-for-end and replacing it on the stem
- Vertical models mount internally, oriented within 30° of vertical, or select optional fittings for external mounting
- Switch ratings are suitable for many solid state control systems and monitors or alarms
- Simple relay interfaces can be used for higher current applications
Specifications
- Series
- F6 & F7 Level Switches – Vertical
- Category/Type
- Level
- Type
- Level Switches
- Series
- F6 & F7 Level Switches – Vertical
