F6-MHS2 | Horizontal mount level switch | 304SS float and stem | temperature limit 257°F (125°C) | pressure limit 363 psig (25 bar) | 1/2" NPT | Dwyer
Horizontal mount level switch, 304SS float and stem, temperature limit 257°F (125°C), pressure limit 363 psig (25 bar), 0.85 min. specific gravity, electrical rating 70 VA: 0.7A @ 250 VAC, 22 AWG 11.8" (30 cm) wire leads, 1/2" NPT, weight 4.8 oz (136 g).
Documents and manuals
Dwyer F6-MHS2 Documents
Overview
Details for F6-MHS2
Horizontal mount level switch | 304SS float and stem | temperature limit 257°F (125°C) | pressure limit 363 psig (25 bar) | 1/2" NPT

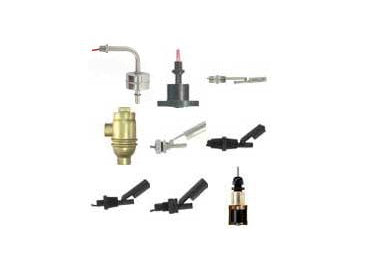

Series F6 & F7 Level Switches - Horizontal/Specialty
The Series F6 & F7 Horizontal Float Level Switches are designed to mount through the walls of tanks and other vessels. Internally mounted models F6-HPS-11, F6-MHS and F7-SS6 are secured to the wall of the tank or vessel from the inside while model F6-HPS-21 is mounted from the outside (externally). Models F7-HSS and F6-MHS2 can be installed internally or externally.
The Series F6 & F7 Specialty Float Level Switches are designed for unique applications. Model F7-SS5B/BNC can be used with viscous liquids or liquids with suspended metal particles. Use model F7-LL for low level detection (≥ 5/8"). The non-intrusive bottle style F7-EB mounts completely outside the tank at the actuation level. Suspend model F7-WBB in stand pipes or sumps for leak detection or drop into wells for ground-water monitoring.
California Residents: Click Here for Proposition 65 WARNING.
Product Applications
- Water level monitoring
- Oil level control
- Chemical level indication
- Sumps
- Stand pipes
- Tank level control
- Hermetically sealed reed switches are actuated by magnets permanently bonded inside the float arm and can be easily adapted to open or close a circuit on rising or falling levels
Specifications
- Series
- F6 & F7 Level Switches - Horizontal/Specialty
- Category/Type
- Level
- Type
- Level Switches
- Series
- F6 & F7 Level Switches - Horizontal/Specialty
