F195 | Disposable in-line filter. | Dwyer

Disposable in-line filter.

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to F195

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer F195 Documents

Model F195 Catalog Page More Info

Overview

Details for F195

See catalog product page for full listing

Disposable in-line filter.

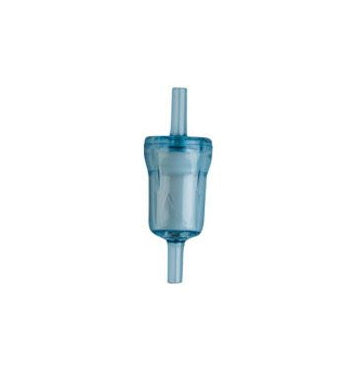

Model F195 Disposable In-Line Filter

Flowmeter Accessories and Options

Remove 99.99% of unwanted particles from within your gas flow with the Model F195 Disposable In-Line Filter. Encapsulated microfiber filter elements are able to filter particles as small as 0.1 micron. Filters are completely disposable - simply remove the filter from your line and throw it away when it becomes dirty. The transparent nylon housing makes it simple to determine if the filter needs to be changed.

Specifications

Item Number	F195
Brand	Dwyer
Category/Type	Accessories
Connections	Barbed for 1/4" I.D. tubing.
Filter Tube Dimensions	0.5. ID . 1.3" length.
Filtration Efficiency	99.99% (removal of 0.1 micron particles).
Housing Construction	Nylon.
Internal Volume	11.5 cc (11.5 ml).
Line Pressure vs. Flow	See Catalog page.
Maximum Differential Pressure	60 psi (4 bar) (in-to-out flow direction); 20 psi (1.4 bar) (out-to-in flow direction).
Maximum Pressure	125 psig (8.6 bar).
Maximum Temperature	230°F @ 0 psig (110°C @ 0 bar); 120°F @125 psig (49°C @ 9 bar).
Type	Filters; Regulators and Lubricators
