EWDP-04-2-L-N-C | EnOcean®-Enabled Differential Pressure Switch | .12-1.61" w.c. | M20x1.5 connection with installer kit | low voltage gold plated | 902 MHz | Dwyer

EnOcean®-Enabled Differential Pressure Switch, .12-1.61" w.c., M20x1.5 connection with installer kit, low voltage gold plated, 902 MHz

Brand: DwyerSKU: EWDP-04-2-L-N-C

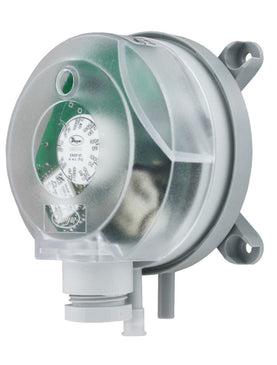

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to EWDP-04-2-L-N-C

Jump to: Overview & Specifications Reviews

Overview Details for EWDP-04-2-L-N-C

See catalog product page for full listing

EnOcean®-Enabled Differential Pressure Switch | .12-1.61" w.c. | M20x1.5 connection with installer kit | low voltage gold plated | 902 MHz

Series EWDP Wireless Communications Adjustable Differential Pressure Switch

EnOcean® Wireless Technology

The Series EWDP Wireless Communication Adjustable Differential Pressure Switch uses EnOcean® wireless technology to monitor pressure, vacuum, and differential pressures. The dual scaled adjustment knob in inches of water column and pascals allows changes to the pressure set point to be made without a pressure gage. The battery-powered switch is equipped with radio module for frequencies of 902 MHz or 868 MHz which sends a signal wirelessly to a Series USB-300 receiver (sold separately) at each change of status. The silicone diaphragm makes this series ideal for use with air and other non-combustible gases. The EWDP is available with settings from 0.08 in w.c. (20 Pa) up to 20 in w.c. (5000 Pa). The compact size, adjustment knob, and wireless capabilities make the EWDP the perfect choice for HVAC applications in temporary installations or retrofits of existing buildings.

Product Applications

Monitoring air filters and ventilators
Monitoring industrial cooling air circuits and ventilation ducts
Overheating protection for fan heaters
Controlling air and fire-protection dampers

Wireless ability allows for easy installation in buildings with concrete or marble walls
No wires need to be connected, allowing for remote monitoring reduces downtime
Dual scaled set point adjustment knob to quickly and easily set the value to activate the switch

Specifications

Series: EWDP Wireless Communications Adjustable Differential Pressure Switch
Category/Type: Pressure
Type: Differential Pressure
Series: EWDP Wireless Communications Adjustable Differential Pressure Switch
Service: Air and non-combustible; compatible gases.
Wetted Materials: Diaphragm material: Silicone; Housing material: POM; Switch Body: PA 6.6; Cover: Polystyrene.
Temperature Limits: Process and Ambient: 14 to 158°F (-10 to 70°C); Storage: -40 to 185°F (-40 to 85°C).
Pressure Limits: 40 in w.c. (10 kPa).
Process Connections: 5/16" (7.94 mm) outside diameter tubing; 1/4" (6.0 mm) inside diameter tubing.
Power Requirements: (1) 3 V CR2032 lithium metal battery; installed nonfunctional;user replaceable (included).
Enclosure Rating: NEMA 3 (IP54).
Mounting Orientation: Vertically; with pressure connections pointing downwards.
Weight: 5.3 oz (150 g).
Agency Approvals: CE.
