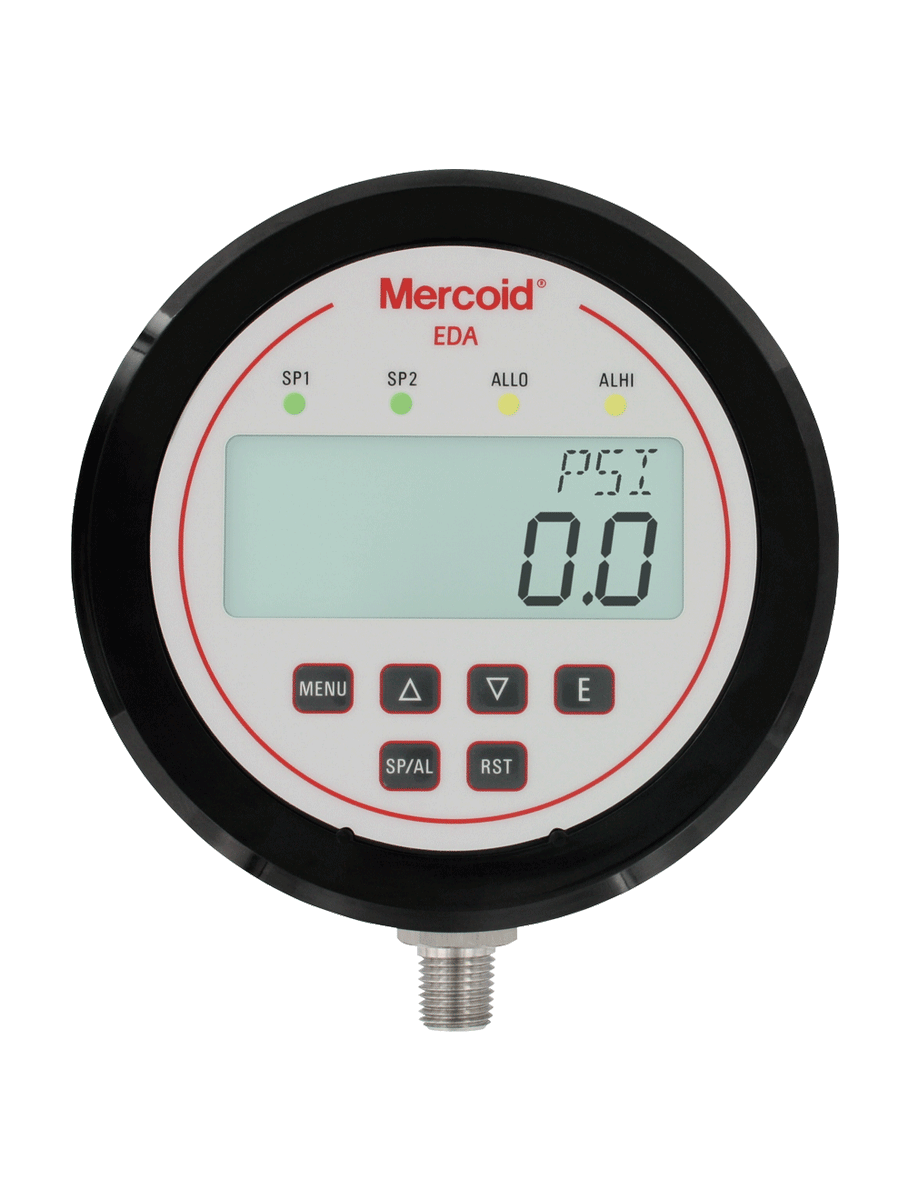

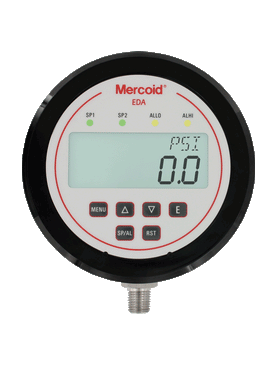

EDAW-N1E1-03T1 | Electronic pressure switch | range 0-60 psi | 1/4" male NPT bottom connection | 316L SS | 2 SPDT relays | 4-20 mA output. | Dwyer

Electronic pressure switch, range 0-60 psi, 1/4" male NPT bottom connection, 316L SS, 2 SPDT relays, 4-20 mA output.

Brand: DwyerSKU: EDAW-N1E1-03T1

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to EDAW-N1E1-03T1

Jump to: Overview & Specifications Reviews

Overview Details for EDAW-N1E1-03T1

See catalog product page for full listing

SERIES EDA ELECTRONIC PRESSURE CONTROLLER

2 Switches, Indicating Gage, and Transmitter in One Package

Series EDA Electronic Pressure Control is an extremely versatile compact package that can replace a separate gage, two switches, and a transmitter in a system saving money, installation time, and panel space. The EDA incorporates two SPDT relays that have the on and off points fully adjustable over the range for control or alarm use. Front face has LED indicators for switch status and a large backlight two-line display showing process value and indication units. Programming is easy with simple menu structure, two-line display, and external programming buttons. Weatherproof housing is ideal for a wide variety of applications with panel mount, flush mount, or pipe mount ability. Features include zero set, adjustable dampening, menu lock out, peak and valley indication, removable terminal blocks, adjustable time delay, and scalable transmitter output.

NIST CALIBRATION available in Product Configurator.

Product Applications

Process control
Compressor control
Filter status
Duct or building static pressure
Damper and fan control

Display Units: psi, kg/cm², bar, in Hg, ft w.c., kPa, MPa, %FS, in w.c., mbar, cm w.c., mm Hg, or oz/in² (choices depend on range).
Test Mode: Simulates input over the range without pressuring to easily test switches and transmitter output feature.
Fail-safe: For sensor failure, over pressure, high temperature limit, low temperature limit, or keypad short. User chooses if relay is de-energized, energized, or no action. With transmitter option, user chooses an output of 3.6 mA22 mA, or no action.
Alternation: Selectable alternation of set points between the relays for even wear on duplex pump applications.
Versatile Compact Package: Can replace a separate gage, two switches, and a transmitter in a system saving, money, installation time, and panel space.
Fully Programmable: To meet simple or complex application needs.
Weatherproof Housing: Ideal for a wide variety of applications with panel mount, flush mount, or pipe mount ability.

Specifications

Series: EDA ELECTRONIC PRESSURE CONTROLLER
Category/Type: Pressure
Type: Single Pressure
Series: EDA ELECTRONIC PRESSURE CONTROLLER
Service: Compatible liquids and gases.
Wetted Materials: 316L SS.
Housing: Polycarbonate.
Accuracy: ±1% of FS including linearity; hysteresis; and repeatability (indicator and transmitter).
Stability: < ±2% of FS per year.
Pressure Limits: 1.5 x range.
Temperature Limits: Ambient: 20 to 140°F (-6.6 to 60°C); Process: 0 to 176°F (-18 to 80°C).
Compensated Temperature Limits: 32 to 122°F (0 to 50°C).
Thermal Effect: ±0.05% of F.S./°F.
Display: 4-digit backlit LCD (Digits: 0.60"H x 0.33"W).
Power Requirements: 12-28 VDC/AC50/60 Hz. (Can work at 8 VDC for 45 s).For T5 option: 14-30 VDC/AC 50/60 Hz.For -HV option: 120-240 VAC.
Power Consumption: 12-28 VDC/VAC:2.5 watts; 120-240 VAC: 4.5 watts.
Electrical Connections: Removable terminal blocks with two 1/2" female NPT conduit connections.
Enclosure Rating: Meets NEMA 4X (IP65).
Warm Up Time: <10 seconds.
Mounting Orientation: Any position.
Weight: 1.18 lbs (535 g).
Agency Approvals: CE; UL.
SWITCH SPECIFICATIONS
Switch Type: 2 SPDT relays.
Electrical Rating: 5 A @ 120/240VAC; 1 A @ 30 VDC.
Repeatability: ±1% of FS (switching only).
Set Points: Adjustable 0-100% of FS.
Switch Indication: External LED for each relay on the front panel.
Switch Reset: Manual or Automatic.
TRANSMITTER SPECIFICATIONS
Output Signal: 4-20 mA; 1-6 VDC; 1-5 VDC; 0-5 VDC; or 0-10 VDC (direct or reverse output selection).
Minimum Excitation: 14 VDC.
Zero and Span Adjustments: Menu scalable within the range.
