DTFO-1B-4O | Range 0-4 gpm oil | 1/4" npt | brass body | Dwyer

Range 0-4 gpm oil, 1/4" npt, brass body

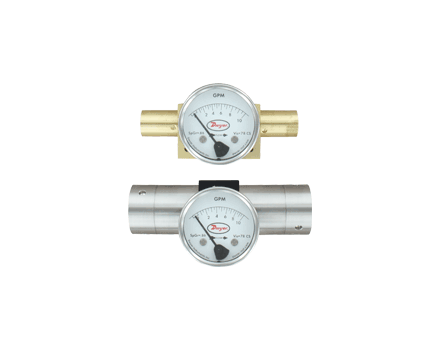

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DTFO-1B-4O

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer DTFO-1B-4O Documents

Service Manual Series DTFO Catalog Page More Info

Overview

Details for DTFO-1B-4O

See catalog product page for full listing

Range 0-4 gpm oil | 1/4" npt | brass body

Series DTFO Variable-Area Flowmeter for Oil

Brass & 316 SS Body, 2% FS Accuracy

The Series DTFO Variable-Area Flowmeter for Liquids measures oil rates with ±2% of full-scale accuracy at an affordable price. Durable metal construction ensures great reliability and the strength to withstand system pressures of up to 3000 psig (200 bar). Available in 1/4", 1/2" and 1" connections for a wide variety of applications. Comes calibrated for horizontal in line mounting.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Monitoring pressure drop across filters or strainers
Flow scale based on differential pressure
Liquid level given pressure differential between bottom and top of tank
Hydraulic equipment
Oil & gas equipment
Heat exchangers
Backflow prevention

Durable metal construction ensures great reliability and the strength to withstandsystem pressures of up to 3000 psig (200 bar)
Shatter proof construction, unlike glass tube variable area flowmeters, yields longoperation life
Preform precisely in high temperature, high vibration, shock-prone environments

Specifications

Series: DTFO Variable-Area Flowmeter for Oil
Category/Type: Flow
Type: Flowmeters
Series: DTFO Variable-Area Flowmeter for Oil
Service: Compatible oils.
Wetted Materials:: >Body: 316 SS or brass;Spring: 302SS;Range spring: 302 SS;Magnet: PTFE-coated;Metering cone: Acetal or PTFE;Seals: Buna.
Temperature Limits: -40 to 200°F ( -40 to 93°C).
Pressure Limit: >DTFO-1B and DTFO-2B: 3000 psig (200 bar);DTFO-3S: 1500 psig (100 bar).
Accuracy: ±2% FS.
Repeatability: ±1% FS.
Size: Diameter dial face 2.5" (63.5 mm).
Process Connections: See catalog page.
Weight: >DTFO-1B: 3 lb (1.36 kg);DTFO-2B: 5 lb (2.27 kg);DTFO-3S: 10 lb (4.54 kg).
