DTFF-1S-40W | Range 0-40 GPH | water calibration | 1/4" npt | Dwyer

Range 0-40 GPH, water calibration, 1/4" npt

Brand: DwyerSKU: DTFF-1S-40W

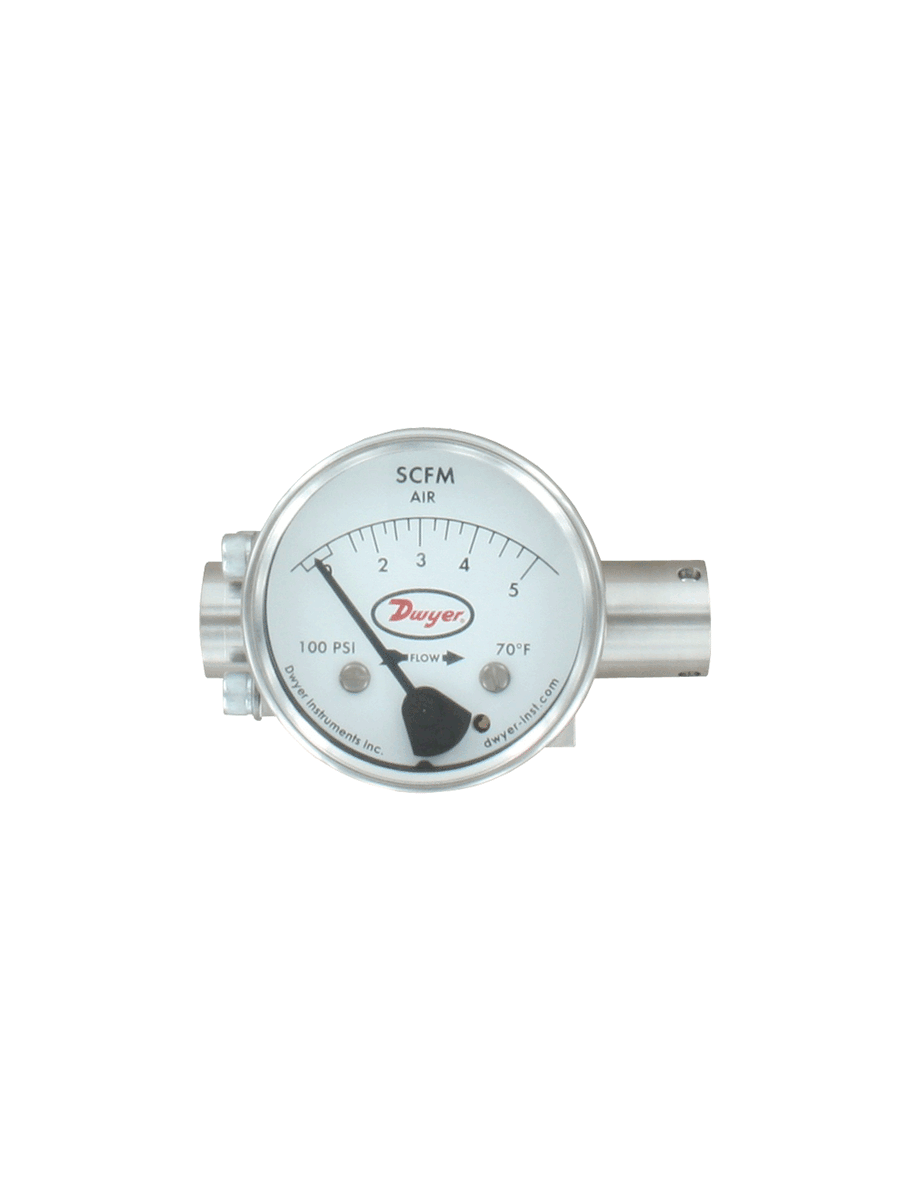

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DTFF-1S-40W

Jump to: Overview & Specifications Reviews

Overview Details for DTFF-1S-40W

See catalog product page for full listing

Range 0-40 GPH | water calibration | 1/4" npt

Series DTFF Fixed-Orifice Flowmeter for Low Flow Rates

316 SS Body, Oil/Gas/Water Calibration

The Series DTFF Fixed-Orifice Flowmeter for Low Flow Rates measures water, oil, or air flow rates with great accuracy at a competitive price. Rugged stainless steel construction ensures great compatibility and is an excellent choice for high line pressure applications, with a maximum pressure of 3000 psig (200 bar). This is all without sacrificing the sensitivity required for low flow measurements. Available in a wide range of flow rates for each calibration, with stainless steel construction as standard. Comes pre calibrated for horizontal in-line mounting.

Specifications

Series: DTFF Fixed-Orifice Flowmeter for Low Flow Rates
Category/Type: Flow
Type: Flowmeters
Series: DTFF Fixed-Orifice Flowmeter for Low Flow Rates
Service: Compatible gases & liquids & oils.
Wetted Materials: >Body: 316 SS;Spring: 302SS;Range spring: 302 SS;Magnet: PTFE-coated;Orifice piston: Acetal;Diaphragm: Fluoroelastomer.
Temperature Limit: -22 to 200°F (30 to 93°C).
Pressure Limit: 3000 psig (200 bar).
Accuracy: Liquid/oil calibration: ±2% FS; Air calibration: ±5% FS.
Repeatability: ±1% FS.
Size: Diameter dial face 2.5" (63.5 mm).
Process Connections: 1/4" female NPT.
Weight: 4 lb (1.81 kg).
