DR4144 | High flow glass flowmeter | flow rate 1-16 SCFM (20-500 SLPM) air. | Dwyer
High flow glass flowmeter, flow rate 1-16 SCFM (20-500 SLPM) air.

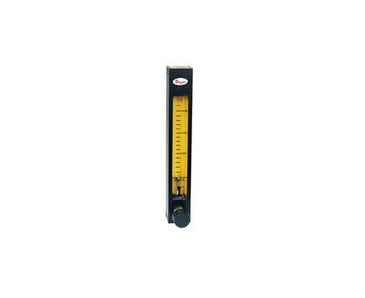

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DR4144
Documents and manuals
Dwyer DR4144 Documents
Overview
Details for DR4144
See catalog product page for full listing
High flow glass flowmeter | flow rate 1-16 SCFM (20-500 SLPM) air.
Series DR4 High Flow Glass Flowmeter
Direct Reading, 127 mm Scale, ±10% FS Accuracy
Series DR4 Glass Flowmeters offer a simplified solution to the problem of fluid flow indication at higher capacity levels. Flowmeters have a direct reading scale for air or water and are designed to withstand even the harshest industrial applications. Permanently fused ceramic scale has integral float guides for optimum float performance. Reflective plastic background and 1.5 X magnification lens reduces eye fatigue and allows for more accurate readings. Units include a safety blow-out back panel for additional protection.
California Residents: Click Here for Proposition 65 WARNING.
Specifications
- Series
- DR4 High Flow Glass Flowmeter
- Category/Type
- Flow
- Type
- Flowmeters
- Series
- DR4 High Flow Glass Flowmeter
- Service
- Compatible gases or liquids.
- Wetted Materials
- Flowtube: Borosilicate glass; Float: 316 SS; Float stops:PTFE; End fittings: Brass or 316 SS; O-rings: Buna-N on brass models andfluoroelastomer on SS models.
- Temperature Limits
- 250°F (121°C).
- Pressure Limits
- 200 psig (13.8 bar).
- Accuracy
- ±10% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute).
- Repeatability
- ±0.25% of scale reading.
- Scale
- Direct reading 127 mm scales for air or water.
- Turn-down Ratio
- 10:1.
- Connection
- 3/8" female NPT.
- Mounting
- Vertical.
- Valve
- 6-turn needle (standard on models with valve).
