DPMX-3-LV | Extra large digital panel meter | red LED segment display | with 10.5 to 30 VAC/VDC supply power. | Dwyer

Extra large digital panel meter, red LED segment display, with 10.5 to 30 VAC/VDC supply power.

Brand: DwyerSKU: DPMX-3-LV

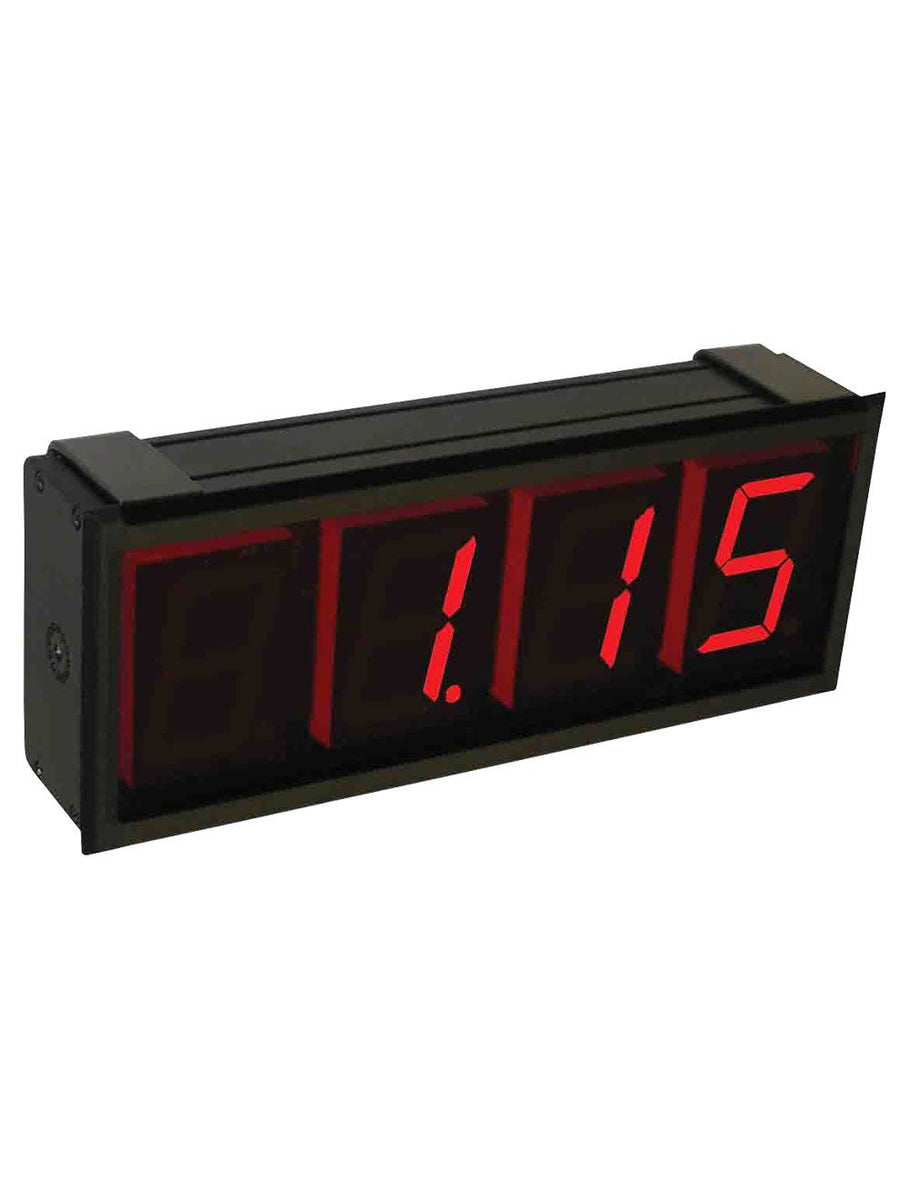

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPMX-3-LV

Jump to: Overview & Specifications Reviews

Overview Details for DPMX-3-LV

See catalog product page for full listing

Extra large digital panel meter | red LED segment display | with 10.5 to 30 VAC/VDC supply power.

SERIES DPMX EXTRA LARGE DIGITAL PANEL METER

3-1/2 Digit LED Display, 2.3" Segment Height, Process Inputs

The Series DPMX Extra Large Digital Panel Meter can be easily viewed from acrossa room or in dark areas. The 2.3" LED segments are available in red, green, or blue.These panel meters come equipped with a universal power supply and user selectableprocess inputs to fit most applications.

Product Applications

Display process values from various transmitters

Large 10.6" (269.2 mm) x 4.2" (105.7 mm) backlit display
Protective metal casing with adjustable mounting bracket

Specifications

Series: DPMX EXTRA LARGE DIGITAL PANEL METER
Category/Type: Pressure
Type: Remote Displays
Series: DPMX EXTRA LARGE DIGITAL PANEL METER
Inputs: Set Voltage: ±200 mVDC; ±2 VDC; ±20 VDC; Adjustable Voltage: 200 mVDC; 5 VDC; 10 VDC; Adjustable Current: 0(4) to 20 mA DC.
Input Impedance: Set Voltage: >1 MΩ (>10 MΩ on 200 mV range); Adjustable Voltage: 392 kΩ; Adjustable Current: 300Ω nominal.
Accuracy: ±(1% F.S. + 1 count).
Power Supply: 90 to 250 VAC @ 12 VA or 10.5 to 30 VAC/DC @ 6 VA (depending on model).
Display: 3-1/2 digits; 2.3" height; 7 segment LED
Sampling Rate: 3 readings per s.
Operating Temperature: 14 to 122°F ( -10 to 50°C).
Storage Range: -40 to 167°F (-40 to 75°C).
Warm Up: 10 m.
Mounting: 180° gimbal mounting with 30° stops or bezel mount.
