DPMX-3 | Extra large digital panel meter | red LED segment display | with 90 to 250 VAC supply power. | Dwyer
Extra large digital panel meter, red LED segment display, with 90 to 250 VAC supply power.

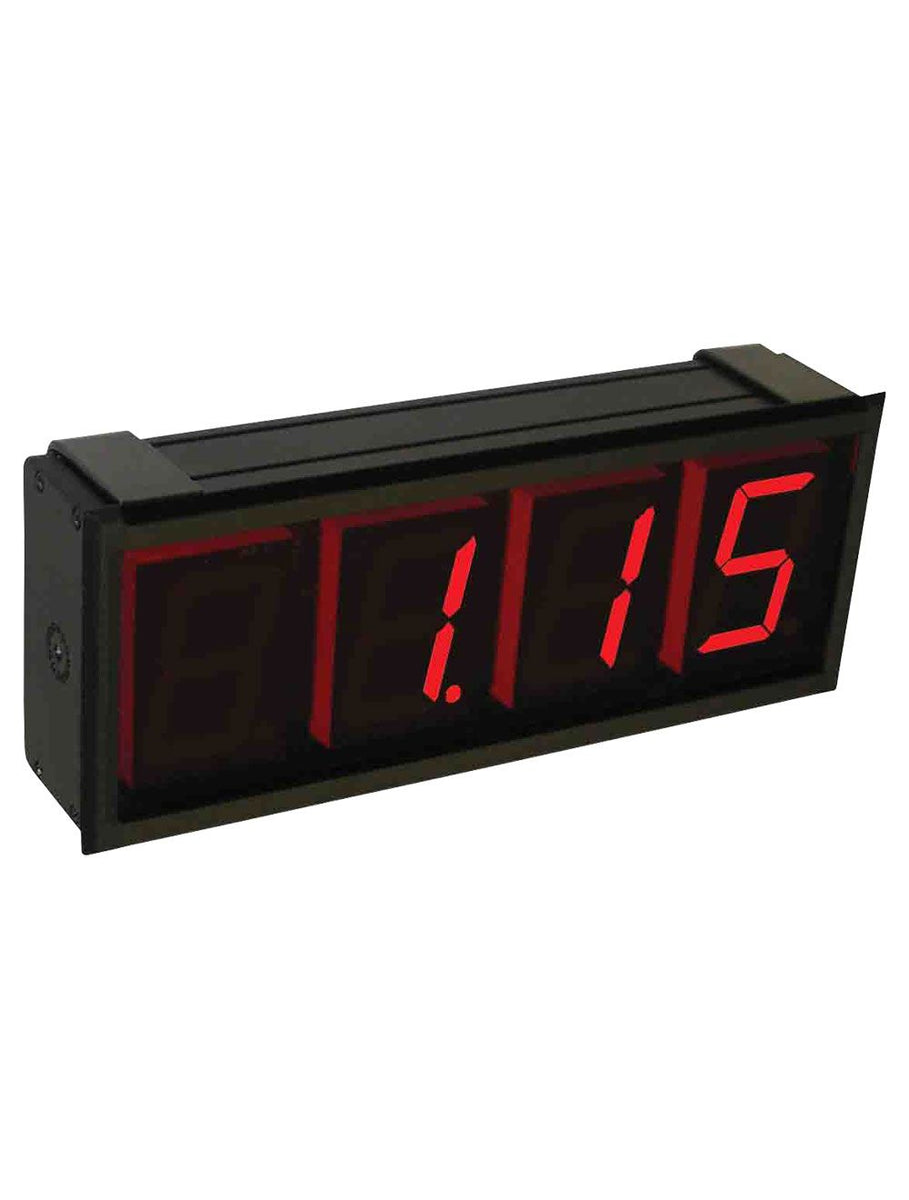

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DPMX-3
Documents and manuals
Dwyer DPMX-3 Documents
Overview
Details for DPMX-3
See catalog product page for full listing
Extra large digital panel meter | red LED segment display | with 90 to 250 VAC supply power.
SERIES DPMX EXTRA LARGE DIGITAL PANEL METER
3-1/2 Digit LED Display, 2.3" Segment Height, Process Inputs
The Series DPMX Extra Large Digital Panel Meter can be easily viewed from acrossa room or in dark areas. The 2.3" LED segments are available in red, green, or blue.These panel meters come equipped with a universal power supply and user selectableprocess inputs to fit most applications.
Product Applications
- Display process values from various transmitters
- Large 10.6" (269.2 mm) x 4.2" (105.7 mm) backlit display
- Protective metal casing with adjustable mounting bracket
Specifications
- Series
- DPMX EXTRA LARGE DIGITAL PANEL METER
- Category/Type
- Pressure
- Type
- Remote Displays
- Series
- DPMX EXTRA LARGE DIGITAL PANEL METER
- Inputs
- Set Voltage: ±200 mVDC; ±2 VDC; ±20 VDC; Adjustable Voltage: 200 mVDC; 5 VDC; 10 VDC; Adjustable Current: 0(4) to 20 mA DC.
- Input Impedance
- Set Voltage: >1 MΩ (>10 MΩ on 200 mV range); Adjustable Voltage: 392 kΩ; Adjustable Current: 300Ω nominal.
- Accuracy
- ±(1% F.S. + 1 count).
- Power Supply
- 90 to 250 VAC @ 12 VA or 10.5 to 30 VAC/DC @ 6 VA (depending on model).
- Display
- 3-1/2 digits; 2.3" height; 7 segment LED
- Sampling Rate
- 3 readings per s.
- Operating Temperature
- 14 to 122°F ( -10 to 50°C).
- Storage Range
- -40 to 167°F (-40 to 75°C).
- Warm Up
- 10 m.
- Mounting
- 180° gimbal mounting with 30° stops or bezel mount.
