DPMW-402 | LCD digital panel meter | loop powered 4 to 20 mA | green segments. | Dwyer
LCD digital panel meter, loop powered 4 to 20 mA, green segments.

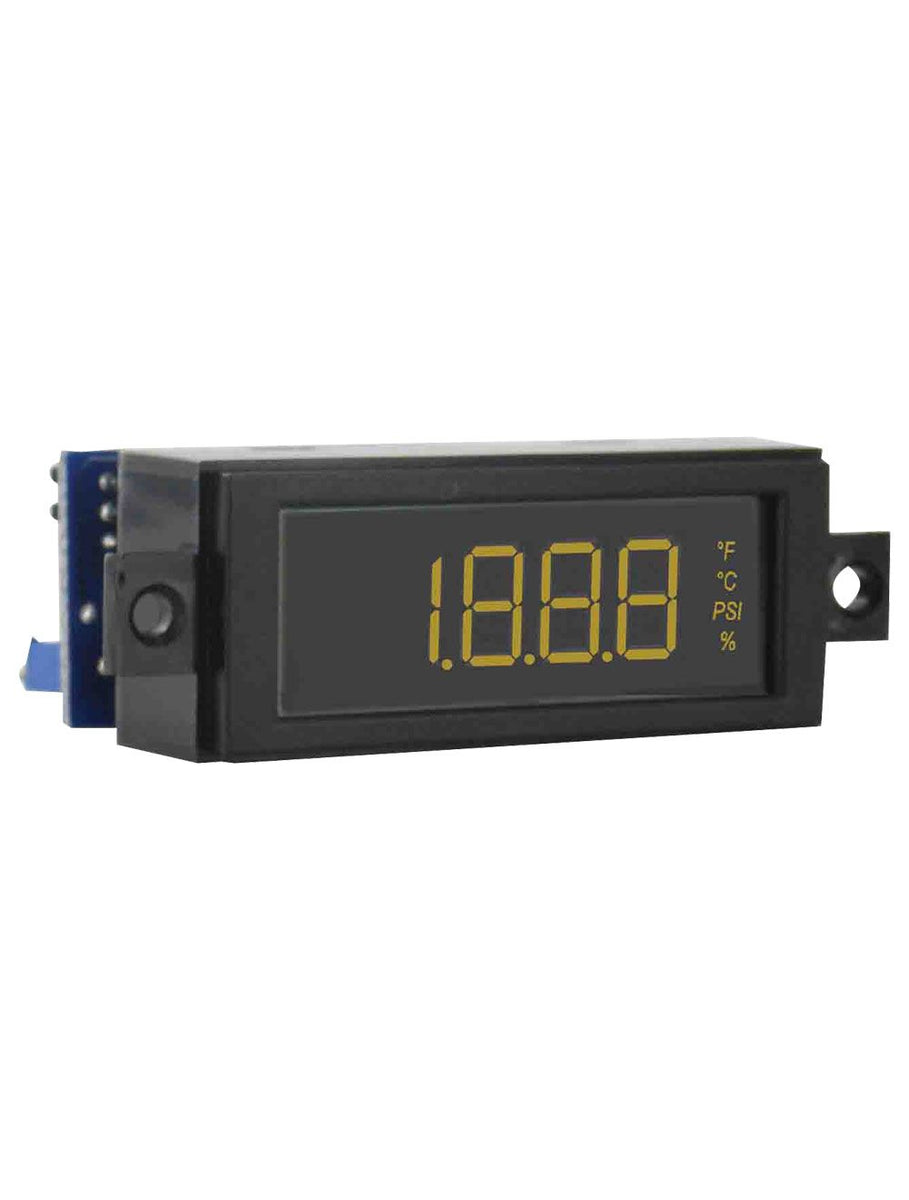

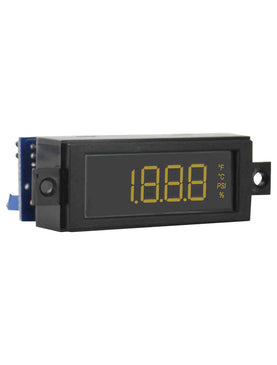

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DPMW-402
Documents and manuals
Dwyer DPMW-402 Documents
Overview
Details for DPMW-402
See catalog product page for full listing
LCD digital panel meter | loop powered 4 to 20 mA | green segments.
SERIES DPMW LCD DIGITAL PANEL METER
3-1/2 Digits, Window Mount
The Series DPMW LCD Digital Panel Meter is designed with a 3-1/2 digit, high contrast LCD. It can be quickly installed in a 2.31" (58.4 mm) x 0.91" (22.9 mm) panel cutout. This unit accepts a 4 to 20 mA input signal from a pressure, level, flow, or temperature transmitter and requires a 24 VDC power supply to illuminate the colored segments.
Product Applications
- Display process values from pressure, humidity, temperature, voltage, current, watt, or power factor transmitters
- Window mounts
- 3-1/2 digit display with 0.45" (11 mm) segments
- Colored segments available in black, red, amber, green, or blue
- Jumper selectable engineering units and decimal point positions
Specifications
- Series
- DPMW LCD DIGITAL PANEL METER
- Category/Type
- Pressure
- Type
- Remote Displays
- Series
- DPMW LCD DIGITAL PANEL METER
- Inputs
- 4-20 mA DC.
- Input Impedance
- 300Ω nominal.
- Accuracy
- ±(0.1% FS + 2 count).
- Power Supply
- Powered by control loop.
- Backlight Power Supply
- 24 VDC @ 35 mA typical.
- Span and Zero
- Adjustable. (±1999).
- Display
- 3-1/2 digits; 7 segments; 0.45" (11.4 mm) H.
- Decimal Points
- 3-position; user selectable.
- Engineering Units
- DPMW-XXX: °F; °C; %; psi; DPMW-XXXP: V; A; KW; PF.
- Polarity
- Automatic; "-" displayed.
- Operating Temperature
- 32 to 122°F (0 to 50°C).
- Storage Temperature
- -4 to 158°F (-20 to 70°C).
- Mounting
- Window mount.
- Connection
- Screw terminals.
- Conversion Rate
- 3 per second.
- Warm-Up
- 10 minutes typical.
- Weight
- 2 oz (56.7 g).
- Agency Approvals
- RoHS.
