DPMA-502P | LCD Digital panel meter with power engineering units | voltage powered 12 VDC/24 VDC | red segments. | Dwyer

LCD Digital panel meter with power engineering units, voltage powered 12 VDC/24 VDC, red segments.

Brand: DwyerSKU: DPMA-502P
Dwyer | DPMA-502P

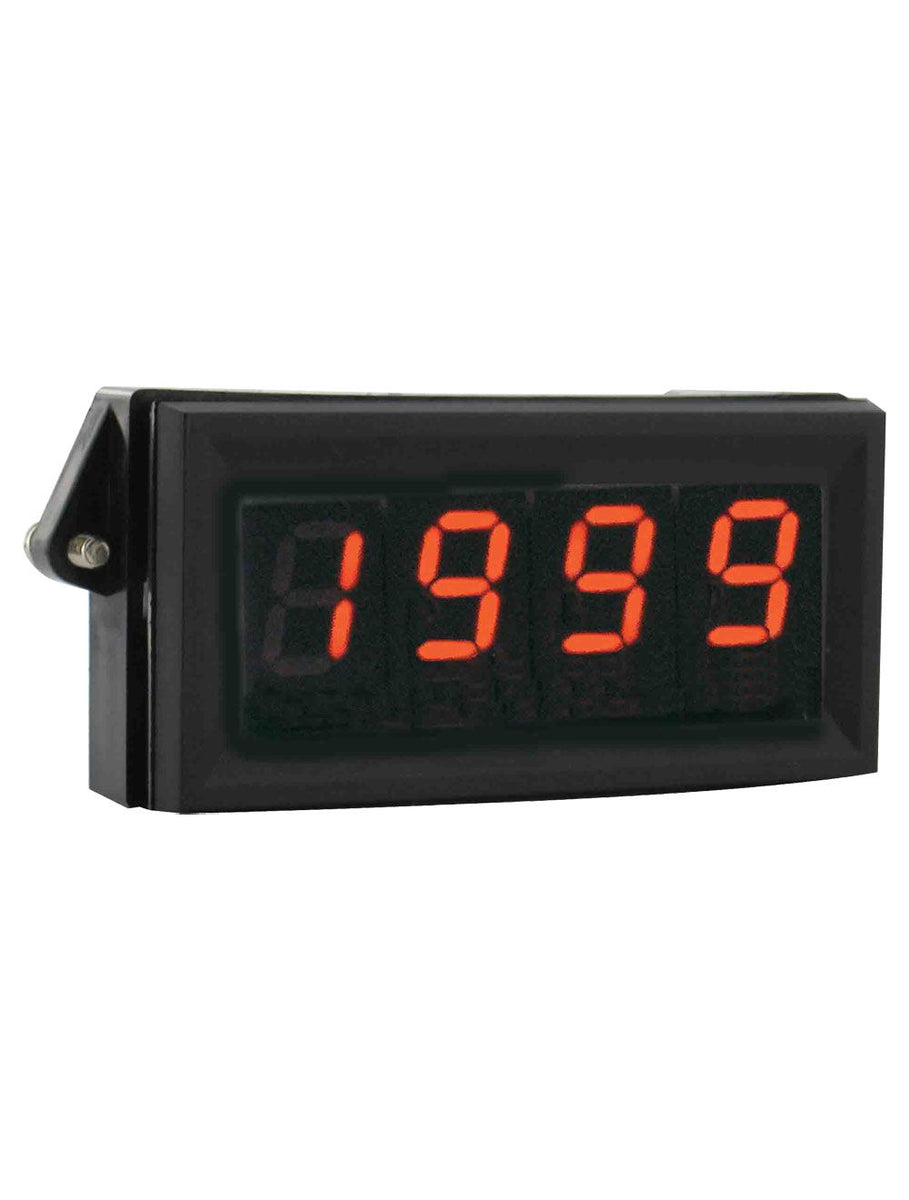

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DPMA-502P

Overview Details for DPMA-502P

See catalog product page for full listing

LCD Digital panel meter with power engineering units | voltage powered 12 VDC/24 VDC | red segments.

SERIES DPMA LCD DIGITAL PROCESS METER

1/8 DIN, Loop Powered, Large 3-1/2 Digit Display

The Series DPMA Adjustable LCD Digital Panel Meter offers a 3-1/2 digit, high contrast display for easy viewing in a standard 1/8 DIN package. This series can accept 4 to 20 mA, 0 to 5 VDC, or 0 to 10 VDC inputs with a wide bipolar span and zero adjustment. A 24 VDC power supply is required to illuminate the colored segments.

Product Applications

  • Display process values from pressure, humidity, temperature, voltage,current, watt, or power factor transmitters.
  • 1/8 DIN panel size
  • 3-1/2 digit display with 1" (25 mm) segments
  • Colored segments available in black, red, amber, green, or blue
  • Jumper selectable engineering units and decimal point positions

Specifications

Series
DPMA LCD DIGITAL PROCESS METER
Category/Type
Process Control
Type
Panel Meters/Indicators
Series
DPMA LCD DIGITAL PROCESS METER
Input
DPMA-4XX(P): 4 to 20 mA;DPMA-5XX(P): 0 to 200 mVDC; 0 to 5VDC or 0 to 10 VDC.
Input Impedance
DPMA-4XX(P):300Ω nominal; DPMA-5XX(P): 390KΩnominal.
Accuracy
±(0.05% FS + 1 count).
Power Supply
DPMA-4XX(P):Powered by control loop; DPMA-5XX(P): 12 VDC or 24 VDC.
Backlight Power Supply
24 VDC @35 mA typical.
Span and Zero
Adjustable. (±1999 counts).
Display
3-1/2 digits; 7 segments; 1" (25.4 mm) H.
Decimal Points
3-position; user selectable.
Engineering Units
DPMA-XXX: °F;°C; %; psi; DPMA-XXXP: V; A; KW; PF.
Polarity
Automatic; "-" displayed.
Operating Temperature
32 to 122°F(0 to 50°C).
Storage Temperature
-4 to 158°F(-20 to 70°C).
Mounting
Snap-in panel mount or clamp (gasket included).
Connection
Screw terminals.
Conversion Rate
3 per second.
Warm-Up
10 minutes typical.
Weight
4 oz (113.4 g).
Agency Approvals
RoHS.
