DPL110 | Dual point level switch. | Dwyer
Dual point level switch.

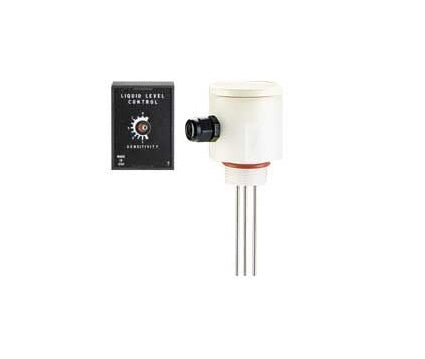

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DPL110
Documents and manuals
Dwyer DPL110 Documents
Overview
Details for DPL110
See catalog product page for full listing
Dual point level switch.
Model DPL110 Dual Point Level Switch
Tank High/Low Control, Conductivity Technology, Up to 72" Probes
The Model DPL110 Dual Point Level Switch maintains liquid level high and low limits by sensing the process liquids conductivity and can be used for single or dual point level control.
Product Applications
- Food and beverage
- Caustics and acids
- Sumps
- Reservoirs
- Pharmaceuticals
- Boilers and steam generators
- Ponds
- Sewage and wastewater
- Contains no moving parts to get stuck or wear out
- Easily adjustable sensitivity for added application flexibility
- DIN rail-mountable socket mount for easy install
- Standard 24" (61 cm) electrodes can be cut by the end-user to a shorter length or lengthened by adding up to two 24" (61 cm) extensions (sold separately) to reach the maximum recommended length of 72" (183 cm)
Specifications
- Power Supply
- 120 VAC 50/60 Hz.
- Output
- SPDT; 5A @ 240 VAC.
- Mounting; Controller
- Standard octal socket or 35 mm DIN rail.
- Electrical Connections
- Screw terminals located on socket mount.
- Weight; Probe Assembly
- 1.5 lbs (0.68 kg).
- Weight; Controller
- 1.0 lb (0.45 kg).
