Documents: DPGAB-10

Instruction Manual Series DPGAB & DPGWB Catalog Page More Info

DPGAB-10 | Digital pressure gage w/ boot | range 0-300 psi with 4-digit display | ±0.5% accuracy | battery powered. | Dwyer

Digital pressure gage w/ boot, range 0-300 psi with 4-digit display, ±0.5% accuracy, battery powered.

Brand: DwyerSKU: DPGAB-10

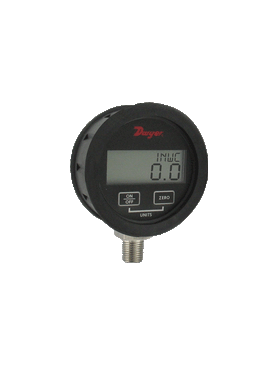

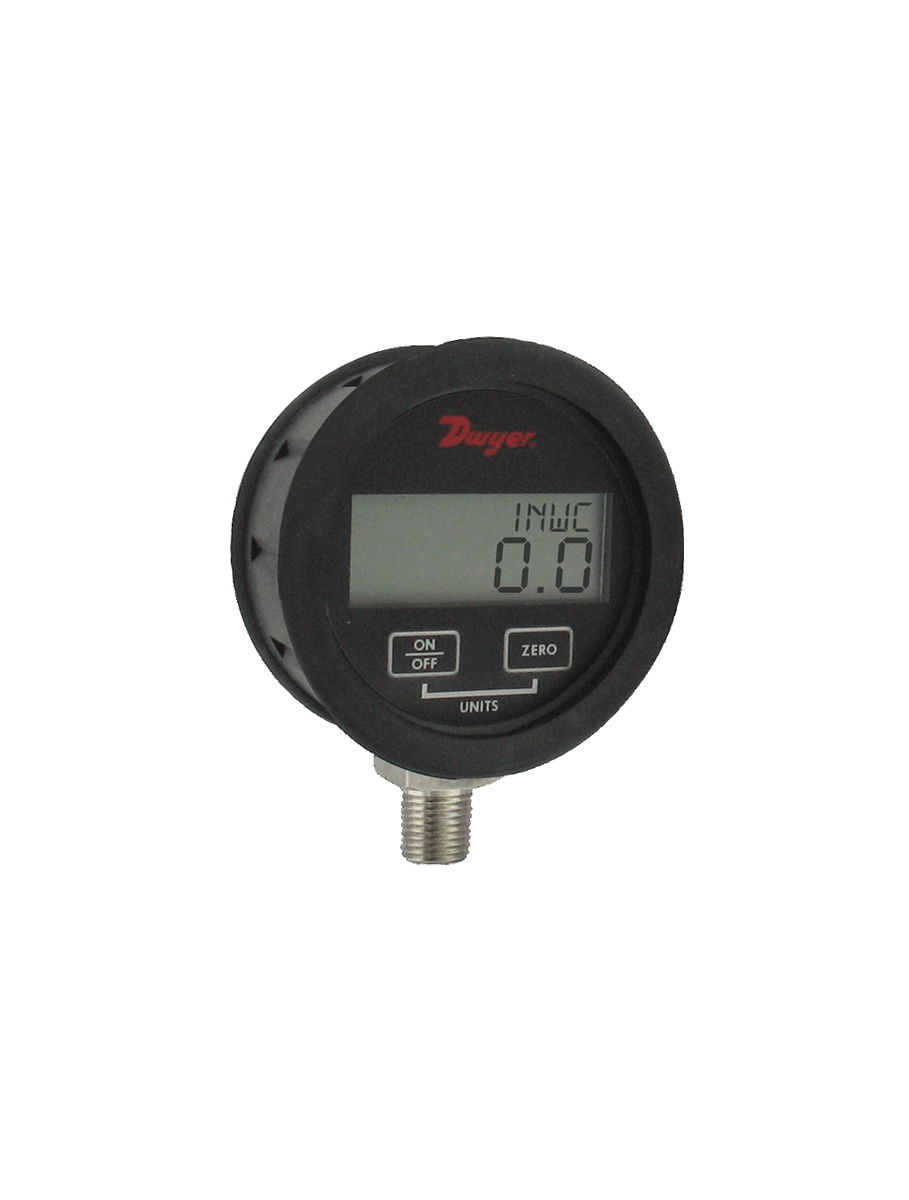

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPGAB-10

Jump to: Overview & Specifications Reviews

Overview Details for DPGAB-10

See catalog product page for full listing

Digital pressure gage w/ boot | range 0-300 psi with 4-digit display | ±0.5% accuracy | battery powered.

SERIES DPGAB & DPGWB 0.5% DIGITAL PRESSURE GAGE

Selectable Engineering Units, Rubber Boot

The Series DPGWB/DPGAB Pressure Gages offer 0.5% full scale accuracy in a rugged, easy-to-use unit at prices comparable to mechanical gages. The DPGWB stainless steel wetted material makes it suitable for a wide variety of liquids or gases. The gages feature user-selectable units of measure allowing one gage to be used for a variety of pressure scales. The DPGWB/DPGAB come with a protective rubber boot to protect against short drops and rough handling.

NIST CALIBRATION available in Product Configurator.

Product Applications

Ideal for checking line pressures at system startup.
Process applications
Process start-up
OEM applications

Push-button zero reduce installation and service time
High accuracy provides exceptional measurement for minimizing costly out ofspecification conditions
Selectable unit button provides reading in easily recognizable units

Specifications

Series: DPGAB & DPGWB 0.5% DIGITAL PRESSURE GAGE
Category/Type: Pressure
Type: Single Pressure
Series: DPGAB & DPGWB 0.5% DIGITAL PRESSURE GAGE
Service: >DPGAB: Air and compatible gases; DPGWB: Liquids and compatible gases.
Wetted Materials: >DPGAB: 316L SS; silicone sensor; DPGWB: Type 316L SS.
Housing Materials: ABS plastic.
Accuracy: ±0.5% F.S. (includes linearity; hysteresis; repeatability).
Pressure Limits: 2X pressure range. Vacuum range max. pressure is 30 psig.
Temperature Limits: 30 to 120°F (-1 to 49°C).
Thermal Effect: 0.05% FS/°F.
Size: 2.62" O.D. x 1.52" deep.
Process Connections: 1/4" male NPT.
Display: 4-digit LCD (.425" H x .234" W digits).
Power Requirements: 9 V alkaline battery; included; user replaceable.
Auto Shut-off: 20 minute auto shut-off.
Weight: 5.6 oz (160 g).
