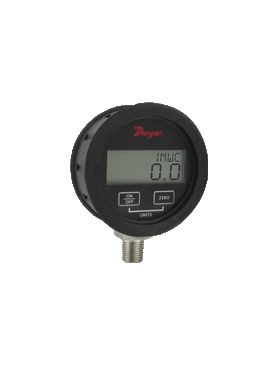

DPGAB-06 | Digital pressure gage w/ boot | range 0-30 psi with 4-digit display | ±0.5% accuracy | battery powered. | Dwyer
Digital pressure gage w/ boot, range 0-30 psi with 4-digit display, ±0.5% accuracy, battery powered.

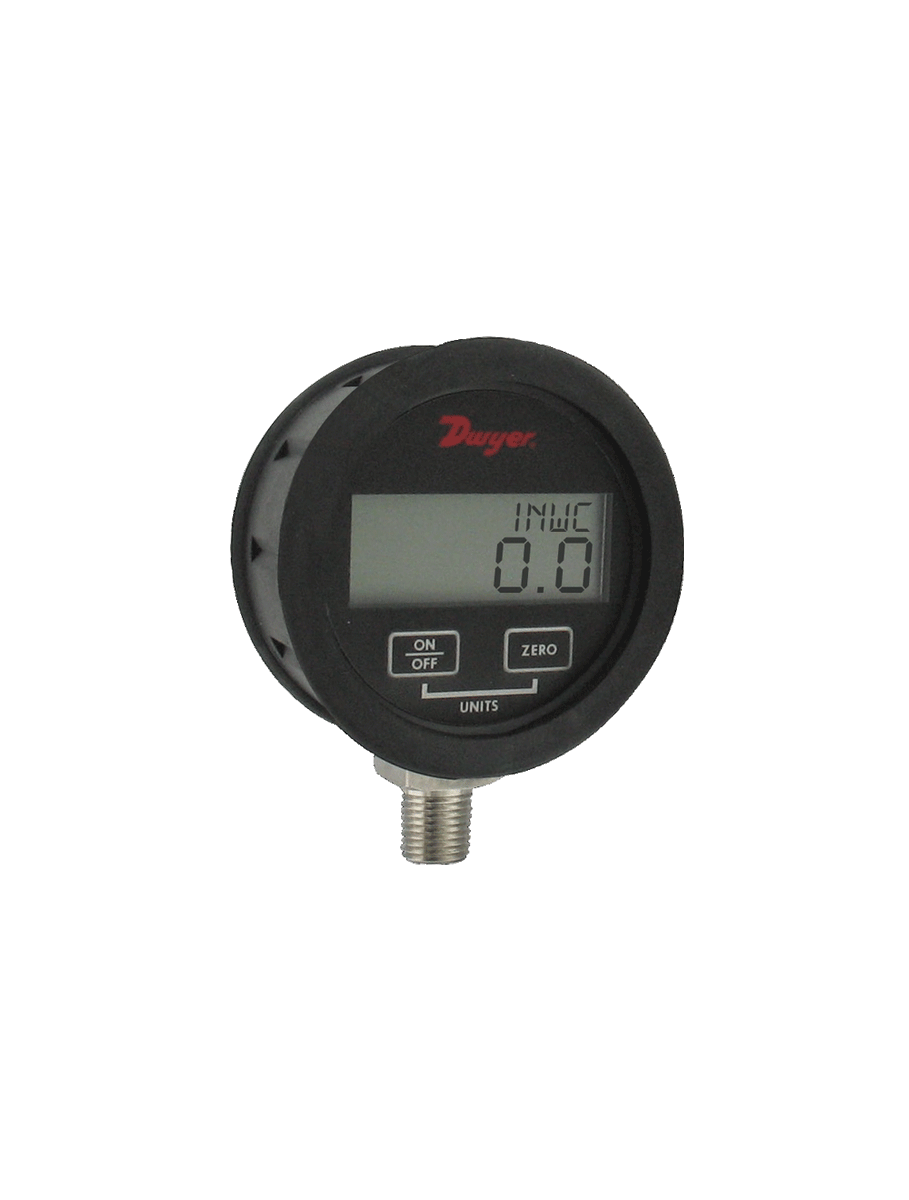

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DPGAB-06
Documents and manuals
Dwyer DPGAB-06 Documents
Overview
Details for DPGAB-06
See catalog product page for full listing
Digital pressure gage w/ boot | range 0-30 psi with 4-digit display | ±0.5% accuracy | battery powered.
SERIES DPGAB & DPGWB 0.5% DIGITAL PRESSURE GAGE
Selectable Engineering Units, Rubber Boot
The Series DPGWB/DPGAB Pressure Gages offer 0.5% full scale accuracy in a rugged, easy-to-use unit at prices comparable to mechanical gages. The DPGWB stainless steel wetted material makes it suitable for a wide variety of liquids or gases. The gages feature user-selectable units of measure allowing one gage to be used for a variety of pressure scales. The DPGWB/DPGAB come with a protective rubber boot to protect against short drops and rough handling.
NIST CALIBRATION available in Product Configurator.
Product Applications
- Ideal for checking line pressures at system startup.
- Process applications
- Process start-up
- OEM applications
- Push-button zero reduce installation and service time
- High accuracy provides exceptional measurement for minimizing costly out ofspecification conditions
- Selectable unit button provides reading in easily recognizable units
Specifications
- Series
- DPGAB & DPGWB 0.5% DIGITAL PRESSURE GAGE
- Category/Type
- Pressure
- Type
- Single Pressure
- Series
- DPGAB & DPGWB 0.5% DIGITAL PRESSURE GAGE
- Service
- >DPGAB: Air and compatible gases; DPGWB: Liquids and compatible gases.
- Wetted Materials
- >DPGAB: 316L SS; silicone sensor; DPGWB: Type 316L SS.
- Housing Materials
- ABS plastic.
- Accuracy
- ±0.5% F.S. (includes linearity; hysteresis; repeatability).
- Pressure Limits
- 2X pressure range. Vacuum range max. pressure is 30 psig.
- Temperature Limits
- 30 to 120°F (-1 to 49°C).
- Thermal Effect
- 0.05% FS/°F.
- Size
- 2.62" O.D. x 1.52" deep.
- Process Connections
- 1/4" male NPT.
- Display
- 4-digit LCD (.425" H x .234" W digits).
- Power Requirements
- 9 V alkaline battery; included; user replaceable.
- Auto Shut-off
- 20 minute auto shut-off.
- Weight
- 5.6 oz (160 g).
