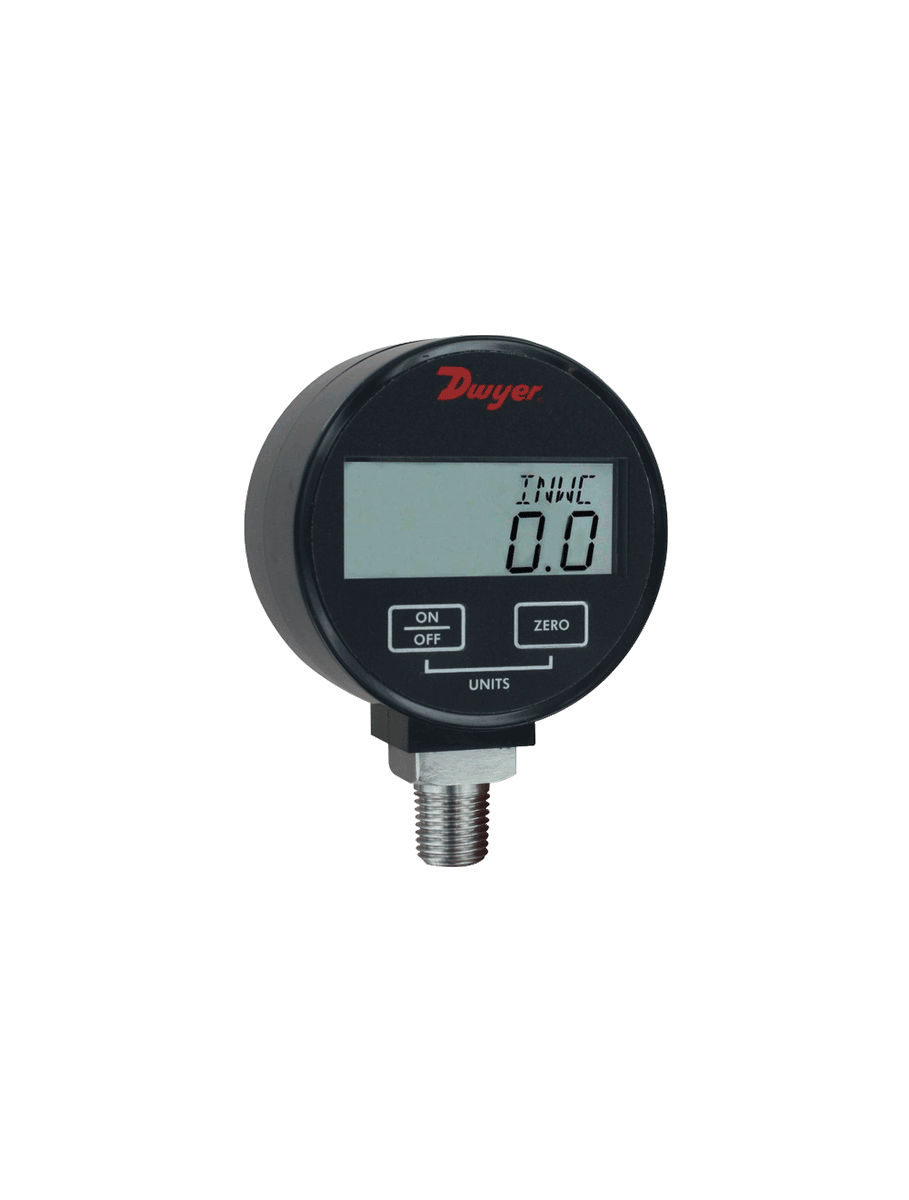

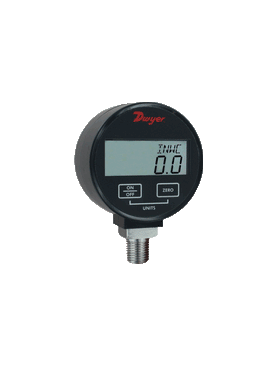

DPGA-07 | Digital pressure gage | range 0 to 50 psi | selectable engineering units: 50.00 psig | Dwyer

Digital pressure gage, range 0 to 50 psi, selectable engineering units: 50.00 psig, 3.515 kg/cm², 3.447 bar, 101.8" Hg, 115.3 ft w.c., 344.7 kPa, 800 oz/in², 1384" w.c., 3447 mbar, 3515 cm w.c., 2586 mm Hg, 0.02 psi resolution.

Brand: DwyerSKU: DPGA-07

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPGA-07

Jump to: Overview & Specifications Reviews

Overview Details for DPGA-07

See catalog product page for full listing

Digital pressure gage | range 0 to 50 psi | selectable engineering units: 50.00 psig

SERIES DPGA & DPGW DIGITAL PRESSURE GAGE WITH 1% ACCURACY

Economic Gage With Selectable Engineering Units, Rubber Boot

The Series DPGA is the only economic digital pressure gage with selectable engineering units on the market. With its 1% accuracy and digital push-button zero, the DPGA is the perfect choice for digitally monitoring the pressures of air and compatible gases.

The Series DPGW is the only economic digital pressure gage for liquids with the ability to select engineering units on the market. With its 1% accuracy and digital push-button zero, the DPGW is the perfect choice for digitally monitoring the pressures of air and compatible liquids and gases.

NIST CALIBRATION available in Product Configurator.

Product Applications

Process applications
Process start-up
OEM applications

Push-button zero reduces installation and service time
High accuracy provides exceptional measurement for minimizing costly out ofspecification conditions
Selectable unit button provides reading in easily recognizable units
Well-suited gage for compatible gas (DPGA) or liquid (DPGW) applications specifyingsimple operation and accuracy

Specifications

Series: DPGA & DPGW DIGITAL PRESSURE GAGE WITH 1% ACCURACY
Category/Type: Pressure
Type: Single Pressure
Series: DPGA & DPGW DIGITAL PRESSURE GAGE WITH 1% ACCURACY
Service: DPGA: air and compatible gases; DPGW: liquids and compatible gases.
Wetted Materials: DPGA: 316L SS; silicone sensor; DPGW: 316L SS.
Housing Materials: ABS plastic.
Accuracy: ±1.0% F.S. (Includes linearity; hysteresis; repeatability.)
Pressure Limits: 2X pressure range. Vacuum range max. pressure is 30 psig.
Temperature Limits: 30 to 120°F (-1 to 49°C).
Thermal Effect: 0.05% FS/°F.
Size: 2.62" OD x 1.52" deep.
Process Connection: 1/4" male NPT.
Display: 4-digit LCD (.425" H x .234" W digits).
Power Requirements: 9 V alkaline battery; included; user replaceable.
Auto Shut-Off: 20 minute auto shut-off.
Weight: 5.6 oz (160 g).
