DPG-207 | Digital pressure gage | selectable engineering units: 300.0 psig | 21.09 kg/cm² | 20.69 bar | 610.8" Hg | 692.1 ft w.c. | 674.5 ft seawater @ 4°C | 2069 kPa | 4800 oz/in² | 8304" w.c. | Dwyer

Digital pressure gage, selectable engineering units: 300.0 psig, 21.09 kg/cm², 20.69 bar, 610.8" Hg, 692.1 ft w.c., 674.5 ft seawater @ 4°C, 2069 kPa, 4800 oz/in², 8304" w.c.

Brand: DwyerSKU: DPG-207

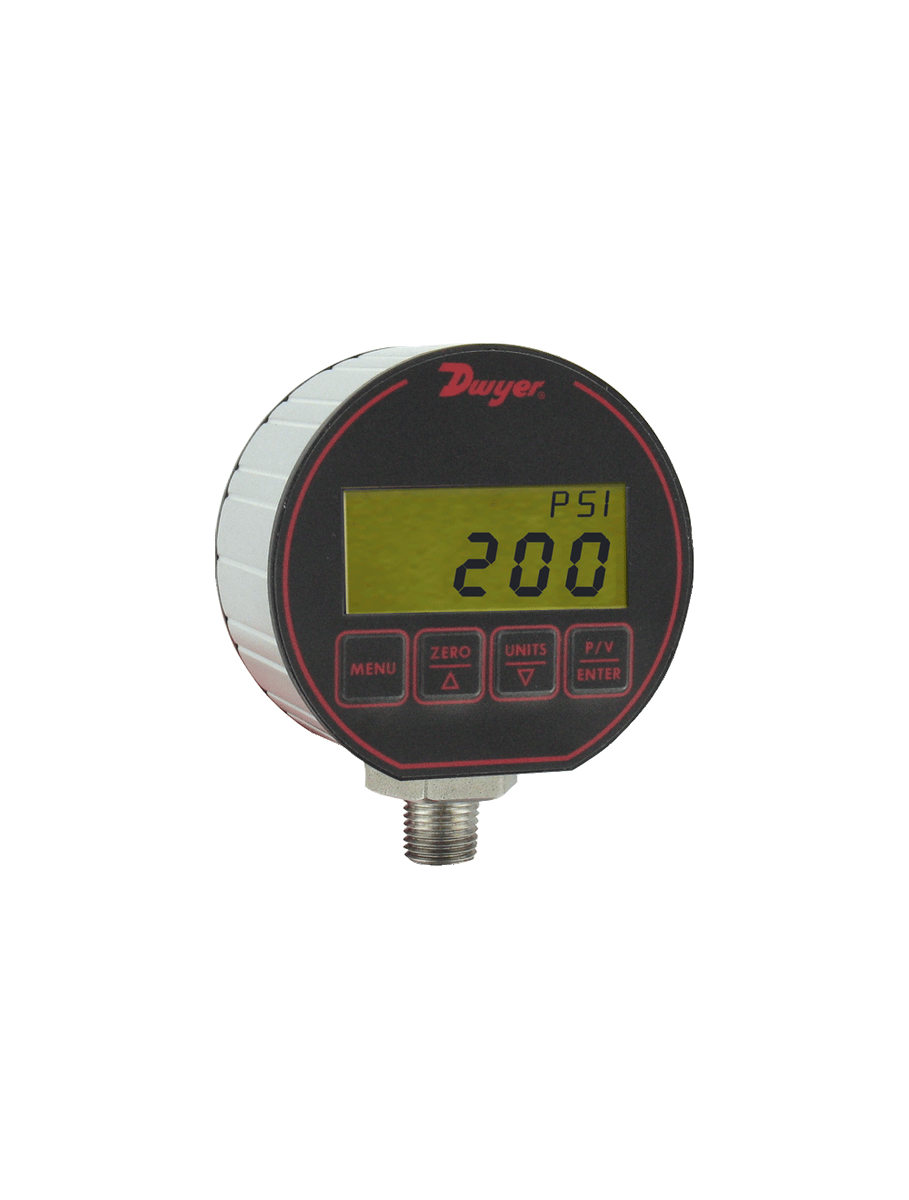

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPG-207

Jump to: Overview & Specifications Reviews

Overview Details for DPG-207

See catalog product page for full listing

SERIES DPG-200 DIGITAL PRESSURE GAGE

3-in-1: Gage, Transmitter and Switch

The Series DPG-200 Digital Pressure Gage has a precise ±0.25% full scale accuracy. The 4 digit digital display will reduce the potential for errors in readings by eliminating parallax error commonly produced with analog gages. The DPG-200 is packaged in a durable extruded aluminum case designed to meet NEMA 4X (IP66). The unit is powered by 12-24 VDC/VAC and contains two alarm set points along with a 4-20 mA process output. A four-button keypad allows easy access to features. These features include backlight, peak and valley, auto zero and conversion of the pressure units.

NIST CALIBRATION available in Product Configurator.

Product Applications

Process control
Compressor control

High accuracy provides exceptional measurement minimizing costly out ofspecification conditions
Backlit 4-digit display provides clear parallax-free reading reducing potential forerrors
Durable aluminum case to meet NEMA 4X (IP66) requirements supports use inharsh or outdoor environments
Push-button zero reduce installation and service time

Specifications

Series: DPG-200 DIGITAL PRESSURE GAGE
Category/Type: Pressure
Type: Single Pressure
Series: DPG-200 DIGITAL PRESSURE GAGE
: DIGITAL GAGE SPECIFICATIONS
Service: Liquids and non-combustible compatible gases.
Wetted Materials: Type 316L SS.
Housing: Black polycarbonate front & back cover; anodized aluminum extruded housing with recessed grooves; polycarbonate overlay; Buna-N O-rings; 316L SS sensor construction.
Accuracy: 0.25% F.S. ±1 least significant digit. (Includes linearity; hysteresis; repeatability).
Pressure Limit: 2x pressure range for models 1000 psi; 5000 psi for 3000 psi range; 7500 psi for 5000 psi range.
Temperature Limits: 32 to 158°F (0 to 70°C).
Process Connection: 1/4" male NPT.
Display: 4 digit (.425" H x .234" W digits).
Size: 3.00" OD x 1.90" deep (not including cables).
Weight: 8.84 oz (275 g).
: SWITCH SPECIFICATIONS
Switch Type: 2 SPDT Form C contacts.
Electrical Rating: 0.5 A @ 125 VAC resistive; 1 A @ 24 VDC.
Relay Differential: 1 least significant digit.
Electrical Connections: 3 ft (.91 m) cable.
Mounting Orientation: Mount in any position.
Set Point Adjustment: Via menu.
: TRANSMITTER SPECIFICATIONS
Temperature Limits: 0 to 158°F (0 to 70°C).
Thermal Effect: Between 70 to 158°F = 0.016%/°F. Between 0 to 70°F = 0.026%/°F.
Power Requirements: 12-24 VAC +/- 20% 50-400 Hz; 12-24 VDC +/-20%.
Output Signal: 4-20 mA.
Loop Resistance: 600 ohms maximum.
Power Consumption: 0.8 W max.
Electrical Connections: 3 ft (.91 m) cable.
Enclosure Rating: Designed to meet NEMA 4X (IP66).
