DPC-CCL | Duplexing pump controller | 240 VAC | with sequence lock. | Dwyer

Duplexing pump controller, 240 VAC, with sequence lock.

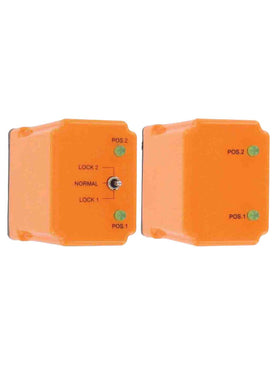

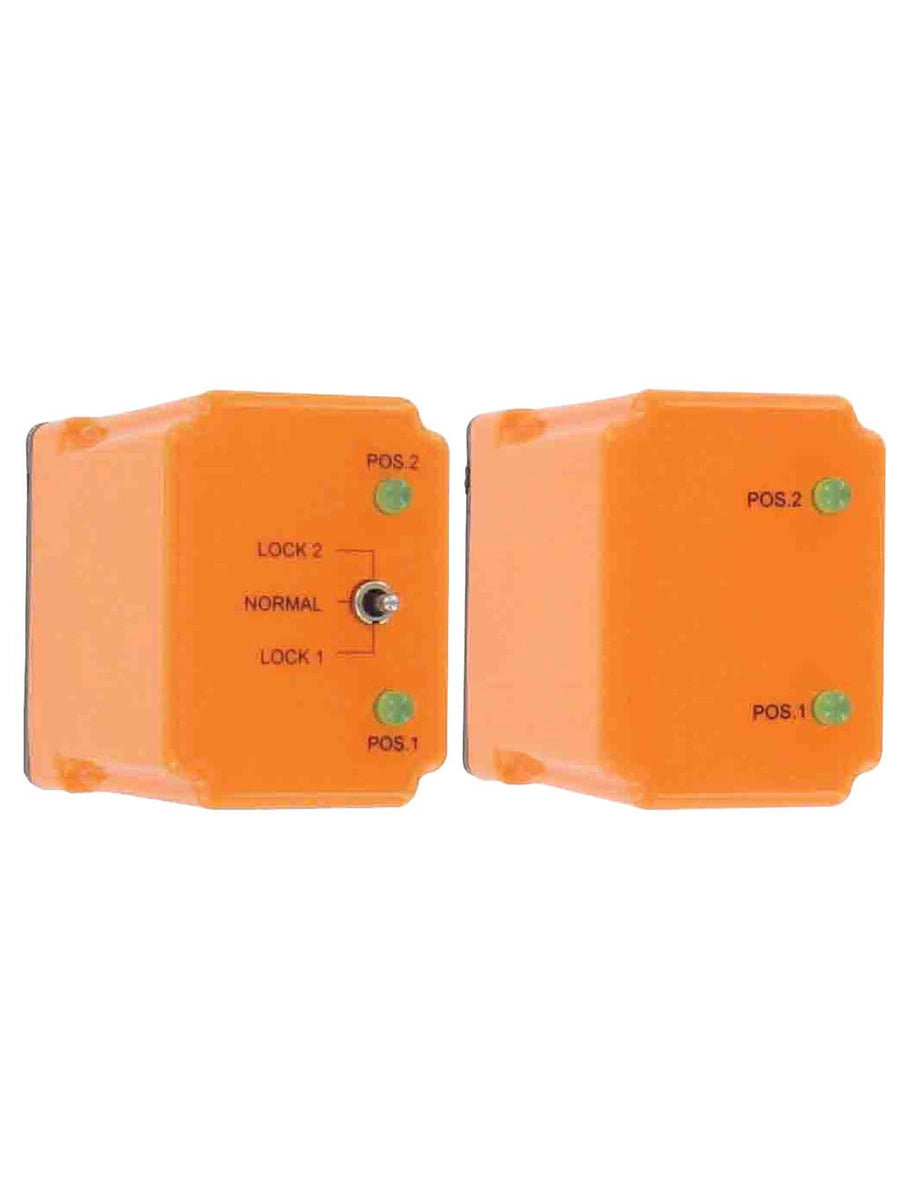

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DPC-CCL

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer DPC-CCL Documents

DPC Series DPC Catalog Page More Info

Overview

Details for DPC-CCL

See catalog product page for full listing

Duplexing pump controller | 240 VAC | with sequence lock.

Series DPC Duplexing Pump Controller

Dual Pump Protection

Series DPC Duplexing Pump Controller is used where two pumps are required to alternate to provide equal run time on each. Alternating loads allows for equal wear on both pumps lengthening their operation life. The controlled relay alternates each time the control switch opens. Two LED indicators show the load that is energized by the SPDT output relay. The DPC-ACS model is a standard duplexing controller providing the automatic alternating sequence. The DPC-ACL offers the same automatic sequencing as well as A-B or B-A sequence lock selectable by a three-position toggle switch.

Specifications

Series: DPC Duplexing Pump Controller
Category/Type: Level
Type: Pump Controllers
Series: DPC Duplexing Pump Controller
Power Requirement: 120 VAC/DC; 240 VAC; or 24 VAC/DC.
Power Consumption: 3 VA (approximate).
Temperature Limits: Operating: -4 to 131°F (-20 to 55°C); Storage: -40 to 185°F (-40 to 85°C).
Switch Type: SPDT.
Switching Current: 1 mA.
Electrical Rating: 10 A @ 240 VAC resistive; 1/8 hp @ 120 VAC; 1/4 hp @ 240 VAC inductive; 360 VA @ 240 VAC inductive.
Indicators: (2) LED's show active output relay.
Enclosure: Polycarbonate dust cover.
Mounting: 8-pin octal.
Weight: 4.5 oz (128 g).
Agency Approvals: cUR; UR.
