DPC-ACS | Duplexing pump controller | 120 VAC/DC. | Dwyer
Duplexing pump controller, 120 VAC/DC.

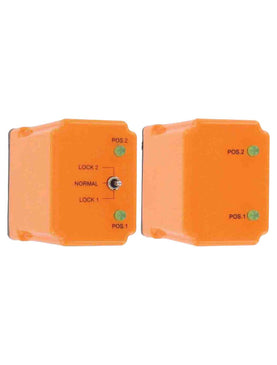

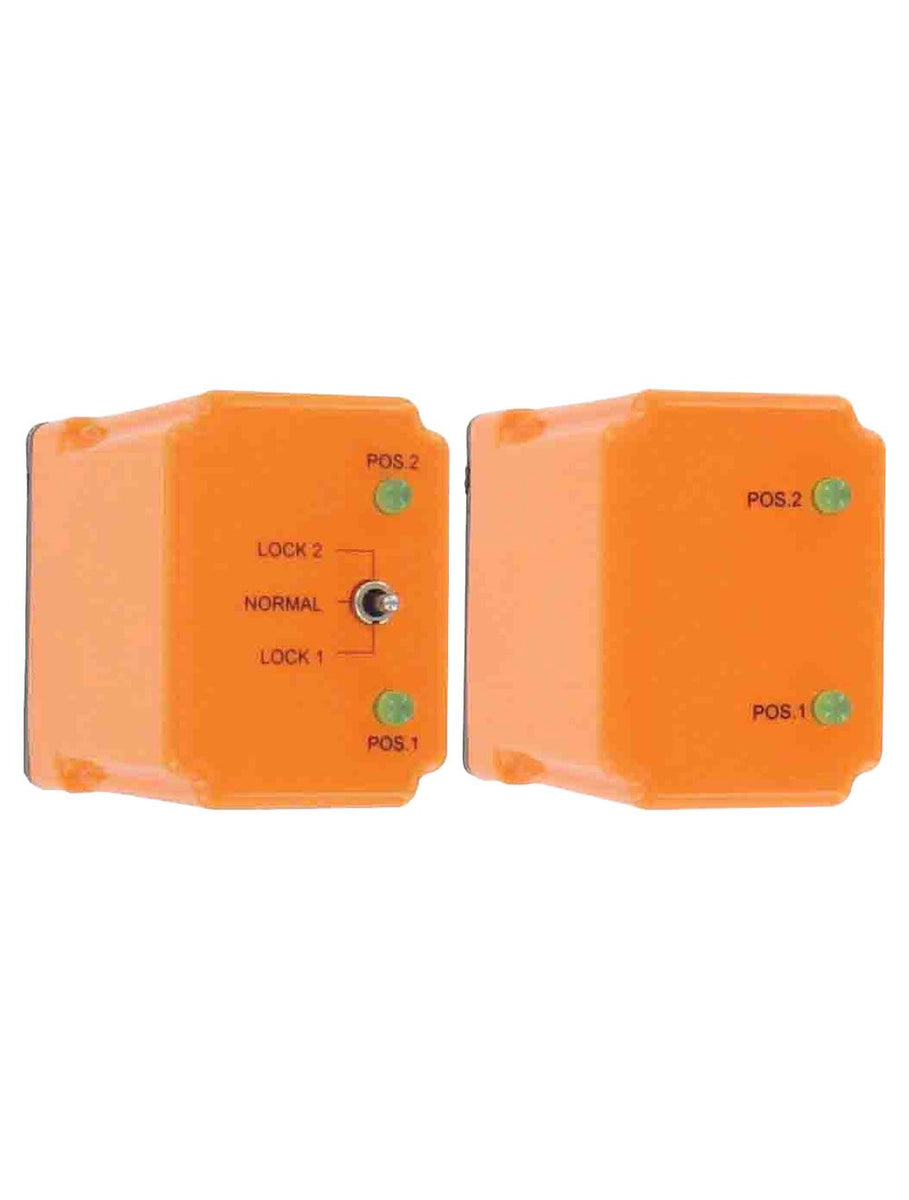

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DPC-ACS
Documents and manuals
Dwyer DPC-ACS Documents
Overview
Details for DPC-ACS
See catalog product page for full listing
Duplexing pump controller | 120 VAC/DC.
Series DPC Duplexing Pump Controller
Dual Pump Protection
Series DPC Duplexing Pump Controller is used where two pumps are required to alternate to provide equal run time on each. Alternating loads allows for equal wear on both pumps lengthening their operation life. The controlled relay alternates each time the control switch opens. Two LED indicators show the load that is energized by the SPDT output relay. The DPC-ACS model is a standard duplexing controller providing the automatic alternating sequence. The DPC-ACL offers the same automatic sequencing as well as A-B or B-A sequence lock selectable by a three-position toggle switch.
Specifications
- Series
- DPC Duplexing Pump Controller
- Category/Type
- Level
- Type
- Pump Controllers
- Series
- DPC Duplexing Pump Controller
- Power Requirement
- 120 VAC/DC; 240 VAC; or 24 VAC/DC.
- Power Consumption
- 3 VA (approximate).
- Temperature Limits
- Operating: -4 to 131°F (-20 to 55°C); Storage: -40 to 185°F (-40 to 85°C).
- Switch Type
- SPDT.
- Switching Current
- 1 mA.
- Electrical Rating
- 10 A @ 240 VAC resistive; 1/8 hp @ 120 VAC; 1/4 hp @ 240 VAC inductive; 360 VA @ 240 VAC inductive.
- Indicators
- (2) LED's show active output relay.
- Enclosure
- Polycarbonate dust cover.
- Mounting
- 8-pin octal.
- Weight
- 4.5 oz (128 g).
- Agency Approvals
- cUR; UR.
