DM-007 | Differential digital pressure transmitter | range 0-3.0" w.c. | Dwyer

Differential digital pressure transmitter, range 0-3.0" w.c.

Brand: DwyerSKU: DM-007

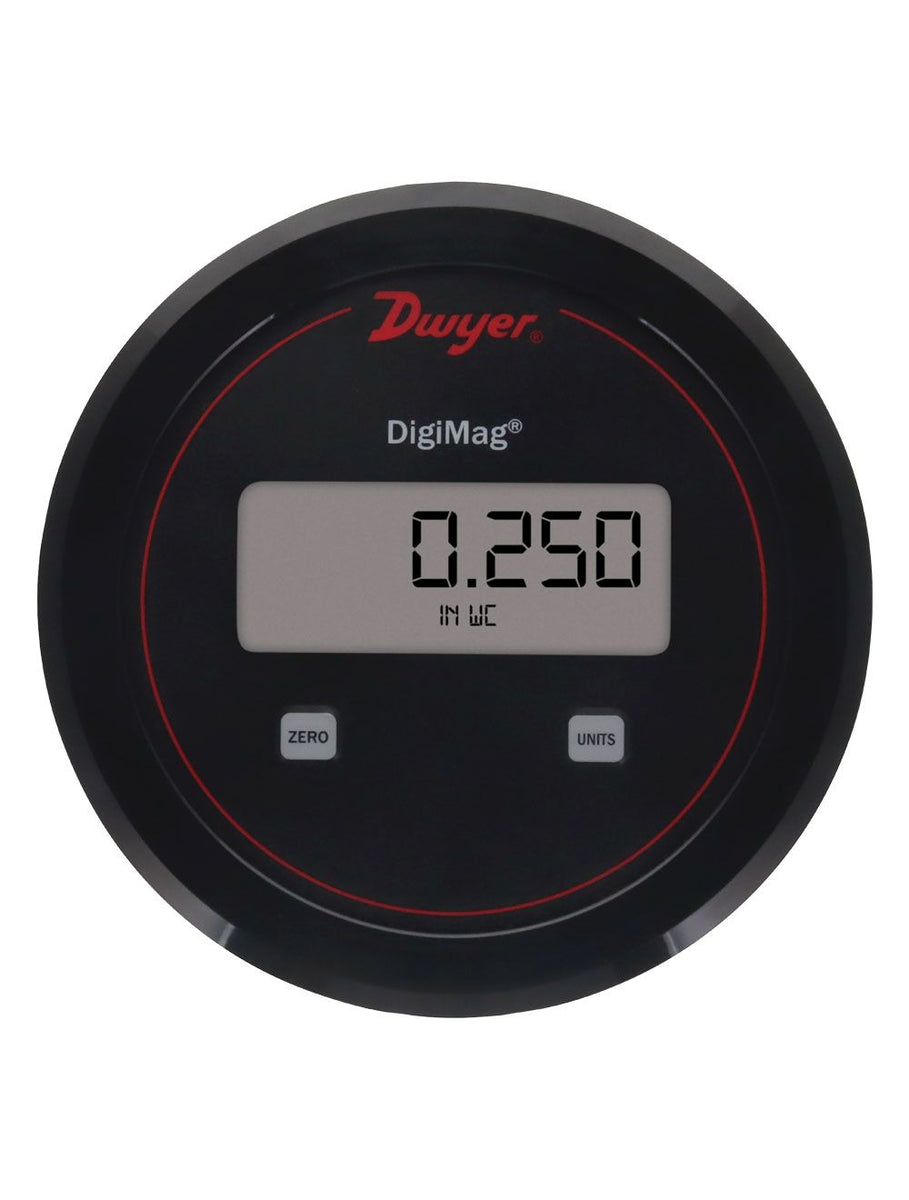

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DM-007

Jump to: Overview & Specifications Reviews

Overview Details for DM-007

See catalog product page for full listing

Differential digital pressure transmitter | range 0-3.0" w.c.

Series DM DigiMag® Differential Pressure Transmitter

Same Size as Standard Magnehelic® Differential Pressure Gage

The Series DM DigiMag® Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4-20 mA output signal. The DM housing is specifically designed to mount in the same diameter cutout as a standard Magnehelic® gage. A wide range of models are available factory calibrated to specific ranges. The polycarbonate molded housing features integral pressure connections, which reduces installation time. Digital push-button zero and span simplify calibration over typical turn-potentiometers. A single push-button allows field selection of 4 to 6 engineering units, depending on the range.

Product Applications

Differential pressure across filters
Fan control
Static pressures in ducts or buildings
Room pressurization monitoring

Reduced installation time through zero and span controls that provides quick andeasy calibration
Fast and easy setup and calibration with push-button zero and span controls
Immediate corrective action can be taken by local alerts via the easy-to-read LCDdisplay
Reduces upgrade installation costs and simplifies field upgrade from a Magnehelic®gage, as both use the same diameter cutout

Specifications

Series: DM DigiMag® Differential Pressure Transmitter
Category/Type: Pressure
Type: Differential Pressure
Series: DM DigiMag® Differential Pressure Transmitter
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Housing Material: Polycarbonate.
Accuracy: ±1% FSO for all ranges except 0.25 in w.c. @ ±2% FSO; and ranges ator below ±0.1 in w.c. @ ±4% FSO.
Stability: < ±1%/year FSO.
Pressure Limits: Ranges > 1 in w.c.: 6 psi max operation; 6 psi burst; Ranges = 1in w.c.: 3.6 psi max operation; 6 psi burst.
Temperature Limits: -4 to 158°F (-20 to 70°C).
Thermal Effect: 0.036% FS/°C (0.02% FS/°F).
Power Requirements: 10-35 VDC (2-wire).
Output Signal: 4-20 mA (2-wire).
Zero and Span Adjustments: Push-button.
Loop Resistance: 0 to 1250 Ω max.
Current Consumption: 21 mA max.
Electrical Connections: Screw-type terminals.
Process Connections: Male ports on side for 1/8"; 3/16"; 1/4"; 5 mm; 6 mm ID flexible tubing.
Enclosure Rating: NEMA 4X (IP66).
Mounting Orientation: Not sensitive to position.
Size: 5" OD (127 mm) x 1.9" (48 mm) deep.
Weight: 7.04 oz (200 g).
Agency Approvals: CE.
