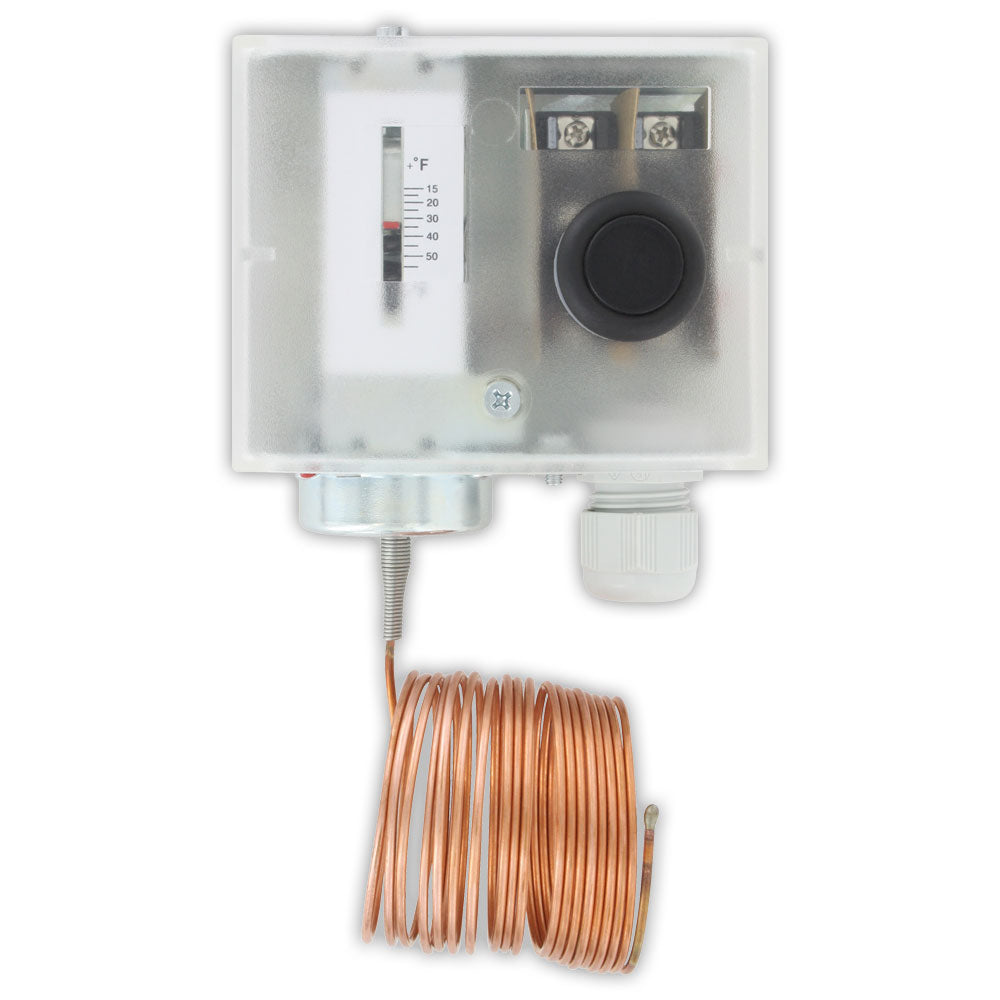

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DFS2-DA20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer DFS2-DA20 Documents

Instruction Manual Series DFS2 Catalog Page DFS2 More Info

Overview

Details for DFS2-DA20

See catalog product page for full listing

Low limit temperature control | 20 ft capillary with automatic reset

SERIES DFS2 LOW LIMIT FREEZE PROTECTION SWITCH

Manual and Automatic Reset

The Series DFS2 Low Limit Freeze Protection Switch protects cooling coils in airhandler systems by preventing frost build up. The thermostat and its capillary sensingelement provide an antifreeze function by sensing the lowest temperature along anyone foot section of capillary. The DPDT manual or automatic reset relays signal thebuilding management system as well as cut off the fan. The Series DFS2 will detecttemperature drops below the fixed safety value (set point) which can be set as low as34°F (1°C) utilizing the visual set point indicator and set point screw.

Product Applications

HVAC equipment
Heat exchangers and cooling coils

Vapor-filled copper capillary sensing element
Joint spring protector at capillary-bellow connection
Set point safety-lock protection and simple adjustment
Easy installation and wiring
Automatic and manual reset

Specifications

Series: DFS2 LOW LIMIT FREEZE PROTECTION SWITCH
Sensing Element: Vapor-filled capillary.
Operating Temperature: 14°F to 54°F (-10°C to 12°C).
Storage Temperature: 14°F to 158°F (-10°C to 70°C).
Capillary Overload Temperature: 392°F (200°C); maximum 60 minutes.
Humidity Limit: 0 to 95% RH; non-condensing.
Enclosure: Galvanized steel base; ABS cover.
Enclosure Rating: NEMA 1 (IP40).
Capillary Material: Copper.
Cable Entry: (1) M20 compression fitting.
Reset Action: Available in automatic or manual reset options.
Low-level Setpoint: Factory Set: 39°F (4°C); and safety lock secured; Adjustment via screwdriver slot.
Wire Connection: Terminal with wire-retaining screws.
Wire Size: Max. 14 AWG.
Electrical Rating: 24 to 250 VAC; 15 (8) A.
Electrical Connections: Two each NO/NC/Common.
Deadband: 1.8°F (fixed).
Weight: 1.6 lb (0.7 kg).
Agency Approvals: CE.
