Documents: DFMT2-50A

Instruction Manual Series DFMT2 Catalog Page More Info

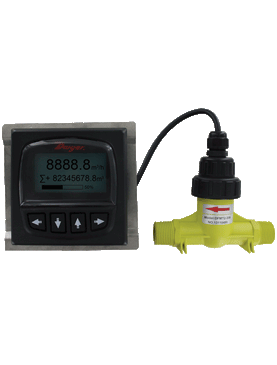

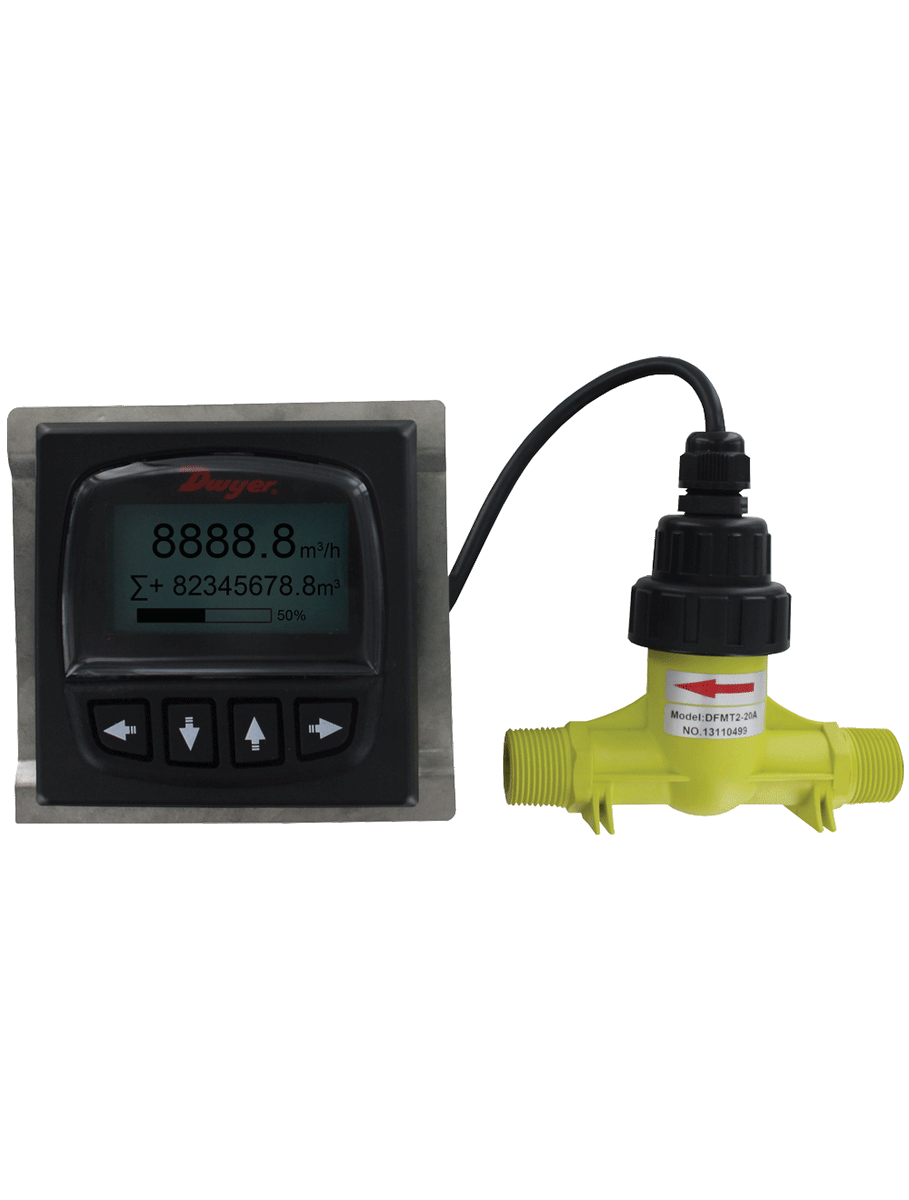

DFMT2-50A | Remote Digital Flow Transmitter | 2" NPT | Dwyer

Remote Digital Flow Transmitter, 2" NPT

Brand: DwyerSKU: DFMT2-50A

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DFMT2-50A

Jump to: Overview & Specifications Reviews

Overview Details for DFMT2-50A

See catalog product page for full listing

Remote Digital Flow Transmitter | 2" NPT

Series DFMT2 Digital Paddlewheel Flow Transmitter

Flow and Total Indication, Easy to Read LCD Display, Remote Indication

The Series DFMT2 Remote Digital Paddlewheel Flow Transmitter is a two piecedigital flow transmitter that provides instantaneous, as well as totalizing flow monitoring.The two piece design allows the user to separate the control panel from the application,making it ideal for industrial use in reverse osmosis water purifying systems and any otherapplications where space is limited. The large backlit display makes navigating throughthe menu structure simple. The Series DFMT2 uses high accuracy, industry provenpaddlewheel technology, offers a user selectable 4 to 20 mA or pulse output, and has acorrosion resistant PVDF sensor giving it a long operation life. Users can reset the totalizerat any time and set a security password protecting the system settings from unauthorizedchanges.

Product Applications

Continuous Water Monitoring
Reverse Osmosis Systems
Remote Flow Monitoring
Cooling Towers
Chemical Proportioning or Blending
Industrial Water & Wastewater Treatment
Fluctuating Fluid Conductivity Applications

Two piece design allows the user to separate the control display from the application,making it ideal in areas where space is limited
The large backlit LCD display defines instantaneous as well as cumulative flow withvisual indication bar designating percent of max flow
Long operation life with high accuracy paddlewheel technology and corrosionresistant PVDF sensor
Totalizer is user resettable at any time ideal for single batch totalization
Security password protecting prevents any unauthorized changes

Specifications

Series: DFMT2 Digital Paddlewheel Flow Transmitter
Category/Type: Flow
Type: Flow Transmitters
Series: DFMT2 Digital Paddlewheel Flow Transmitter
Service: Compatible clean liquids.
Range: See model chart on the catalog page.
Wetted Materials: Sensor and Impeller: PVDF;Shaft: Ceramic;O-Rings: Fluoroelastomer;
Accuracy: ±1.5% FS.
Repeatability: ±0.5% FS.
Output: Analog: 4 to 20 mA (750 O max. loop resistance);Pulse: NPN square wave output;Frequency: 0 to 2 kHz (adjustable);Pulse width: 0 to 1000 ms (adjustable).
Electrical Connections: Removable screw terminal.
Temperature Limits: Process: -4 to 194°F (-20 to 90°C);Ambient: -4 to 149°F(-20 to 65°C).
Pressure Limit: 145 psi (1.0 MPa).
Power Requirements: 12 to 24 VDC.
Power Consumption: 2 W.
Display: 2.38 x 1.25" (60.33 x 31.75 mm) LCD.
Totalizing Display Maximum: 9;999;999;999.
Process Connection: See model chart on the catalog page.
Enclosure Rating: IP65.
Enclosure Material: ABS plastic.
Weight: See model chart on catalog page.
