DFM-32010-V-ALA2 | Digital flow meter | 0-500 ml/min with LED display | 1/8" compression fittings | 0-5 VDC output | RS-232 digital interface | (RS-485)selectable. | Dwyer
Digital flow meter, 0-500 ml/min with LED display, 1/8" compression fittings, 0-5 VDC output, RS-232 digital interface, (RS-485)selectable.

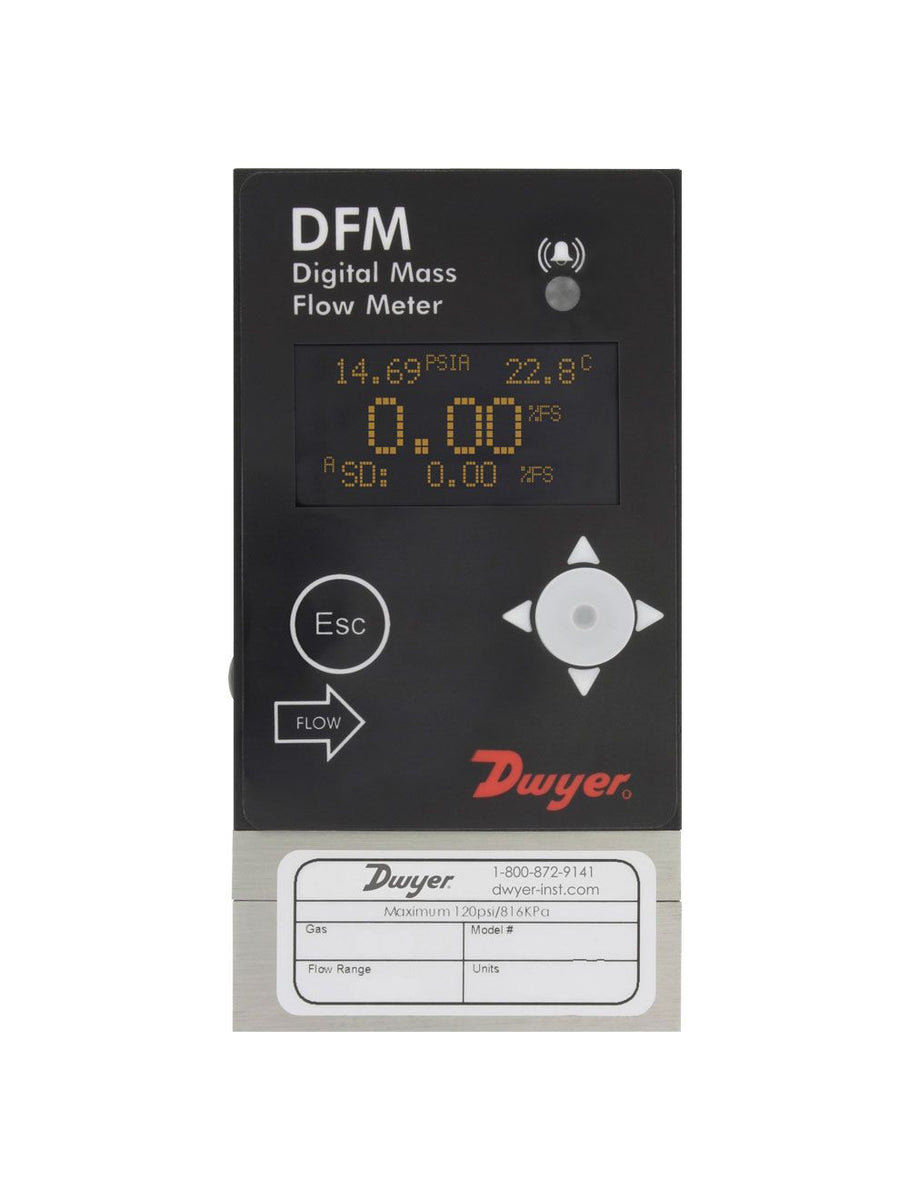

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DFM-32010-V-ALA2
Documents and manuals
Dwyer DFM-32010-V-ALA2 Documents
Overview
Details for DFM-32010-V-ALA2
See catalog product page for full listing
Digital flow meter | 0-500 ml/min with LED display | 1/8" compression fittings | 0-5 VDC output | RS-232 digital interface | (RS-485)selectable.
Series DFM Digital Flow Meter
Multi-Parameter, Multi-Gas, Field Configurable
The Series DFM Digital Flow Meter is the industry leader in the measurement ofmass and volumetric flow rates of process gases. Using the OLED/joystick interface,the flowmeter can measure up to 30 different gases. Simultaneous displays of massflow, volumetric flow, pressure and temperature parameters promote applications in avariety of industries. NIST traceable certification included.
Product Applications
- Gas flow measurement
- Operating pumps and valves
- Process equipment
- Scientific and analytical
- Bioreactors and surface depositions
- Gas sampling
- General manufacturing
- Quick (< 20ms) response time
- Multi-parameter functionality
- Multi-gas functionality
- Capable of storing up to 90 gases and 20 custom gas mixes
- Field configurable
- Modifiable outputs
- High, low or in-range alarms with preset action delay for mass flow, temperature andpressure
Specifications
- Series
- DFM Digital Flow Meter
- Category/Type
- Flow
- Type
- Mass Flowmeters and Controllers
- Series
- DFM Digital Flow Meter
- Service
- Clean; non-corrosive gases compatible with wetted parts.
- Wetted Materials
- 316 SS; 416 SS; high temperature polyamide; alumina ceramic;epoxy; silicone; glass; gold. FKM O-rings.
- Accuracy
- ±(0.5% of reading + 0.2% FS).
- Repeatability
- ±0.15% FS.
- Response Time
- 10 ms.
- Output
- 0-5 VDC; 0-10 VDC and 4-20 mA.
- Relay Rating
- Programmable solid state relay.
- Max. Particulate Size
- 20 microns.
- Temperature Limits
- 14 to 140°F (-10 to 60°C).
- Power Supply
- 9-26 VDC.
- Process Connections
- 1/8" compression fitting for flow rates ≤ 10 L/min; 1/4" for ≤ 50 L/min; 3/8" for ≤ 100 L/min.
- Display
- 2 x 16 character OLED (model selectable).
- Pressure Limits
- 120 psig (8.27 bar).
- Leak Integrity
- 1 x 10-9 sccs of helium.
- Weight
- DFM-01/50: 0.85 lbs (0.4 kg); DFM-51/56: 1.15 lbs (0.52 kg).
- Agency Approvals
- CE.
