DFC-48010-V-ALA2 | Digital flow controller | 0-10 l/min with LED display | 1/8" compression fittings | 0-5 VDC output | RS-232 digital interface | (RS-485)selectable. | Dwyer
Digital flow controller, 0-10 l/min with LED display, 1/8" compression fittings, 0-5 VDC output, RS-232 digital interface, (RS-485)selectable.

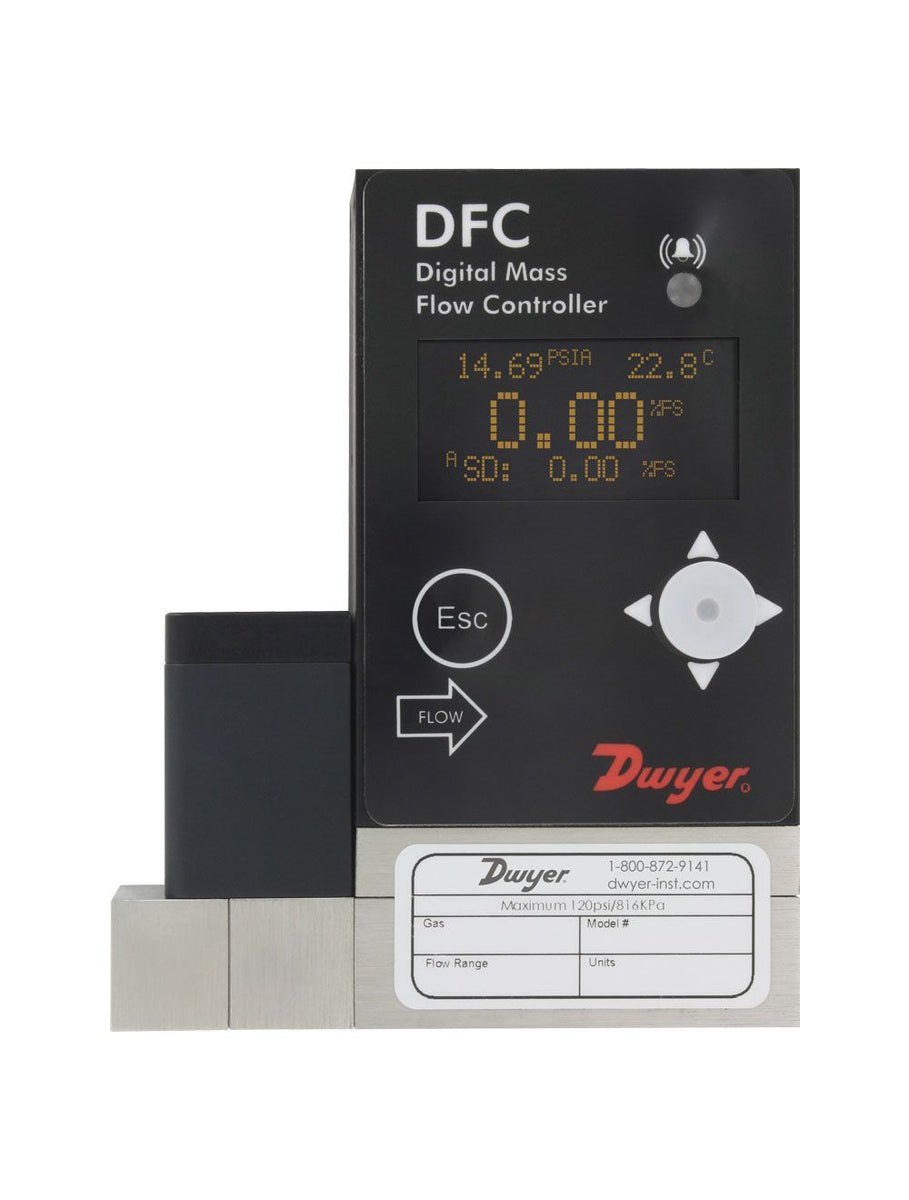

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DFC-48010-V-ALA2
Documents and manuals
Dwyer DFC-48010-V-ALA2 Documents
Overview
Details for DFC-48010-V-ALA2
See catalog product page for full listing
Digital flow controller | 0-10 l/min with LED display | 1/8" compression fittings | 0-5 VDC output | RS-232 digital interface | (RS-485)selectable.
Series DFC Digital Flow Controller
Multi-Parameter, Multi-Gas, Field-Configurable
The Series DFC Digital Flow Controller combines a straight tube sensor witha restrictor flow element to provide accurate readings and control. Simultaneousdisplays of mass flow, volumetric flow, pressure and temperature parameters promoteapplications in a variety of industries. NIST traceable certification included.
Product Applications
- Gas flow measurement
- Gas flow control
- Operating pumps and valves
- Process equipment
- Vacuum process
- Scientific and analytical
- Bioreactors and surface depositions
- Able to quickly see changes due to fast <20 ms response rate
- Simple setup using configuration/calibration software
- Works for a variety of application with up to 90 different user selectable gases andgas mixes
- Meet application requirements with high accuracy and repeatability
- Minimize downtime with self-diagnostics through status LED or OLED indication
Specifications
- Series
- DFC Digital Flow Controller
- Category/Type
- Flow
- Type
- Mass Flowmeters and Controllers
- Series
- DFC Digital Flow Controller
- Service
- Clean; non-corrosive gases compatible with wetted parts.
- Wetted Materials
- 316 SS; 416 SS; high temperature polyamide; alumina ceramic;epoxy; silicone; glass; gold. FKM O-rings.
- Accuracy
- ±(0.5% of reading + 0.2% FS).
- Repeatability
- ±0.2% FS.
- Response Time
- 150 ms.
- Output
- 0-5 VDC; 4-20 mA and 0-10 VDC.
- Relay Rating
- Programmable solid state relay.
- Max. Particulate Size
- 20 microns.
- Temperature Limits
- 14 to 140°F (-10 to 60°C).
- Power Supply
- 12-26 VDC.
- Process Connections
- 1/8" compression fitting for flow rates = 10 L/min (-005; -010); 1/4" for = 50 L/min (-050); 3/8" for = 100 L/min (-100).
- Pressure Limits
- 120 psig (8.27 bar).
- Leak Integrity
- 1 x 10-9 sccs of helium.
- Display
- 2 x 16 character OLED.
- Weight
- DFC-01/50: 1.40 lbs (0.635 kg); DFC-51/56: 1.66 lbs (0.755 kg).
- Agency Approvals
- CE.
